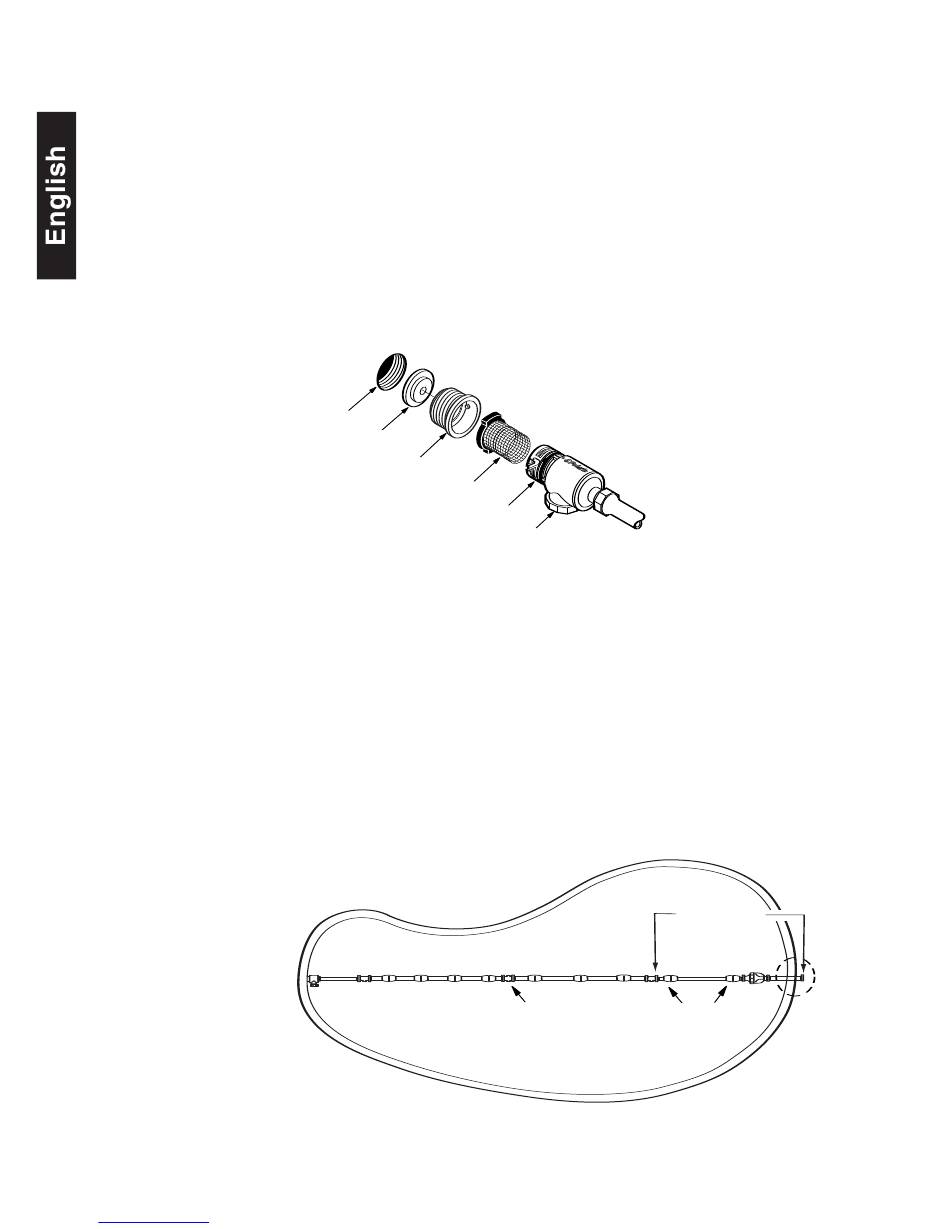

Install the Universal Wall Fitting
Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2" female
pipe fitting.
1. Turn on the filtration pump and flush out the plumbing line.Turn pump off.
2. Remove the UWF from the Quick Disconnect and screw the UWF with the blue restrictor
disk into the return opening.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.
Return Line
Restrictor Disc
Universal Wall Fitting
Adjust Feed Hose To Fit Pool Length
Measure the deepest part of the pool. Cut leader hose, from end that attaches to feed hose, so
length is equal to the greatest depth of the pool.
Attach leader hose to feed hose and connect hose to the pool wall at the return line. Extend
hose to farthest point of pool. The hose end must be within 6" – longer or shorter – of the
farthest point. See dotted circle.
Hose too long? Separate hose at center swivel. Cut equal amounts of the overage from
each 10-foot feed hose section.
Hose too short? Buy an additional feed hose section (part #9-100-3104), one swivel (part
#D20) and two hose nuts (part #D15) from an authorized Polaris dealer.
After adjusting hose, position hose floats as shown..
Return
Line
Feed Hose Floats
1.5 to 3' apart
manuals search engine
Filter Screen
Quick Disconnect
Pressure Relief Valve
Center
Swivel
www.polarispool.com
Leader Hose
Length = Max. Depth
Leader Hose Floats
2-3' apart
