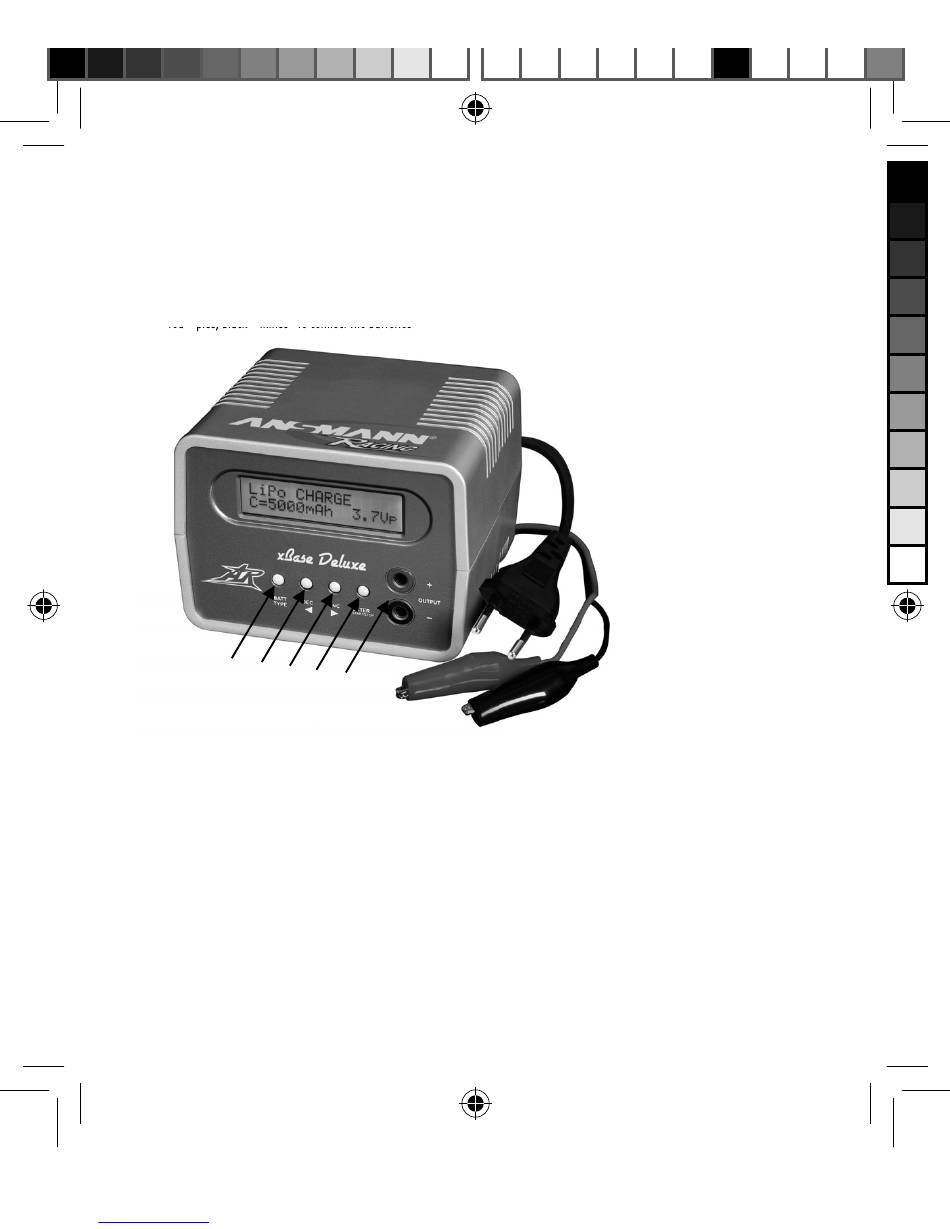

CONNECTIONS

1. Input clips (Crocodile clips)
red = plus, black = minus to connect to the 11 – 15 V DC power supply
2. Mains cable with Euro plug
to connect to a 230 V mains socket
3. Output sockets (Banana Sockets)
red = plus, black = minus to connect the batteries

LAYOUT

4. Button "BATT / TYPE"
To select the battery type; NiCd, NiMH, Li-Ion, Li-Po or Lead Acid
5. Button "DEC" (DECREASE)
To decrease or change the charge current, voltage and number of cells
6. Button "INC" (INCREASE)
To increase or change the charge current, voltage and number of cells
7. Button "ENTER / START / STOP"
To set the adjustments, to START / STOP the charge
4
