6. FUNCTION LIST

1. Input sensitivity adjust, GAIN
2. Input selector
3. LED indicator, PEAK
4. LED indicator, SP
5. LED indicator, PFL
6. Treble control, TREB
7. Prefader listening control, PFL
8. Midrange semiparametric frequency adjust, FREQ 28. Microphone input sensitivity switch, ATT
9. Midrange control, MID
10. Bass control, BASS
11. Channel gain, VOLUME
12. Space for identifying label
13. Line input, AUX 7
14. Talkover Recovery time control, TIME
15. Mains switch and indicator, POWER
16. LED VU Meter
17. Volume control OUTPUT 2, OUT 2
18. LED indicator, L+R
19. Left and Right signal sum, L+R
20. Volume control OUTPUT1, OUT 1

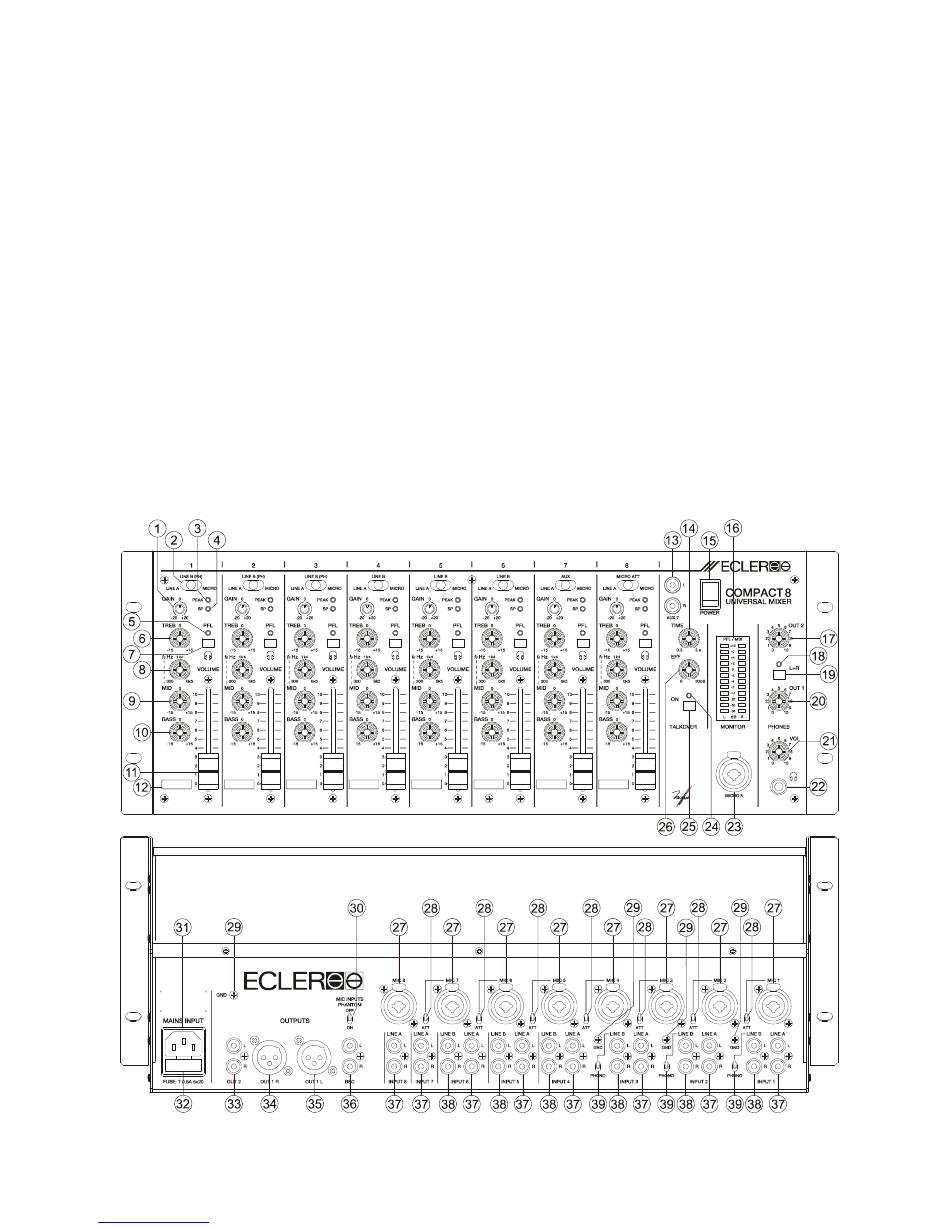

7. FUNCTION DIAGRAM

8
Downloaded from www.Manualslib.com manuals search engine
21. Headphones volume control, VOL
22. Stereo jack, headphones
23. Microphone balanced input, MICRO 8
24. LED indicator, TALKOVER ON
25. Talkover switch
26. Talkover effect control, EFF
27. Microphone balanced input, MIC
29. Ground pin, GND
30. Phantom switch, PHANTOM
31. Mains socket
32. Fuse holder
33. RCA output, OUT 2
34. Right channel balanced output, OUT1 R
35. Left channel balanced output, OUT1 L
36. Recording output, REC
37. Line input, LINE A
38. Line input, LINE B
39. Phono – line switch, PHONO – LINE B
