Block Diagram; Diagrama De Bloques; Diagramme Des Blocs; Blockschaltbild - Ecler COMPACT 8 Bedienungsanleitung

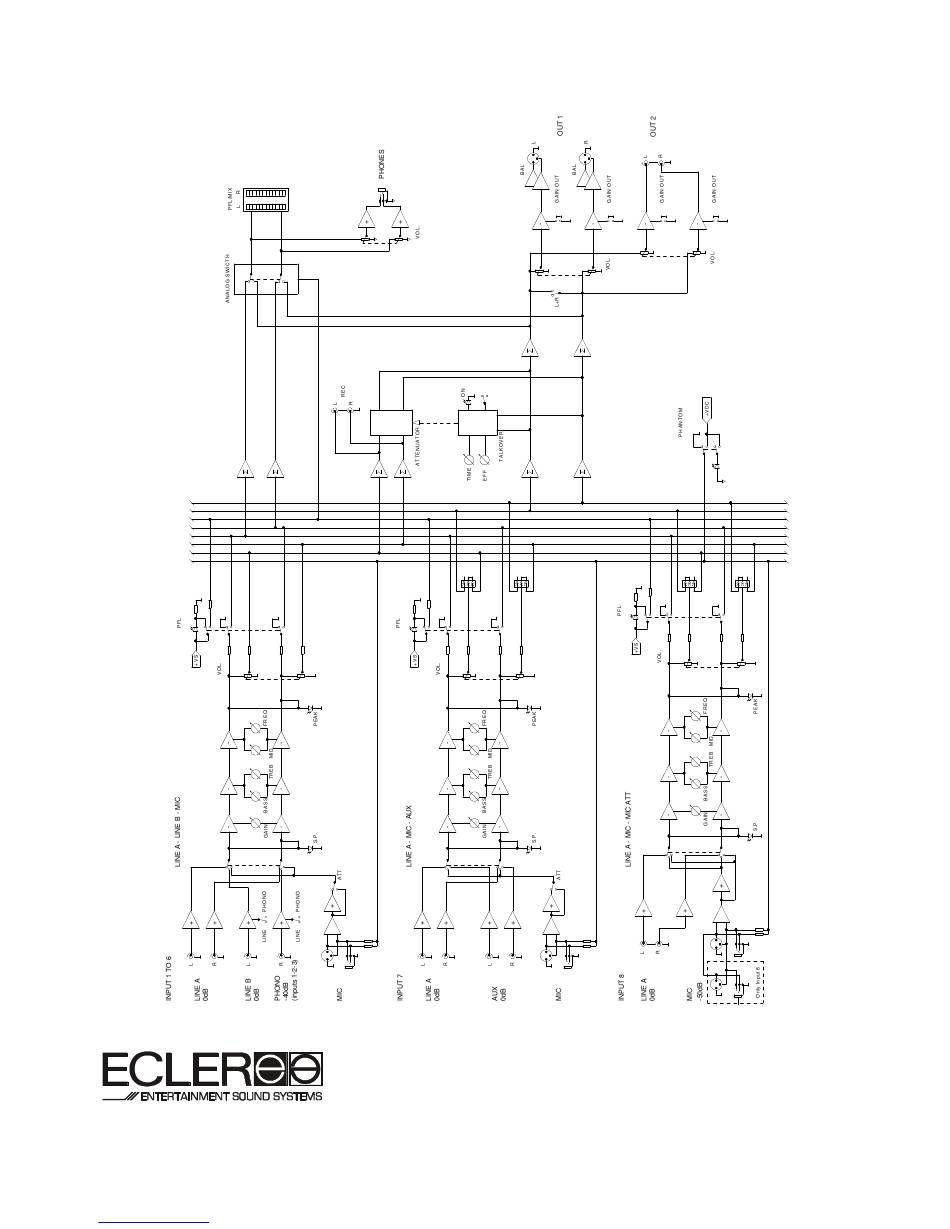

9.2. Block diagram

9.2. Diagramme des blocs

MIC-R
MIC-L
CTR-PFL
PFL-R
PFL-L
PGM-R
PGM-L
PHANTOM
50.0109.01.00
