INSTRUCTIONS FOR USE
SETTING UP THE TRISKELION
2.
Assemble the Triskelion
•
Stand the Triskelion upright and extend individual legs
to proper height. To extend legs:
a. Depress the pin release button at the head of the
pin and remove it from the leg (Figure 2).
b. Extend or retract legs to achieve the desired
height. Once height is achieved, align holes and
re-insert leg pins.
•
Double check all leg pins are locked in place, and the
Triskelion is at the correct height.
•
Move the Triskelion to the desired location and splay
legs over area to required spread width.
•
Thread the Hobble Strap through each Triskelion
foot, then clip the two halves together (Figure 3).
Tighten the loose end to remove any slack in the
strap. This prevents the legs from splaying outwards.
WARNING
Adjusting legs can be a pinch point hazard. Hold the
upper leg section rather than the lower leg, and keep
3.
Keep the Triskelion head level
•
length.
•
On uneven surfaces the legs can be different
lengths.
•
Adjust the length of one or more legs so the
Triskelion head is level and directly over the
opening or work area.
Figure 4: Flat surface
Figure 5: Sloping surface
Figure 6: Floor of different heights
(CONTINUED)
Depress and hold pin release button
7
USER MANUAL
TRISKELION
down to retract pin from leg

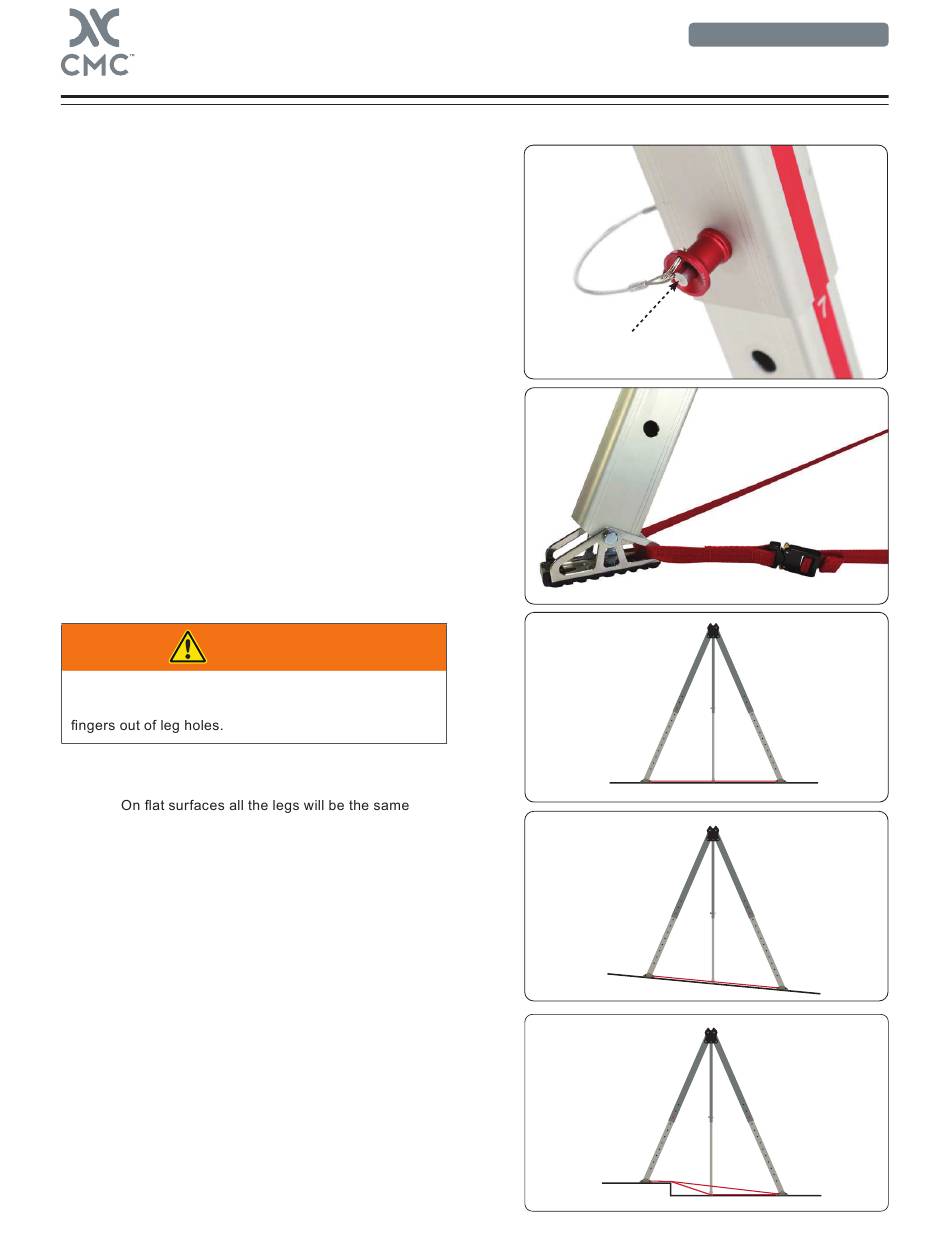

Figure 2
