Cookerhood mounting
1. Remove the packaging and check the appliance for any visible damage.

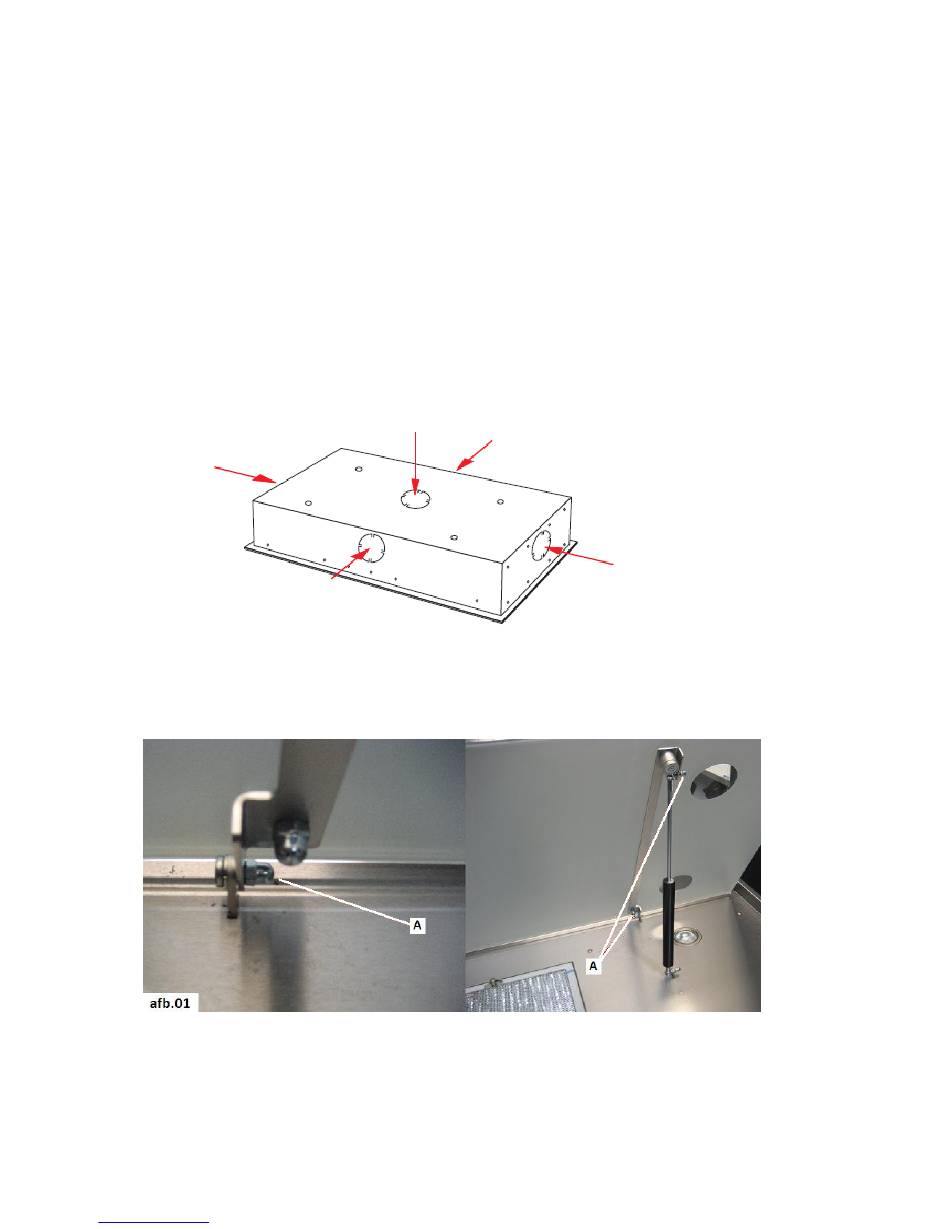

2. Dismount the glass by removing the nuts (A). (afb.01)
3. Open the service hatch by removing the 6 screws (B). (afb.02)
4. Remove the plug for the control (left cable). (afb.03)
5. Dismount the under plate by removing the screws (C). (afb.04)
6. Determine the centre of the hood over the stove. Use a plumb to mark the centre of
7. Use the empty body of the hood as a template to determine the place of the fitting
8. Drill 4 holes (4x M8) and install the plugs and bolts, let 20mm of thread stick out.
9. Before mounting the body connect the unit to the main power and ducting.
10. Mount the under plate and connect the plug for the control. Put the Service hatch
Downloaded from www.Manualslib.com
the unit on the ceiling.
holes.
5 possibilities for exhaust air connection (150mmØ)
back in place and mount the glass.
