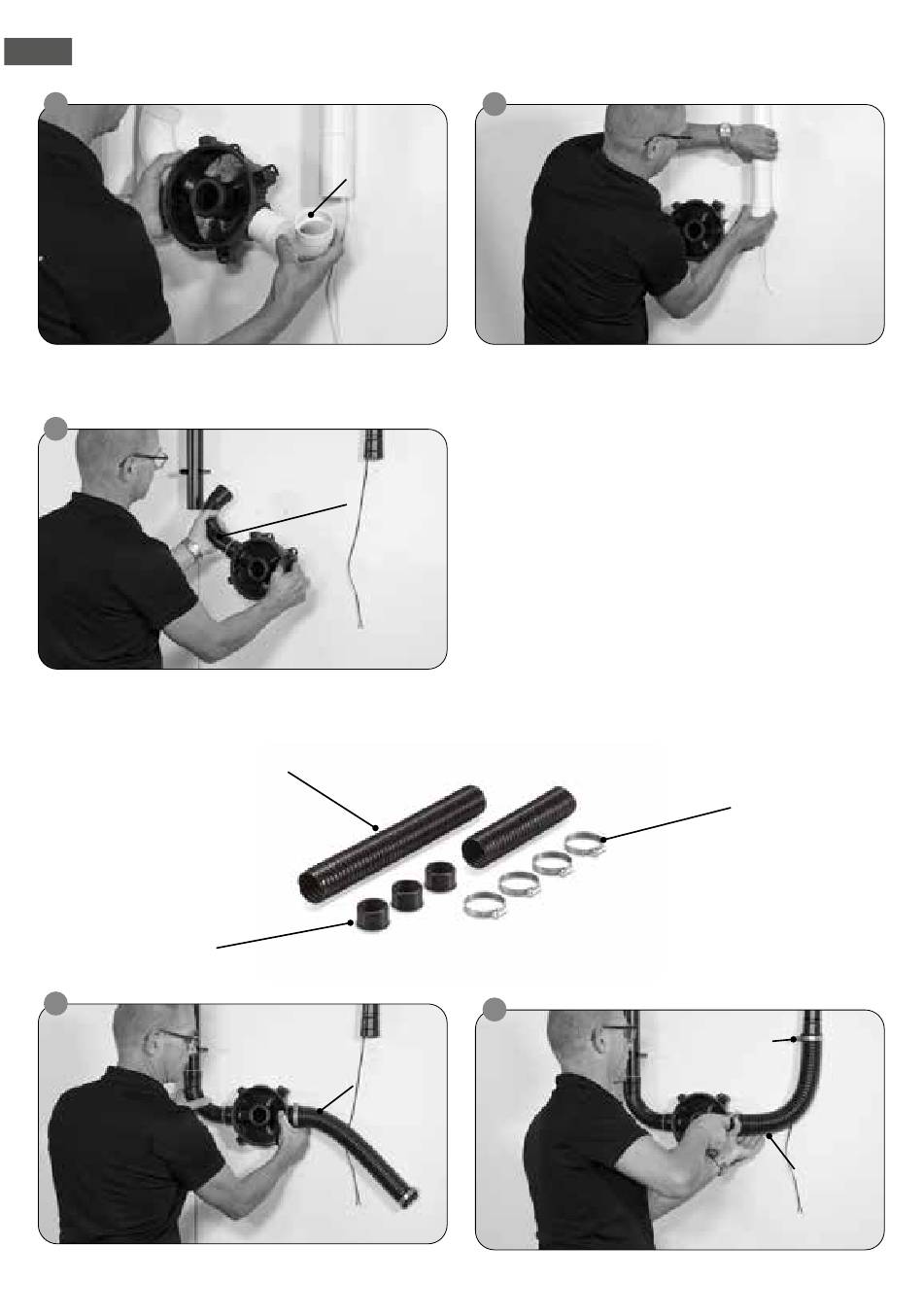

8b - Installation with Ø 44 mm ducting
1
Tip for easier installation
Use flexible hose installation kit (Ref. 11071181)
Flexible hoses
Adjustment muffs 40/50 mm
1
14
Ø 51 mm 90° long F-F
elbow - output side
Ø 44 mm 90° long F-F
elbow - input and output
sides
Flexible hose - input
and/or output sides
4
2
Compatible with
Ø 51 mm and Ø 44 mm
(with the supplied
adjustment muffs) ducting
Hose clamps
Hose clamps screwing
