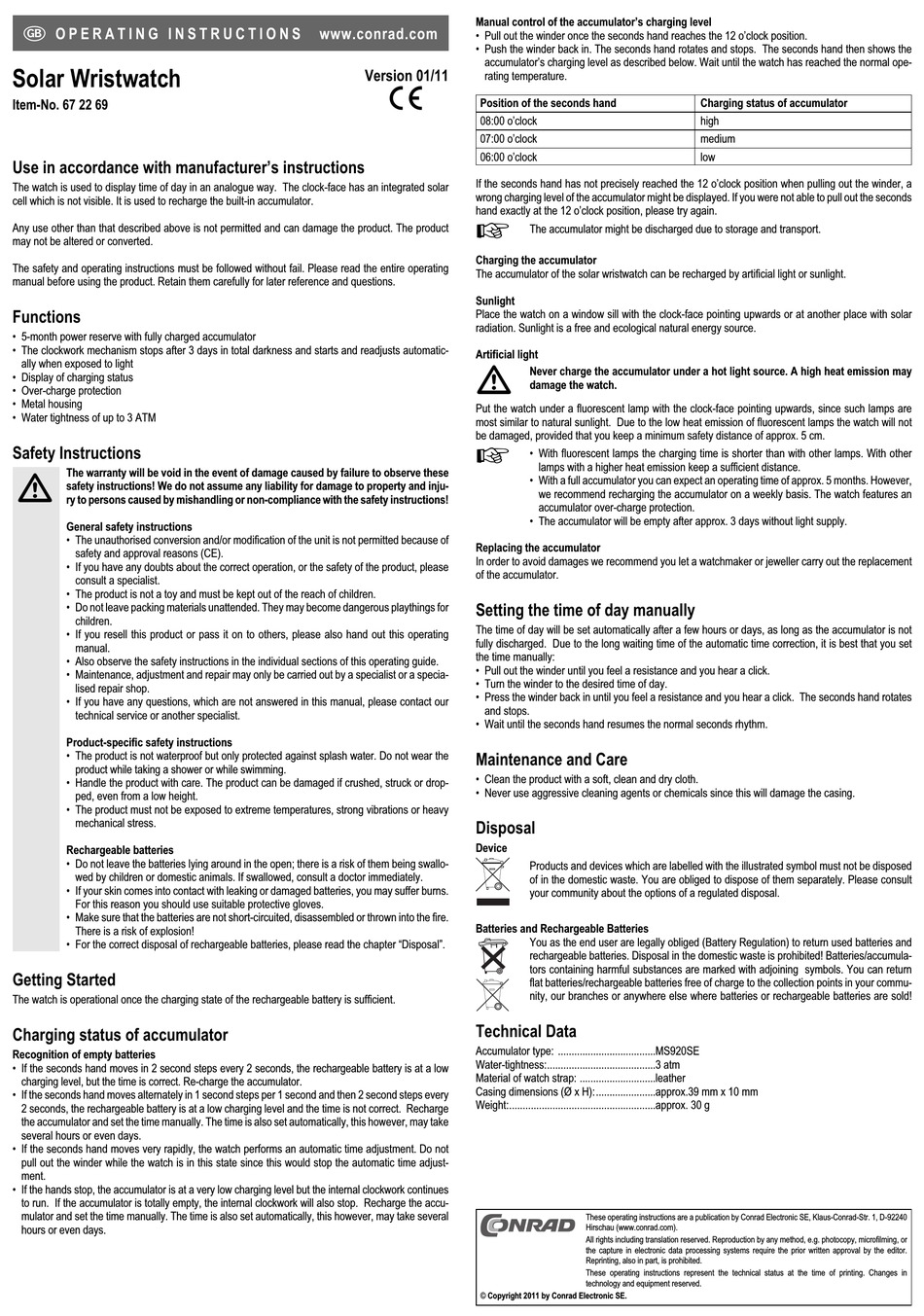

O P E R A T I N G I N S T R U C T I O N S
Solar Wristwatch
Item-No. 67 22 69
Use in accordance with manufacturer's instructions
The watch is used to display time of day in an analogue way. The clock-face has an integrated solar
cell which is not visible. It is used to recharge the built-in accumulator.
Any use other than that described above is not permitted and can damage the product. The product
may not be altered or converted.
The safety and operating instructions must be followed without fail. Please read the entire operating
manual before using the product. Retain them carefully for later reference and questions.
Functions
• 5-month power reserve with fully charged accumulator
• The clockwork mechanism stops after 3 days in total darkness and starts and readjusts automatic-
ally when exposed to light
• Display of charging status
• Over-charge protection
• Metal housing
• Water tightness of up to 3 ATM
Safety Instructions
The warranty will be void in the event of damage caused by failure to observe these
safety instructions! We do not assume any liability for damage to property and inju-
ry to persons caused by mishandling or non-compliance with the safety instructions!
General safety instructions
• The unauthorised conversion and/or modification of the unit is not permitted because of
safety and approval reasons (CE).
• If you have any doubts about the correct operation, or the safety of the product, please
consult a specialist.
• The product is not a toy and must be kept out of the reach of children.
• Do not leave packing materials unattended. They may become dangerous playthings for
children.
• If you resell this product or pass it on to others, please also hand out this operating
manual.
• Also observe the safety instructions in the individual sections of this operating guide.
• Maintenance, adjustment and repair may only be carried out by a specialist or a specia-
lised repair shop.
• If you have any questions, which are not answered in this manual, please contact our
technical service or another specialist.
Product-specific safety instructions
• The product is not waterproof but only protected against splash water. Do not wear the
product while taking a shower or while swimming.
• Handle the product with care. The product can be damaged if crushed, struck or drop-
ped, even from a low height.
• The product must not be exposed to extreme temperatures, strong vibrations or heavy
mechanical stress.
Rechargeable batteries
• Do not leave the batteries lying around in the open; there is a risk of them being swallo-
wed by children or domestic animals. If swallowed, consult a doctor immediately.
• If your skin comes into contact with leaking or damaged batteries, you may suffer burns.
For this reason you should use suitable protective gloves.
• Make sure that the batteries are not short-circuited, disassembled or thrown into the fire.
There is a risk of explosion!
• For the correct disposal of rechargeable batteries, please read the chapter "Disposal".
Getting Started
The watch is operational once the charging state of the rechargeable battery is sufficient.
Charging status of accumulator
Recognition of empty batteries
• If the seconds hand moves in 2 second steps every 2 seconds, the rechargeable battery is at a low
charging level, but the time is correct. Re-charge the accumulator.
• If the seconds hand moves alternately in 1 second steps per 1 second and then 2 second steps every
2 seconds, the rechargeable battery is at a low charging level and the time is not correct. Recharge
the accumulator and set the time manually. The time is also set automatically, this however, may take
several hours or even days.
• If the seconds hand moves very rapidly, the watch performs an automatic time adjustment. Do not
pull out the winder while the watch is in this state since this would stop the automatic time adjust-
ment.
• If the hands stop, the accumulator is at a very low charging level but the internal clockwork continues
to run. If the accumulator is totally empty, the internal clockwork will also stop. Recharge the accu-
mulator and set the time manually. The time is also set automatically, this however, may take several
hours or even days.
Manual control of the accumulator's charging level
www.conrad.com
• Pull out the winder once the seconds hand reaches the 12 o'clock position.
• Push the winder back in. The seconds hand rotates and stops. The seconds hand then shows the
accumulator's charging level as described below. Wait until the watch has reached the normal ope-
Version 01/11
rating temperature.
°
Position of the seconds hand
08:00 o'clock
07:00 o'clock
06:00 o'clock
If the seconds hand has not precisely reached the 12 o'clock position when pulling out the winder, a
wrong charging level of the accumulator might be displayed. If you were not able to pull out the seconds
hand exactly at the 12 o'clock position, please try again.
Charging the accumulator
The accumulator of the solar wristwatch can be recharged by artificial light or sunlight.
Sunlight
Place the watch on a window sill with the clock-face pointing upwards or at another place with solar
radiation. Sunlight is a free and ecological natural energy source.
Artificial light
Put the watch under a fluorescent lamp with the clock-face pointing upwards, since such lamps are
most similar to natural sunlight. Due to the low heat emission of fluorescent lamps the watch will not
be damaged, provided that you keep a minimum safety distance of approx. 5 cm.
Replacing the accumulator
In order to avoid damages we recommend you let a watchmaker or jeweller carry out the replacement
of the accumulator.
Setting the time of day manually
The time of day will be set automatically after a few hours or days, as long as the accumulator is not
fully discharged. Due to the long waiting time of the automatic time correction, it is best that you set
the time manually:
• Pull out the winder until you feel a resistance and you hear a click.
• Turn the winder to the desired time of day.
• Press the winder back in until you feel a resistance and you hear a click. The seconds hand rotates
and stops.
• Wait until the seconds hand resumes the normal seconds rhythm.
Maintenance and Care
• Clean the product with a soft, clean and dry cloth.
• Never use aggressive cleaning agents or chemicals since this will damage the casing.
Disposal
Device
Batteries and Rechargeable Batteries
Technical Data
Accumulator type: ....................................MS920SE
Water-tightness:........................................3 atm
Material of watch strap: ............................leather
Casing dimensions (Ø x H):......................approx.39 mm x 10 mm
Weight:......................................................approx. 30 g
© Copyright 2011 by Conrad Electronic SE.
Charging status of accumulator
high
medium
low
The accumulator might be discharged due to storage and transport.
Never charge the accumulator under a hot light source. A high heat emission may
damage the watch.
• With fluorescent lamps the charging time is shorter than with other lamps. With other
lamps with a higher heat emission keep a sufficient distance.
• With a full accumulator you can expect an operating time of approx. 5 months. However,
we recommend recharging the accumulator on a weekly basis. The watch features an
accumulator over-charge protection.
• The accumulator will be empty after approx. 3 days without light supply.
Products and devices which are labelled with the illustrated symbol must not be disposed
of in the domestic waste. You are obliged to dispose of them separately. Please consult
your community about the options of a regulated disposal.
You as the end user are legally obliged (Battery Regulation) to return used batteries and
rechargeable batteries. Disposal in the domestic waste is prohibited! Batteries/accumula-
tors containing harmful substances are marked with adjoining symbols. You can return
flat batteries/rechargeable batteries free of charge to the collection points in your commu-
nity, our branches or anywhere else where batteries or rechargeable batteries are sold!
These operating instructions are a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or
the capture in electronic data processing systems require the prior written approval by the editor.
Reprinting, also in part, is prohibited.
These operating instructions represent the technical status at the time of printing. Changes in
technology and equipment reserved.
