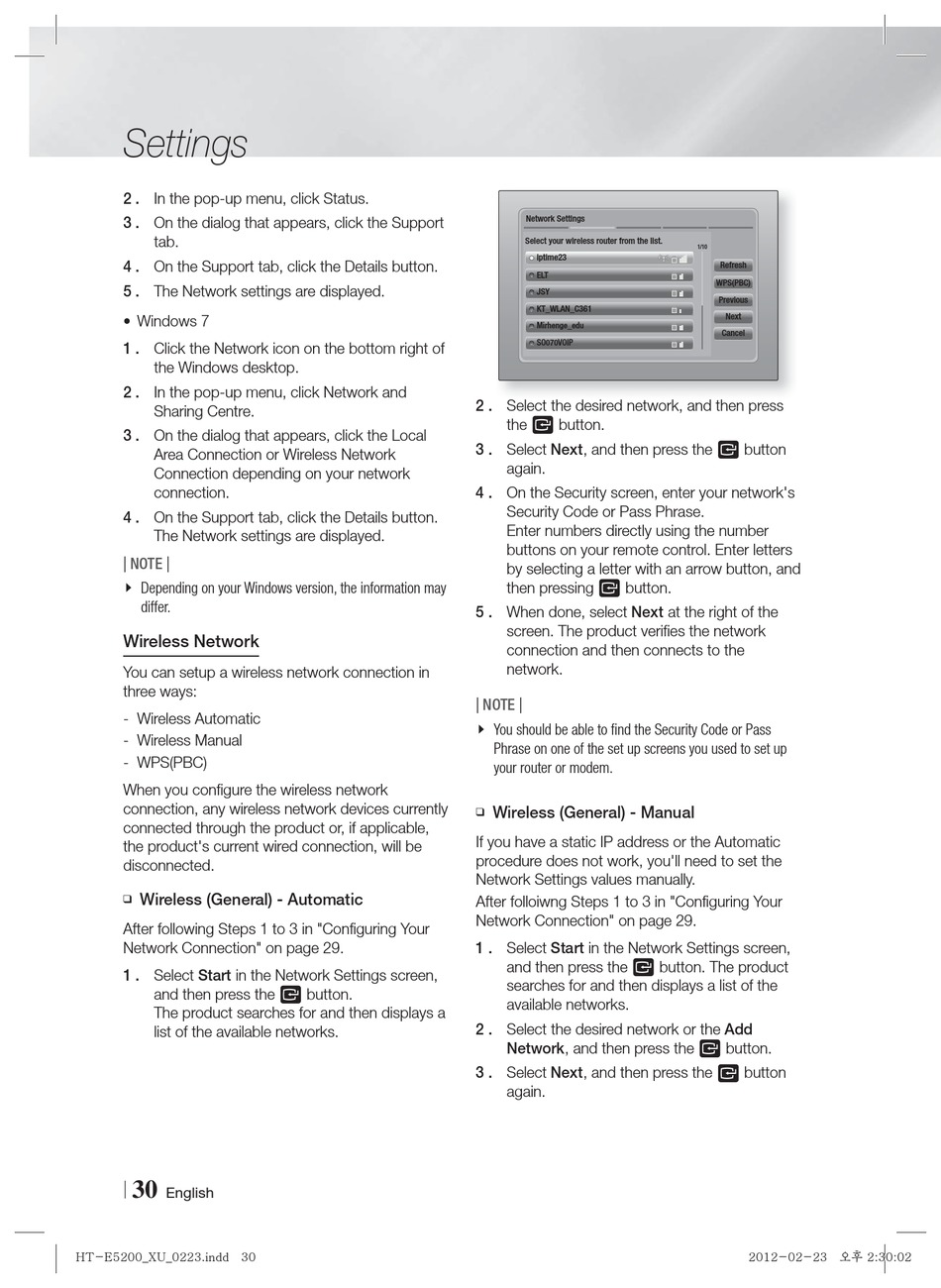

Samsung HT-E5200 Bedienungsanleitung Seite 30

Settings
2 . In the pop-up menu, click Status.
3 . On the dialog that appears, click the Support
tab.
4 . On the Support tab, click the Details button.
5 . The Network settings are displayed.
• Windows 7
1 . Click the Network icon on the bottom right of
the Windows desktop.
2 . In the pop-up menu, click Network and
Sharing Centre.
3 . On the dialog that appears, click the Local
Area Connection or Wireless Network
Connection depending on your network
connection.
4 . On the Support tab, click the Details button.
The Network settings are displayed.
| NOTE |
\ Depending on your Windows version, the information may
differ.
Wireless Network
You can setup a wireless network connection in
three ways:
- Wireless Automatic
- Wireless Manual
- WPS(PBC)
When you configure the wireless network
connection, any wireless network devices currently
connected through the product or, if applicable,
the product's current wired connection, will be
disconnected.
K
Wireless (General) - Automatic
After following Steps 1 to 3 in "Configuring Your
Network Connection" on page 29.
1 . Select Start in the Network Settings screen,
and then press the E button.
The product searches for and then displays a
list of the available networks.
30
|
English
HT-E5200_XU_0223.indd 30 HT-E5200_XU_0223.indd 30
Network Settings
Select your wireless router from the list.
iptime23
ELT
JSY
KT_WLAN_C361
Mirhenge_edu
SO070VOIP
2 . Select the desired network, and then press
the E button.
3 . Select Next, and then press the E button
again.
4 . On the Security screen, enter your network's
Security Code or Pass Phrase.
Enter numbers directly using the number
buttons on your remote control. Enter letters
by selecting a letter with an arrow button, and
then pressing E button.
5 . When done, select Next at the right of the
screen. The product verifies the network
connection and then connects to the
network.
| NOTE |
\ You should be able to find the Security Code or Pass
Phrase on one of the set up screens you used to set up
your router or modem.
K
Wireless (General) - Manual
If you have a static IP address or the Automatic
procedure does not work, you'll need to set the
Network Settings values manually.
After folloiwng Steps 1 to 3 in "Configuring Your
Network Connection" on page 29.
1 . Select Start in the Network Settings screen,
and then press the E button. The product
searches for and then displays a list of the
available networks.
2 . Select the desired network or the Add
Network, and then press the E button.
3 . Select Next, and then press the E button
again.
1/10
Refresh
WPS(PBC)
Previous
Next
Cancel
