4. OPERATING INSTRUCTION

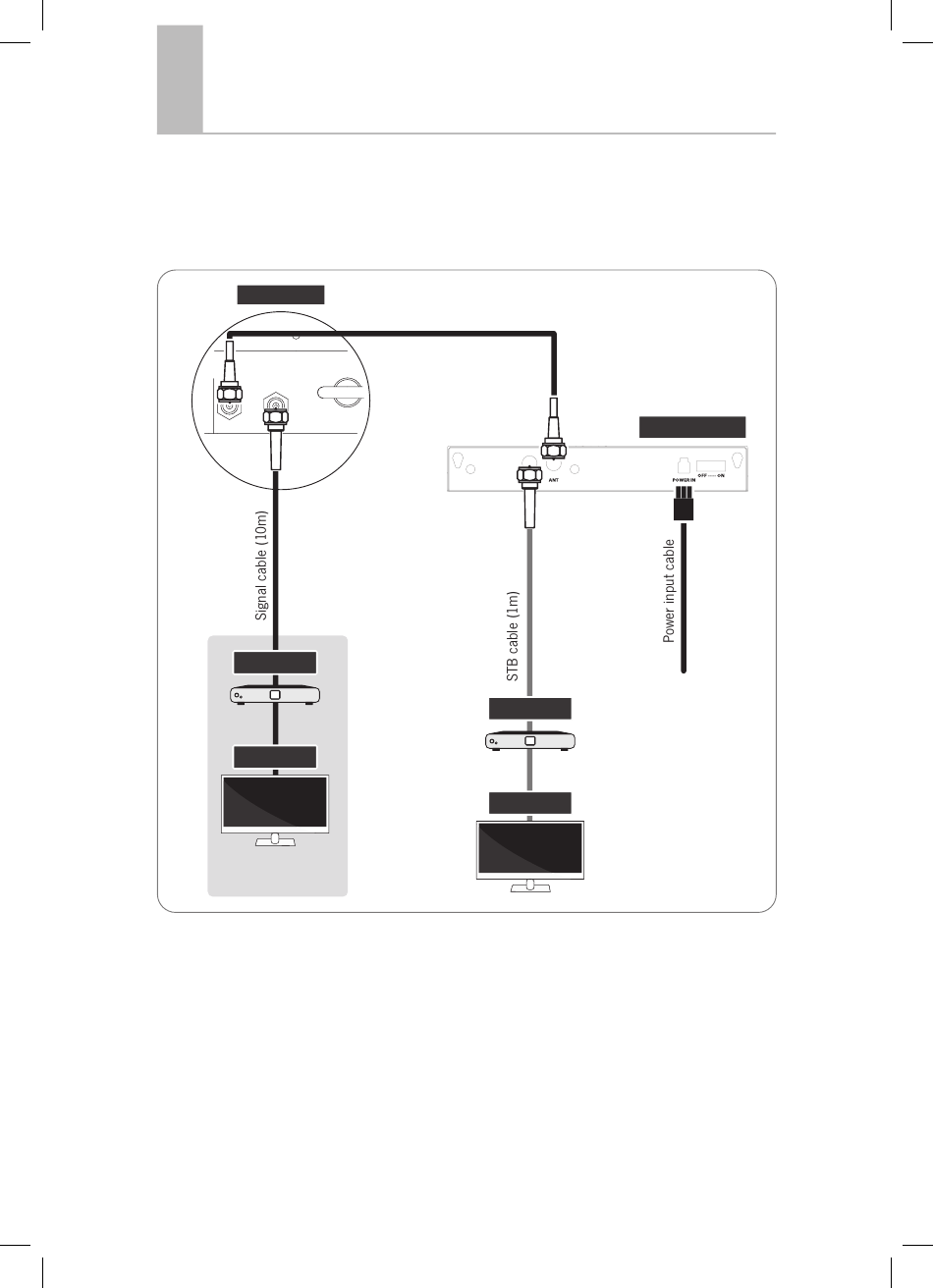

4-1. CONNECTION DIAGRAM

MAIN UNIT
STB
TV
• Extra connection
for twin outputs
• There is one cable connection from the main unit to the controller
• Use signal cable to connect the controller and the cable running out from the
main unit
• Use STB cable (the shortest cable) to connect the controller and STB
• For automatic satellite search, first [Contoller] output should be connected to the
controller. Second [Receiver] output should be connected to second STB directly
• Please use the correct cable for the job
• Please ensure the provided cables are used and not modified in anyway
Signal cable (10m)
STB
TV
23
CONTROLLER
