Installation and care instructions
GB
We have put together the most important product information
to enable you to benefit from the high degree of functionality and the
first class comfort provided by BLANCO taps.

Parts list

BLANCOFILO-A HD /
BLANCOFINESS-A HD
Lever
1 1
Screw cover / Fixing Screw
2 2
Cartridge retaining ring
3 3
4 4 Cartridge
5 5 Outer body with spout
Flow Straighter
6 6
Turning handle cut-off valve
7 7
Screw cut-off valve
8 8
9 9 Cap cut-off valve
10 10 Valve
11 11 Body sleeve
Base Ring
12 12
Fixing kit
13 13
14 14 Flexi hose, 1 pair
15 15 Connecting hose
16 16 Connection fitting

Technical data

Use
• Pressurised hot water tank and instantaneous water
heater
• Not suitable for low pressure hot water tank/hot
water tank
• Dishwasher/washing machine can be connected
Operating pressure
• Min. 0.5 bar
• Max. 10.0 bar
Temperature
• Max. 70° C
Note
pressure differences between cold and warm water
connection should be less than 3 bar otherwise the
mixing ratio deviates from the lever position.
Symbols
right wrong
Installation
Illustrations
1 Tap hole: 35 mm
2 -
Flush the pipe work to remove foreign debris from
5
the system. When the tap has been connected
check for leaks,movement and flow rate/pattern.
Recommendation: fit dirt filter
6
-
7 11
further illustrations on the back fold-out flap
12 - 16
Rinse perlator/ jet regulator
17
When tap has been fitted check:
tightness, movement, full jet of water
Care
Please note the following advice and the
illustrations on the back fold-out flap.
Illustrations
-
18 20
21 - 22
-
23 24
Important

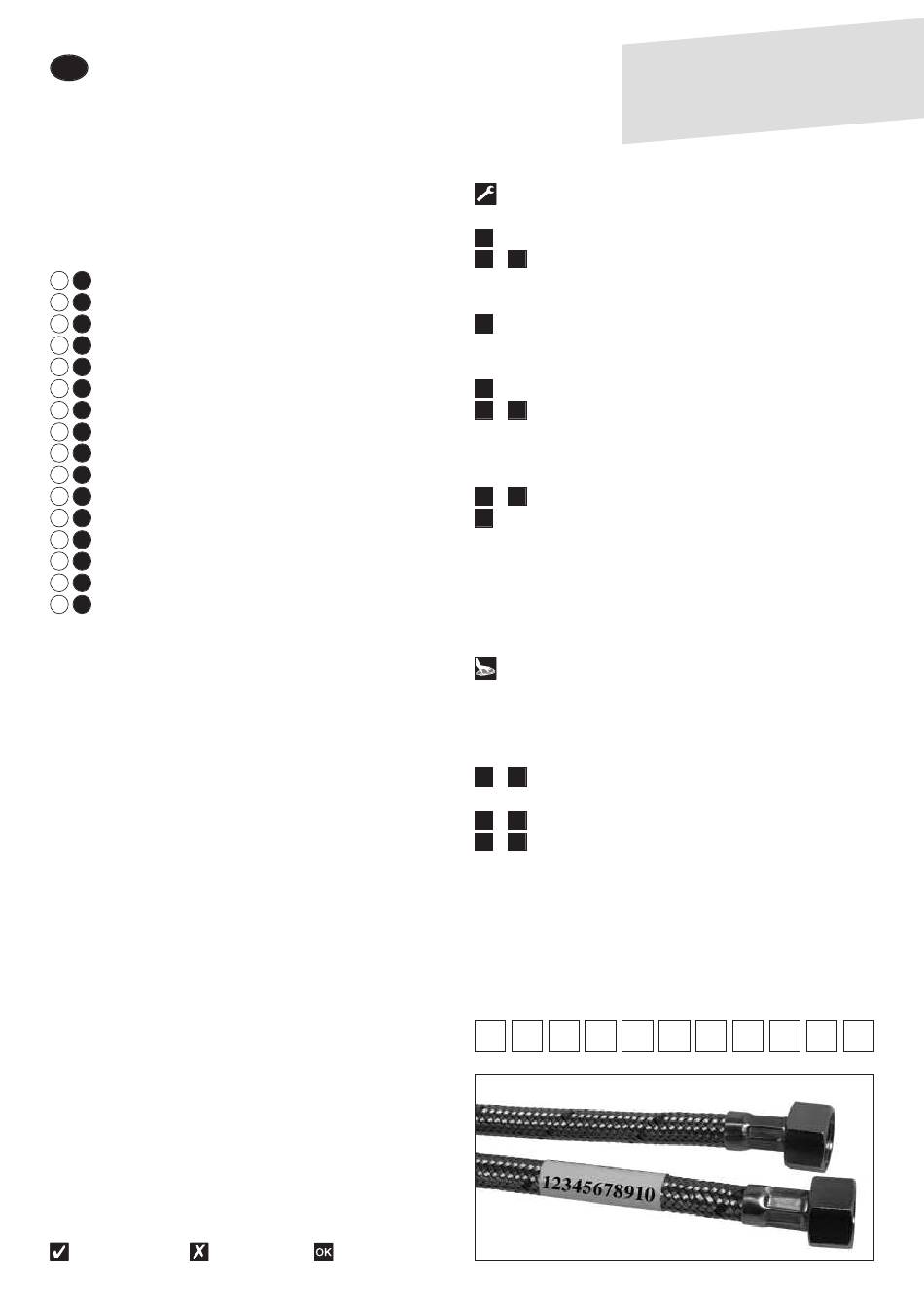

in the event of a query, please enter the 11-digit Article
Number (see wrapper on the cold water hose of your
tap) .
Example
recommended
th is B L A N C O
4 Attach tap
NOTE: don't forget the seal between tap
and supporting surface!
Connect flexi hoses
Connection dishwasher/washing machine
Use soft (microfibre) cloth and mild cleaning
agent
Take care with hard objects
Cleaning the perlator/ jet regulator with vinegar
n s o n b u y in g
