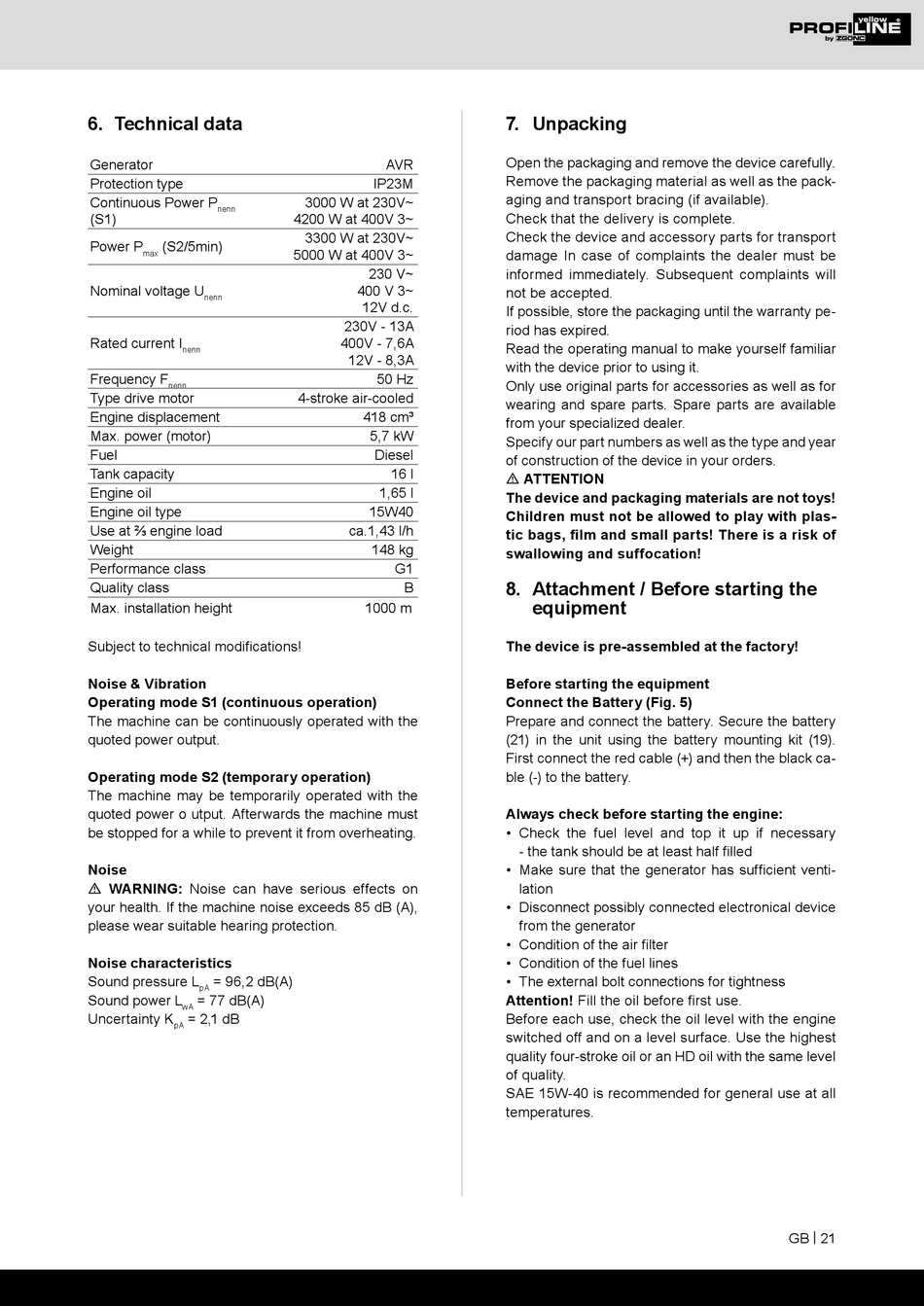

6. Technical data

Generator
Protection type
Continuous Power P
nenn
(S1)
Power P (S2/5min)
max
Nominal voltage U
nenn
Rated current I
nenn
Frequency F
nenn
Type drive motor
Engine displacement
Max. power (motor)
Fuel
Tank capacity
Engine oil
Engine oil type
Use at ⅔ engine load
Weight
Performance class
Quality class
Max. installation height
Subject to technical modifications!
Noise & Vibration
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power o utput. Afterwards the machine must
be stopped for a while to prevent it from overheating.
Noise
m WARNING: Noise can have serious effects on
your health. If the machine noise exceeds 85 dB (A),
please wear suitable hearing protection.
Noise characteristics
Sound pressure L = 96,2 dB(A)
pA
Sound power L = 77 dB(A)
wA
Uncertainty K = 2,1 dB
pA
AVR
IP23M
3000 W at 230V~
4200 W at 400V 3~
3300 W at 230V~
5000 W at 400V 3~
230 V~
400 V 3~
12V d.c.
230V - 13A
400V - 7,6A
12V - 8,3A
50 Hz
4-stroke air-cooled
418 cm³
5,7 kW
Diesel
16 l
1,65 l
15W40
ca.1,43 l/h
148 kg
G1
B
1000 m

7. Unpacking

Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage In case of complaints the dealer must be
informed immediately. Subsequent complaints will
not be accepted.
If possible, store the packaging until the warranty pe-
riod has expired.
Read the operating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
Specify our part numbers as well as the type and year
of construction of the device in your orders.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
8. Attachment / Before starting the
equipment
The device is pre-assembled at the factory!
Before starting the equipment
Connect the Battery (Fig. 5)
Prepare and connect the battery. Secure the battery
(21) in the unit using the battery mounting kit (19).
First connect the red cable (+) and then the black ca-
ble (-) to the battery.
Always check before starting the engine:
• Check the fuel level and top it up if necessary
- the tank should be at least half filled
• Make sure that the generator has sufficient venti-
lation
• Disconnect possibly connected electronical device
from the generator
• Condition of the air filter
• Condition of the fuel lines
• The external bolt connections for tightness
Attention! Fill the oil before first use.
Before each use, check the oil level with the engine
switched off and on a level surface. Use the highest
quality four-stroke oil or an HD oil with the same level
of quality.
SAE 15W-40 is recommended for general use at all
temperatures.
GB | 21
