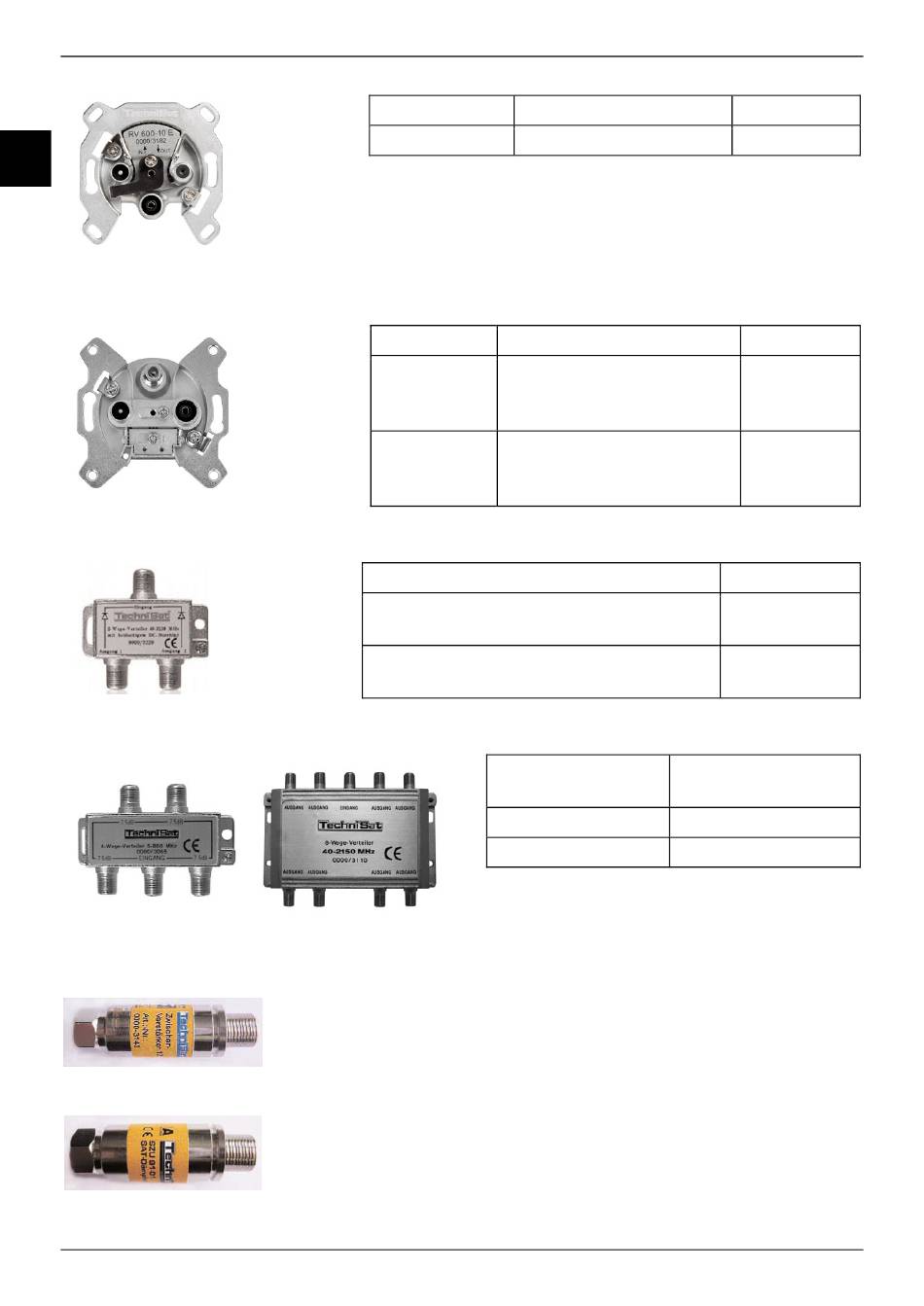

Single cable wall socket with integrated electronics
EN
Single cable terminal socket (end socket)
2-way distributor (with 2x DC bypass)
Multi-way distributor with all sides DC-Thru, decoupled with diode
Intermediate amplifier with 20 dB gain
Attenuator 10dB
Further accessories (especially for trunk lines) can be found in chapter 5.
TechniPro
RV 600-10E
The RV 600-10E features an integrated electronic system
which will separate a wrongly configured receiver from
the distribution system to prevent disturbance of other
subscribers.
TechniPro
SV 600
SVT 500
with integrated diodes
(for 2-star distribution with SVT500)
without integrated diodes
(application before a distribution)
Art. No. 0000/3143
Application in case of an already decreased signal level.
Art. No. 0000/3144
Attenuates overly large input levels into the TechniRouter or
receiver.
30
Tap loss
10 dB
with integrated diode
(at the end of a series
distribution)
without integrated diode
(after a distributor
with diodes)
Multi-way
distributor
4-way
8-way
Application if already installed cable
requires partial star-shaped distribution
with sockets SVT 500.
Art. No.
0000/3182
Art. No.
0000/3075
0000/3175
Art. No.
0000/3220
0001/3220
Art. No.
0000/3111
0000/3110
