3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

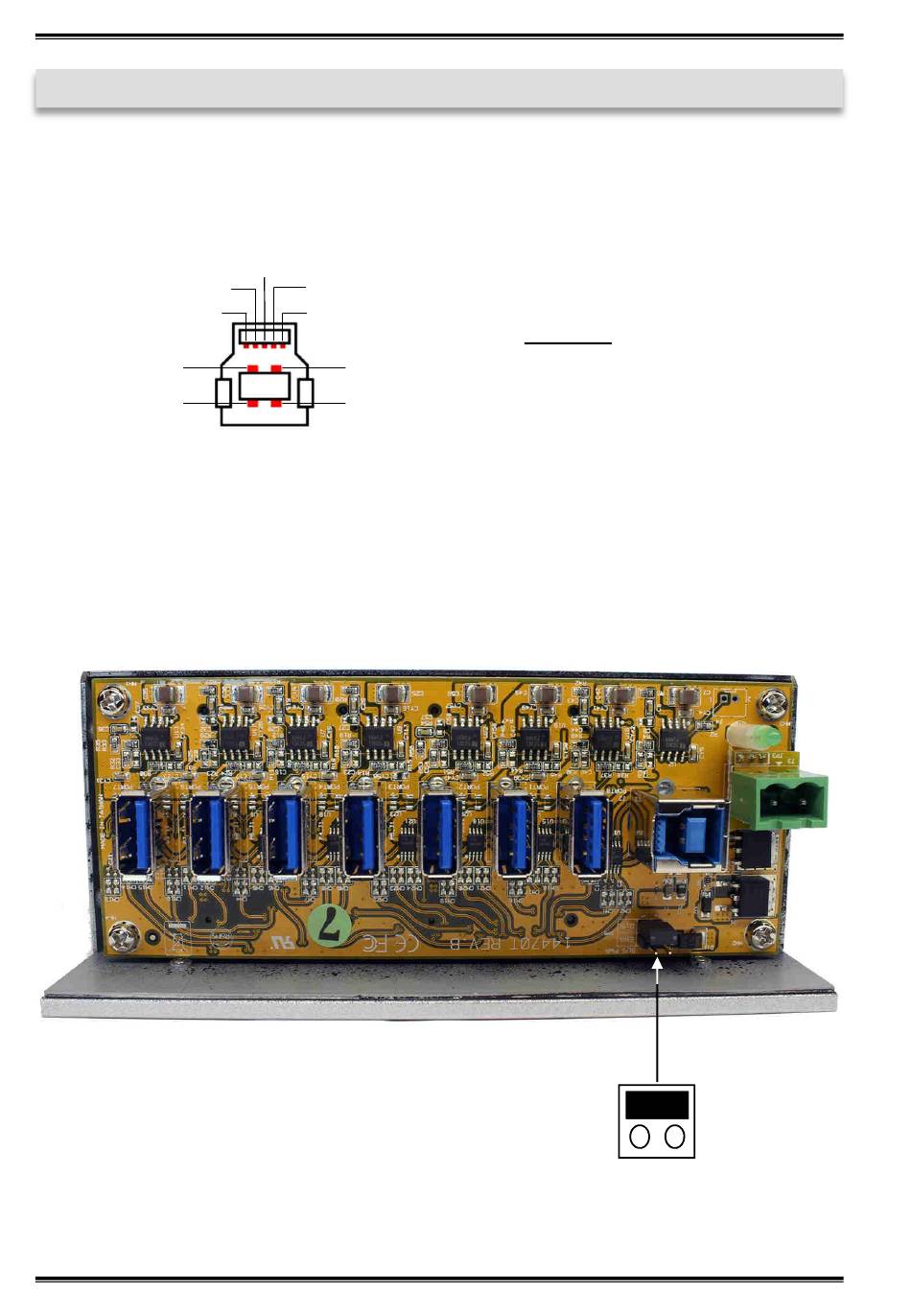

3.3 Jumper Settings

The EX-1187HMVS-WT comes with the setting Self-Power. You also have the possi-
bility the EX-1187HMVS-WT to supply Bus-Power. For this you open the case with the
four screws on both sides. Then you must set the jumper JP5 from DIS (Disable) to
ENA (Enable). See the following picture.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attention!
Never plug in with force
or in wrong direction.
DIS
ENA
10
EX-1187HMVS-WT
JP5
