Signal-Inputs

Low-level and high-level signal can be processed.
•
• Low-level signal (Cynch-input) is best audio quality. If your car-radio has an preamp output it`s advisable to use low-level input!
•
When there is no preamp output at your car-radio, you can also use the high-level input. High-level input should be connected
with to car-radios loudspeaker output.
Lowlevel-input rear-channel (for rear-speakers).
Lowlevl output for connecting a second amplifier.
Lowlevelinput front-channel (for front-speakers).

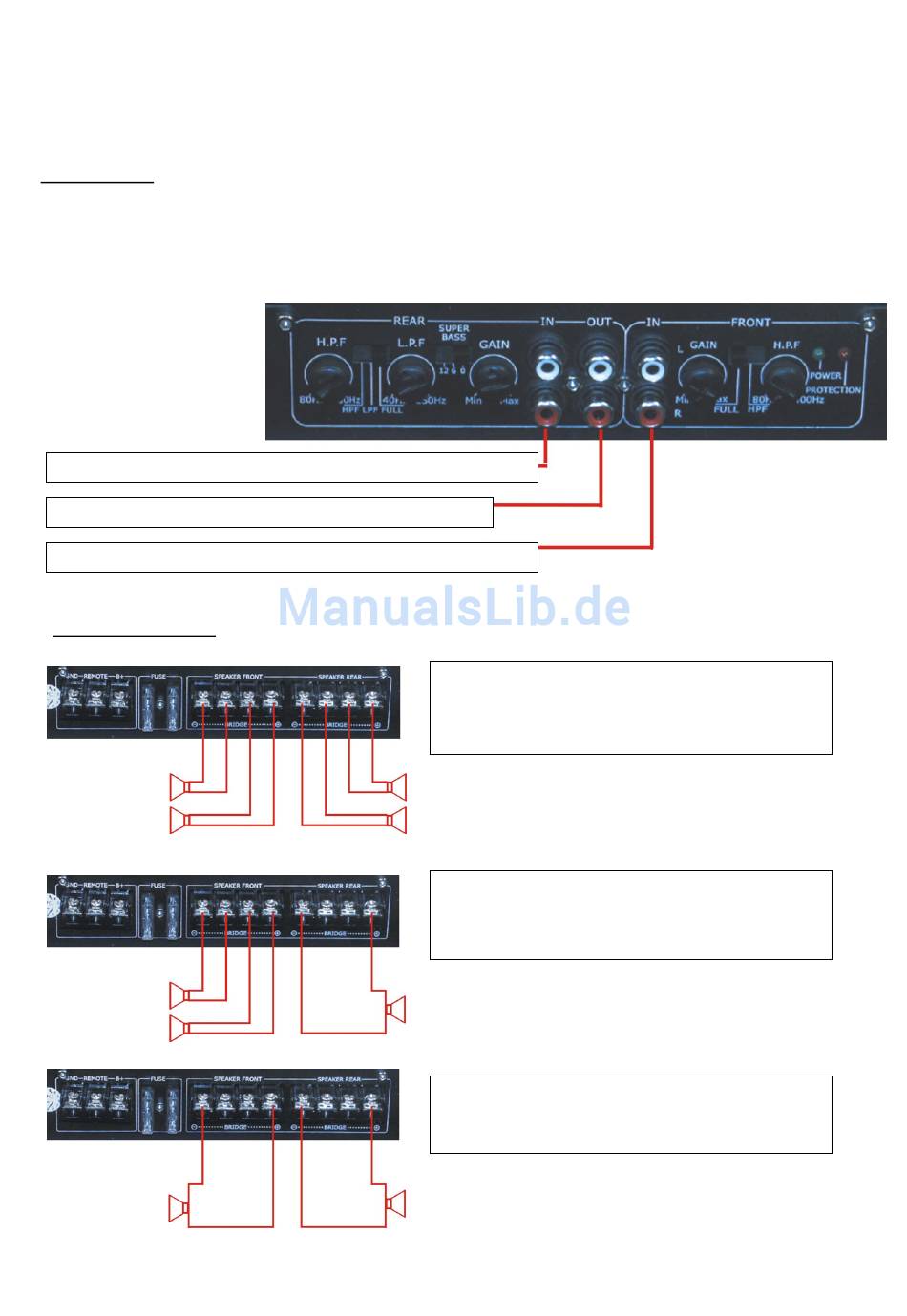

Speaker connection
4- channal stereo
For 4-channel stereo take four speakers with 4-8 Ω impedance
as shown in the left picture.
Take care of speakers polarity.
3- channel TriMode
For 3- channel mono take two speakers with 4-8 Ω impedance
(front speakers), and one speaker (subwoofer) with 4-8 Ω
impedance as shown in the left picture.
2- channel duo-mono
For 2- channel mono take two speakers (subwoofer) 4-8 Ω
impedance as shown in the left picture.
