EX-1189HMVS-3W
3. Layout, Connections & Jumper Settings

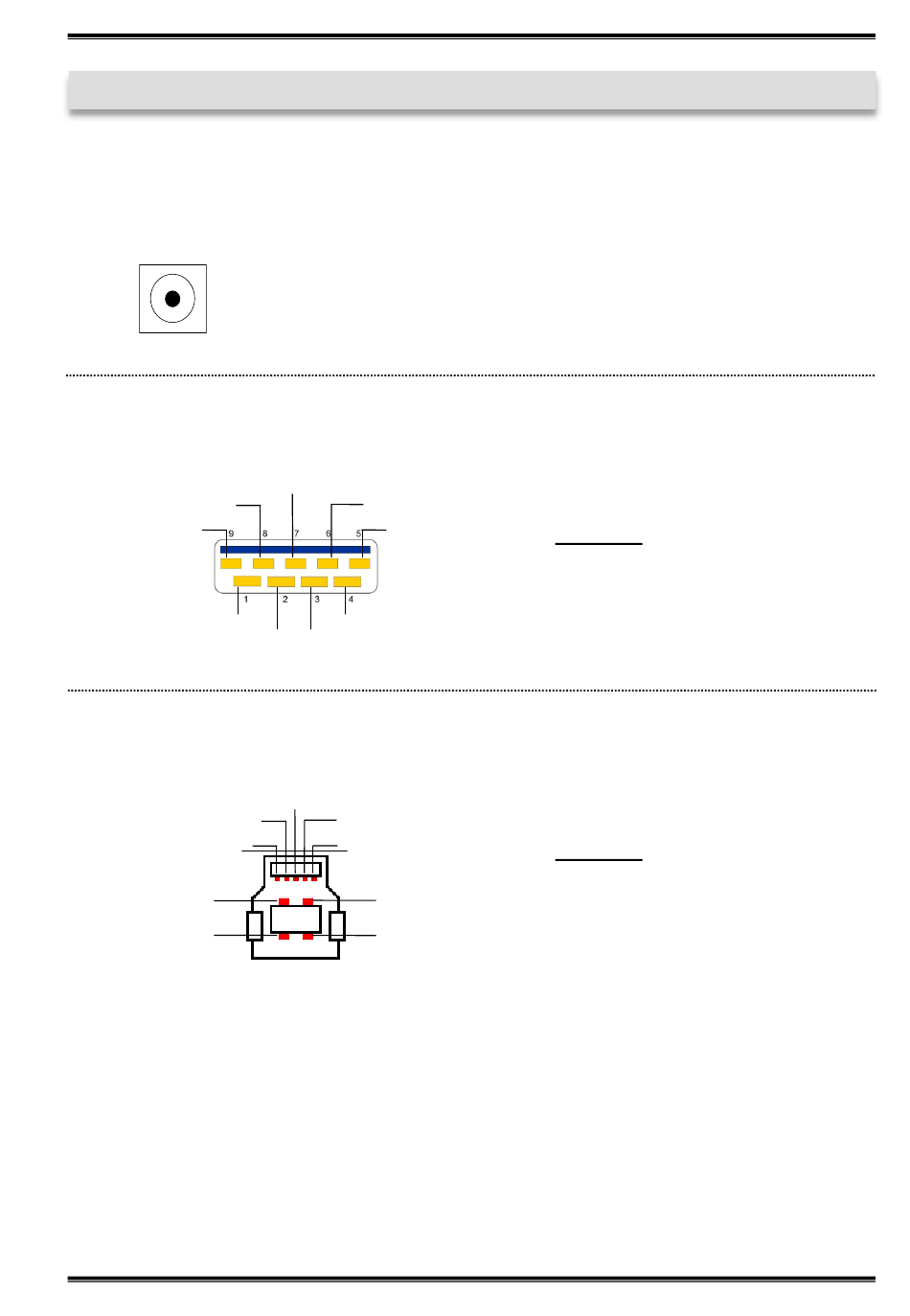

3.2 Connections

12-24V Connector:
USB 3.2 (Gen1) A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.2 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
ATTENTION!!!
Use only with Power Supply which is included in delivery!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attention!
Never plug in with force
or in wrong direction.
Attention!
Never plug in with force
or in wrong direction.
