Philips ombi 3000 Gebrauchsanweisung Seite 4

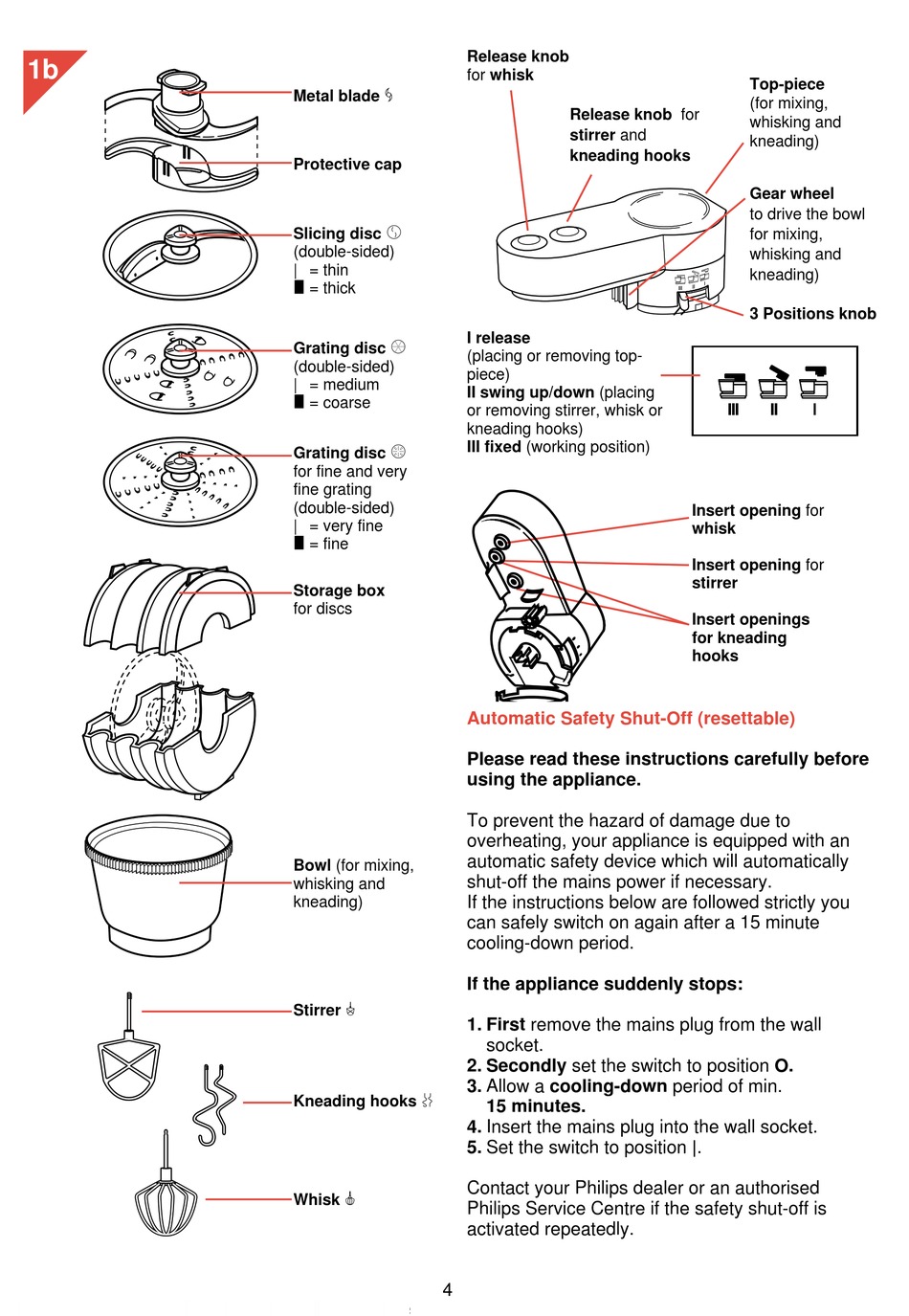

1b
£
Metal blade
Protective cap
§
Slicing disc
(double-sided)
| = thin
[
= thick
¶
Grating disc
(double-sided)
| = medium
[
= coarse
•
Grating disc
for fine and very
fine grating
(double-sided)
| = very fine
[
= fine
Storage box
for discs
Bowl (for mixing,
whisking and
kneading)
√
Stirrer
ƒ
Kneading hooks
≈
Whisk
4
Release knob
for whisk
Release knob for
stirrer and
kneading hooks
I release
(placing or removing top-
piece)
II swing up/down (placing
or removing stirrer, whisk or
kneading hooks)
III fixed (working position)
Automatic Safety Shut-Off (resettable)
Please read these instructions carefully before
using the appliance.
To prevent the hazard of damage due to
overheating, your appliance is equipped with an
automatic safety device which will automatically
shut-off the mains power if necessary.
If the instructions below are followed strictly you
can safely switch on again after a 15 minute
cooling-down period.
If the appliance suddenly stops:
1. First remove the mains plug from the wall
socket.
2. Secondly set the switch to position O.
3. Allow a cooling-down period of min.
15 minutes.
4. Insert the mains plug into the wall socket.
5. Set the switch to position |.
Contact your Philips dealer or an authorised
Philips Service Centre if the safety shut-off is
activated repeatedly.
Top-piece
(for mixing,
whisking and
kneading)
Gear wheel
to drive the bowl
for mixing,
whisking and
kneading)
3 Positions knob
Insert opening for
whisk
Insert opening for
stirrer
Insert openings
for kneading
hooks
