Anschlüsse Din Lh - Aspöck Systems ECOLED II Montageanleitung

Montageanleitung / mounting instruction
ECOLED II

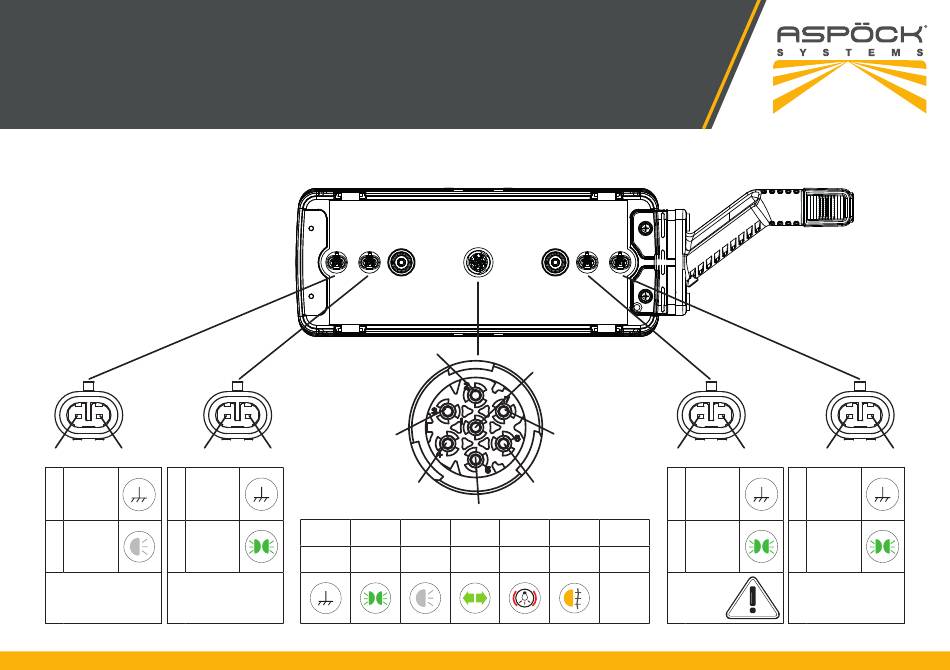

ANSCHLÜSSE DIN LH /
2 1 2
1 GND 1 GND
2 Reverse 2 Tail
max. 5A max. 5A
CONNECTORS DIN LH
2
3
1
4
1 2 3
GND Tail LH Reverse DI LH
1
7
6
5
4 5 6 7
Stop Fog -
-
1
2 1 2
1 GND 1 GND
Tail
2 2 Tail
(SMCG)
max. 3A
max. 5A
SMCG
1
18
