( GB ) Operating Instructions -> 1
( D )
Bedienungsanleitung -> 1
( F )
Notice d'emploi -> 2
( E )
Instrucciones de uso -> 2
( I )
Istruzioni per l'uso->2
( NL ) Gebruiksaanwijzing -> 3
( PL )
Battery Type/ Akku
Typ/ Type d' accu / Tipo
di accumulatore / Type
oplaadbare batterij /
Typ akumulatorka/ Tipo
de pilha/ Akkutyyppi/
Akku típusa/ Batterityp
Mikro/AAA/UM4/R3
NiCd
Mikro/AAA/UM4/R3
NiMH
Mignon/AA/UM3/R6
NiCd
Mignon/AA/UM3/R6
NiMH

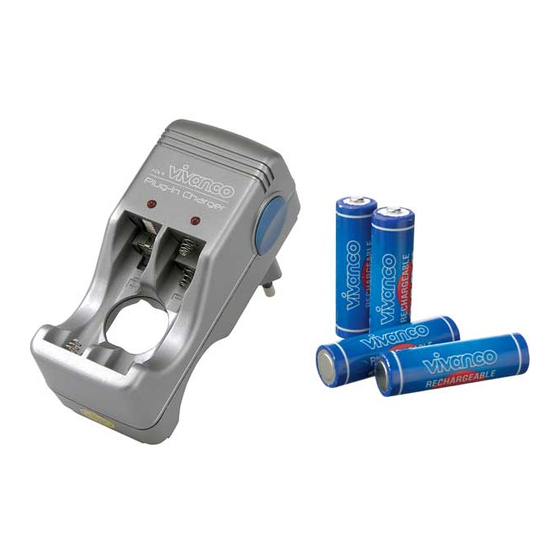

(GB) Operating Instructions Plug-in Charger
With the ASC 9 plug-in charger you can charge 2 or 4
nickel-cadmium (NiCd) or nickel-metal hydride (NIMH)
battery packs of the type Mignon/AA/UM3/R6 or
Micro/AAA/UM4/R3/KR10/44 simultaneously.
Safety precautions:
•
This device is suitable only for charging nickel-
cadmium (NiCd) or nickel-metal hydride (NiMH)
battery packs. Any attempt to charge other
(non-rechargeable) batteries or battery packs
can cause serious damage and is therefore not
permitted.
•
Do not use leaking or corroding battery packs.
•
Do not use the charger outdoors.
•
Always remove the device from the mains
socket before cleaning.
•
In the event of malfunction, have the device
repaired by a specialist.
1.
Insert 2 or 4 battery packs in the charger. The
device cannot charge 1 or 3 battery packs. If
you only want to charge 2 battery packs, place
them next to each other, either in the top or
bottom chamber. Wherever possible, charge
only battery packs of the same type and
approximately the same capacity at the same
time.
2.
Make sure that the battery packs are connected
with the correct polarity (+ and -, see illustration
in the charging compartment) and that perfect
contact is guaranteed.
3.
Insert the mains plug into the main socket.
4.
The two red LED control lamps indicate that the
battery packs are being charged correctly.
When charging 2 battery packs only one of the
Downloaded from
www.Manualslib.com
ACS 9
-> 3
Charging Table
Capacity/ Kapazität/
Charging Current/
Capacité/ Capacità/
Ladestrom/ Courant de
Capaciteit/
charge/ Corrente di
carica/
Capacidade/
Kapasiteetti/
recarga/ Latausvirta/
Kapacitet/ Kapacitás
Ladestrøm/
Laddningsström
200 - 500 mAh
500 - 1000 mAh
400 - 1000 mAh
800 - 2500 mAh
Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, hotline@vivanco.de
manuals search engine
( P )
Instruções de operação -> 4
(RUS)
(SF) Käyttöohje pistokelaturiin -> 5
(DK) Betjeningsvejledning -> 5
(H) Típusú fali a
(S) Bruksanvisning batteriladdare för
nätanslutning -> 6
Charging time appr / Ladezeit
ca. / Temps de charge env.
Tempo di carica appross./
Oplaadtijd ca./ Czas
recarga (aprox.)/ Latausaika
n./ Ladetid ca./
Laddningstid ca.
100 mA
3 – 7 h
100 mA
7 – 14 h
200 mA
3 - 7 h
200 mA
6 - 18 h
red LEDs lights; when 4 battery packs are
inserted both LEDs light.
5.
To end charging upon completion of the
charging time (see table), simply disconnect the
device from the mains socket and remove the
battery packs.
6.
Please note that charging times vary according
to the capacity (see battery pack imprint) and
condition of the battery pack.
(D) Bedienungsanleitung Steckerladeger t
Mit dem Steckerladegerät ACS 9 können Sie 2 oder 4
Nickel-Cadmium
(NiCd)
oder
Nickel-Metallhydrid
(NIMH) Akkus der Typen Mignon/AA/UM3/R6 oder
Mikro/AAA/UM4/R3/KR10/44 gleichzeitig laden.
Sicherheitshinweise:
•
Das Gerät ist ausschließlich zum Laden von
Nickel-Cadmium
(NiCd)
Metallhydrid
(NiMH)
Akkus
Versuch des Ladens anderer (nichtaufladbarer)
Batterien oder Akkus kann zu schweren
Schäden führen und ist daher unzulässig.
•
Verwenden
Sie
keine
undichten
korrodierenden Akkus.
•
Benutzen Sie das Ladegerät nicht im Freien.
•
Vor dem Reinigen das Gerät bitte unbedingt
aus der Steckdose ziehen.
•
Bei eventuell auftretenden Störungen lassen
Sie das Gerät bitte vom Fachmann reparieren.
1.
Legen Sie 2 oder 4 Akkus in das Ladegerät ein.
Es können nicht 1 oder 3 Akkus geladen
werden. Wenn Sie nur 2 Akkus laden wollen,
legen Sie diese bitte nebeneinander, entweder
in den oberen oder den unteren Schacht ein.
1
-> 4
-> 5
Tempo de
oder
Nickel-
geeignet.
Der
oder
