Matrix MAGNUM Serie Handbuch Seite 9

STORAGE AREA
0.74
m
(28.5ʺ)
2.33
(91.6ʺ)

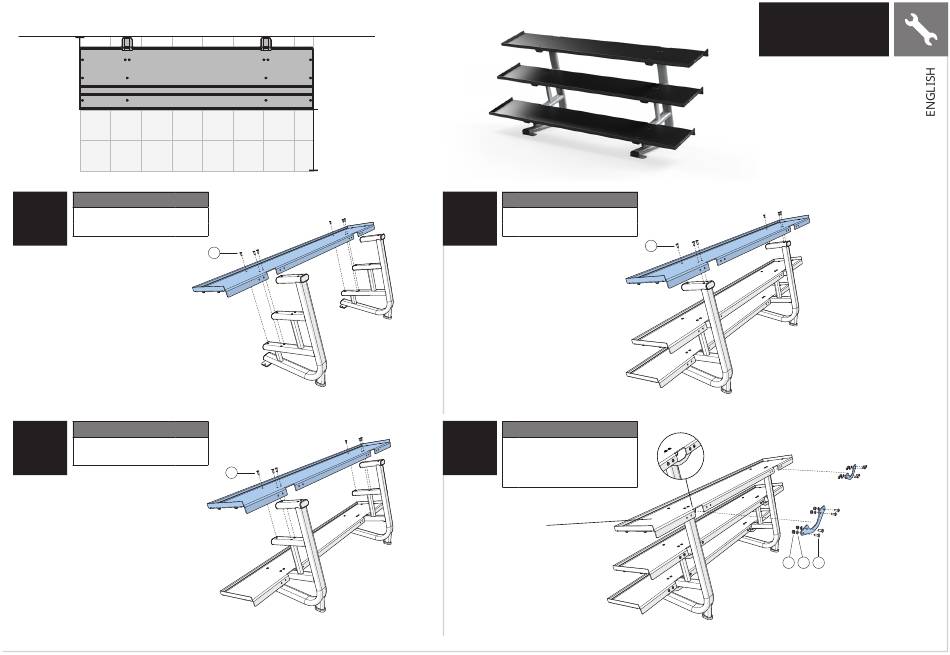

Step 1 Hardware
1
Description Qty
A Bolt (M10x25L) 6
Step 2 Hardware
2
Description Qty
A Bolt (M10x25L) 6
FREE AREA
m
0.6 (2 )
m ft
wide path
A
A
Step 3 Hardware
3
Description Qty
A Bolt (M10x25L) 6
Step 4 Hardware
4
Description Qty
A Bolt (M10x25L) 24
B Flat Washer (M10) 24
C Nut (M10) 24
Repeat for
each tier
MG-A538
A
C B A
9
