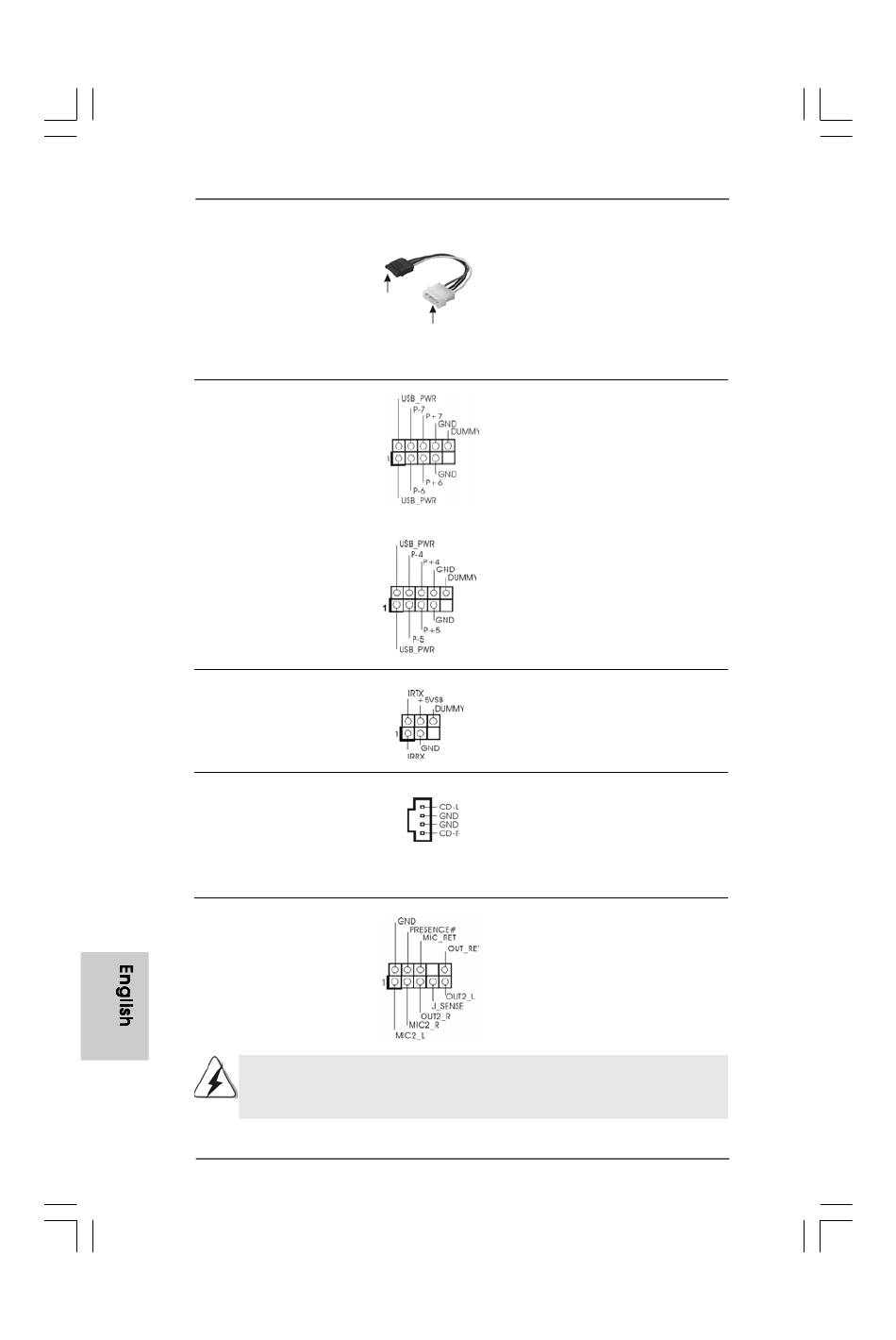

ASROCK 4CoreDual-VSTA Schnellinstallationsanleitung Seite 18

Serial ATA (SATA)
Power Cable
(Optional)
connect to the SATA
HDD power connector
USB 2.0 Headers
(9-pin USB67)
(see p.2 No. 20)
(9-pin USB45)
(see p.2 No. 18)
Infrared Module Header
(5-pin IR1)
(see p.2, No. 27)
Internal Audio Connector
(4-pin CD1)
(CD1: see p.2, No. 28)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.2, No. 24)
1. High Definition Audio supports Jack Sensing, but the panel wire on the
chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
1 8 1 8 1 8 1 8 1 8
connect to the
power supply
CD1
ASRock 4CoreDual-VSTA Motherboard
Please connect the black end of
SATA power cable to the power
connector on the drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
Besides four default USB 2.0
ports on the I/O panel, there are
two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
This header supports an optional
wireless transmitting and
receiving infrared module.
This connector allows you
to receive stereo audio input
from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
This is an interface for the front
panel audio cable that allows
convenient connection and
control of audio devices.
