3. Layout, Connections & Jumper Settings
3.2 Connections
USB 2.0 B-Port:

3.3 Jumper Settings

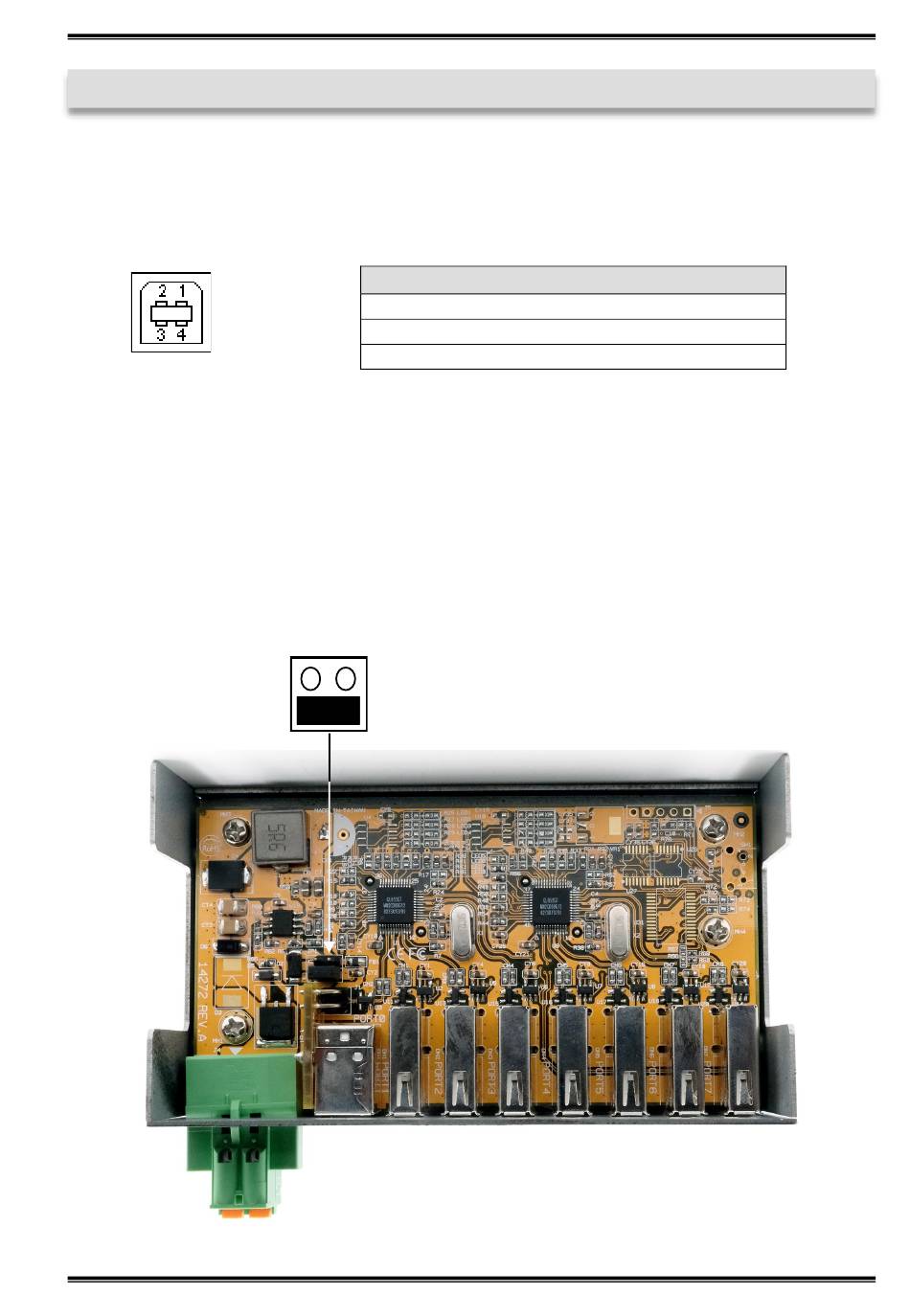

The EX-1179HMVS comes with the setting Self-Power. You also have the possibility
the EX-1179HMVS to supply with Bus-Power. For this you open the case with the four
screws on both sides. Then you must set the jumper JP1 from T (Terminal Block) to U
(USB). See the following picture.
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Port
Pin
1
2
JP1
U
T
Signal Pin
VCC 3
DATA- 4
11
English
Signal
DATA+
GND
