Installation

Package Contents

! USRobotics Wireless
! 15V DC Power supply
! Ethernet cable
! Telephone cable

Physical Features

Front

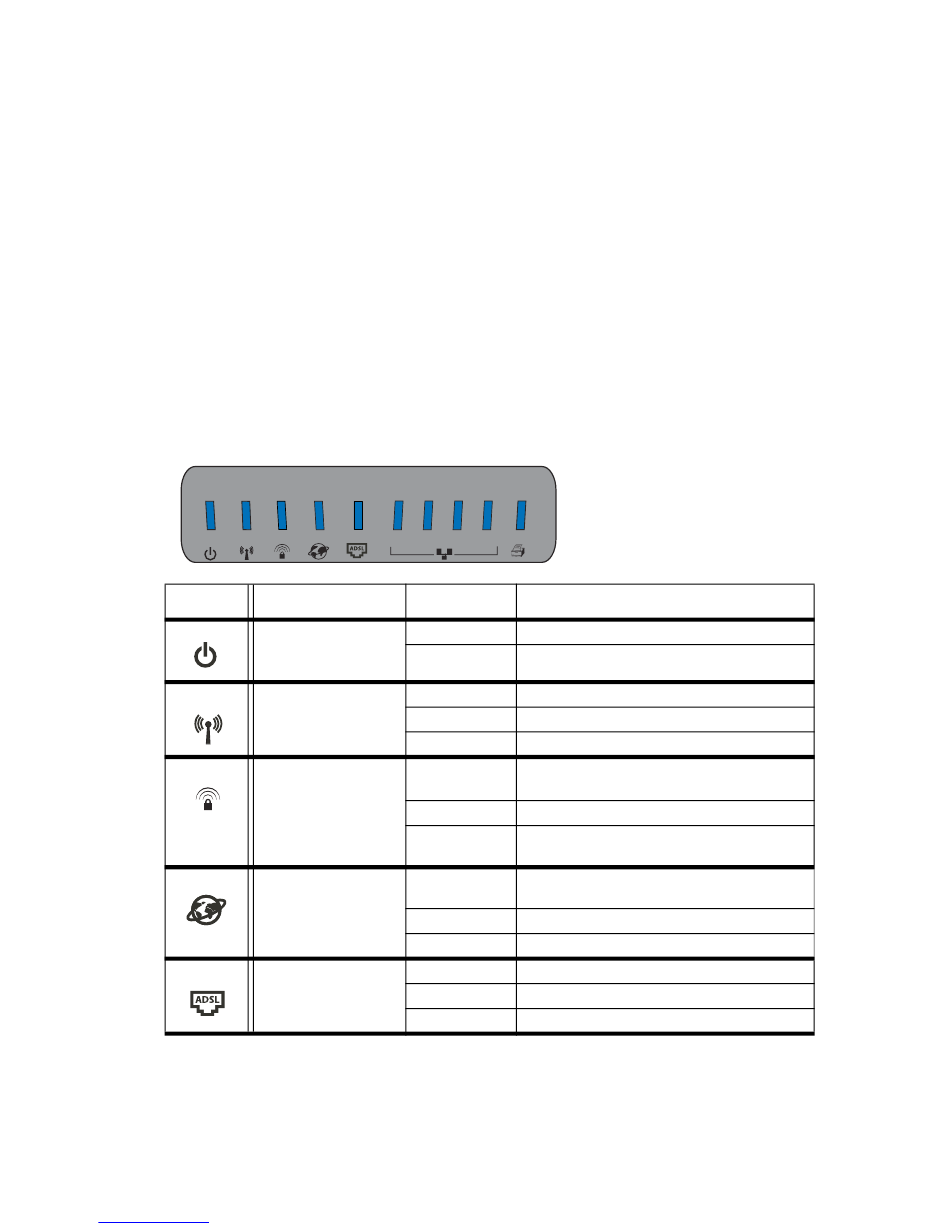

The gateway has the following status LEDs:
Symbol
Downloaded from www.Manualslib.com
N
dx ADSL2+ Gateway
Name
Power
WLAN
(Wireless Net-
work)
SecureEasySetup
WAN
(Internet)
ADSL
manuals search engine
! Detachable Antennas
! Installation CD-ROM
! Quick Installation Guide
2 3
1 4
State Condition
Off Not receiving power.
Solid Receiving power.
Off Wireless connection is disabled.
Solid Wireless connection is enabled.
Flashing Sending and receiving data.
Off SecureEasySetup mode is not ready
on the gateway.
Solid SecureEasySetup mode is ready.
Blinking Communicating with
SecureEasySetup devices.
Off No Internet connection established
or the gateway is in bridge mode.
Flashing Sending and receiving data.
Solid Internet connection is established.
Off No ADSL connection.
Solid ADSL link is achieved.
Flashing ADSL link is being established.
