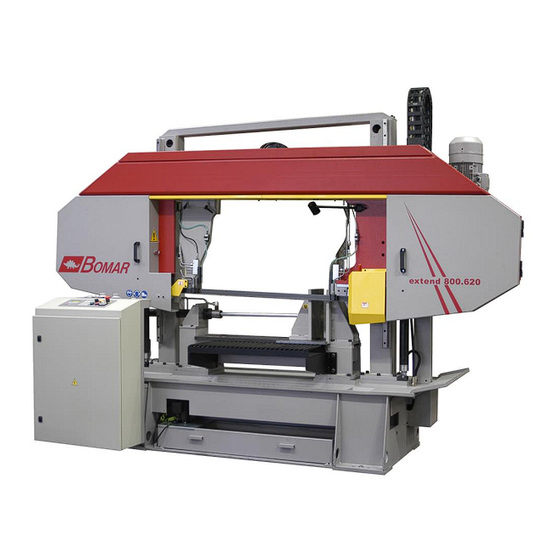

Operating Instructions for Band Saw Extend 800.620 Before transporting and using the machine, please read the instructions thoroughly! Serial number:...
Version 2.02 / September 2007 Service and Information In case of technical difficulties or spare parts order, please contact your dealer: Or contact Bomar, spol. s r.o. directly: BOMAR, spol. s r.o. Těžební 1236/1 62700 Brno CZECH REPUBLIC +420 – 533 426 100 Telephone: +420 –...
PEED ADJUSTMENT OF THE ARM LOWERING 12. PREPARATIVE MODE ...................... 30 12.1..................... 30 NTRANCE TO MENU 12.2....................30 UTTING PARAMETERS 12.3................30 NTERRUPTING THE CYCLE SELECTION BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 4
AW ARM LOWER POSITION STOP ADJUSTMENT 19.7........50 IMIT SWITCH ADJUSTMENT OF THE SAW FRAME LOWER POSITION 19.8............. 50 DJUSTMENT OF THE CUTTING PRESSURE REGULATION 20. WORN PIECES REPLACEMENT ..................52 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Version 2.02 / September 2007 Elektrická schémata / Elektroschemas / Wiring diagrams Attention! By driving motor 5,5kW - FM1=5,5kW Elektrické schéma / Elektroschema / Wiring diagram 1 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 8
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 2 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 9
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 3 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 10
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diag ram 4 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 11
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 5 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 12
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 6 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 13
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 7 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 14
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 8 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 15
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 9 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 16
Version 2.02 / September 2007 Elektrické schéma / Elektroschema / Wiring diagram 10 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Baujahr (z. B. 1999). For spare parts order, you must always to allege: type of machine (for example STG 120), serial number (for example 125) and year of construction (for example 1999). BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno...
Seite 23
Version 2.02 / September 2007 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Version 2.02 / September 2007 25.12. Odměřování ramene / Rahmenabmesung / Admeasurement of arm BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 48
Version 2.02 / September 2007 25.13. Levá vodící kostka / Linker Führungsklotz / Left guiding cube – 4kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 49
10x16x0,5 DIN 988 Pružina / Feder / Spring 90.350.0Z.004 20x10.2x1.1 DIN 2093 Kuličkové ložisko / Kugellager / Ball bearing 95.001.044 609 2RS Pojistný kroužek / Sicherungsring / Retaining 95.801.035 ring BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 50
Version 2.02 / September 2007 25.14. Pravá vodící kostka / Rechter Führungsklotz / Right guiding cube - 4kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 51
90.154.50.003 20x10.2x1.1 Pružina / Feder / Spring 90.350.0Z.004 DIN 2093 Kuličkové ložisko / Kugellager / Ball bearing 95.001.044 609 2RS Pojistný kroužek / Sicherungsring / Retaining ring 95.801.035 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 52
Version 2.02 / September 2007 25.15. Vedení pásu / Sägebandführung / Saw band guiding – 4 kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 54
Version 2.02 / September 2007 25.16. Levá vodící kostka / Linker Führungsklotz / Left guiding cube - 5,5kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 55
90.154.50.003 Pružina / Feder / Spring 90.350.0Z.005 20x10.2x1.1 DIN 2093 Kuličkové ložisko / Kugellager / Ball bearing 95.001.044 609 2RS Pojistný kroužek / Sicherungsring / Retaining ring 95.801.035 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 56
Version 2.02 / September 2007 25.17. Pravá vodící kostka / Rechter Führungsklotz / Right guiding cube -5,5 kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 57
90.154.50.003 Podložka / Scheibe / Washer 20x10.2x1.1 DIN 90.350.0Z.005 Pružina / Feder / Spring 2093 Kuličkové ložisko / Kugellager / Ball bearing 95.001.044 609 2RS Pojistný kroužek / Sicherungsring / Retaining ring 95.801.035 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 58
Version 2.02 / September 2007 25.18. Vedení pásu / Sägebandführung / Saw band guiding – 5,5 kW Motor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 60
Version 2.02 / September 2007 25.19. Třískový vynašeč / Spanaustrager / Swarf conveyor BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 61
201.6717-304 30.6117-101 Koryto / Rinne / Trough 30.6117-103 Kryt / Deckel / Cover Šroub / Schraube / Screw 90.005.55.012 M6x40 M6x40 DIN 90.100.55.004 Matice / Mutter / Nut BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 62
Version 2.02 / September 2007 25.20. Kartáček / Bürste / Brush BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 63
90.100.55.007 Matice / Mutter / Nut M12 DIN 934 Podložka / Scheibe / Washer 90.150.50.007 d13 DIN 125 Kuličkové ložisko / Kugellager / Ball 95.001.006 bearing 6000 2RS BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 64
Version 2.02 / September 2007 Je dodán na přání. Ist nach dem Wunsch geliefert.Is delivered by request. 25.21. Regulace tlaku svěráku Spandruckregulierung/Vice pressure regulation / BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 65
Manometr / Manometer / Manometer 92.154.001 Ventil / Ventil / Valve Držák hadice / Schlauchhalter / Hose 94.204.005 holder LBG 14/14-PP Kroužek těsnící / Dichtungsring / Sealing 96.082.002 ring CU 13/17 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 66
Version 2.02 / September 2007 25.22. Chlazení / Kühlung / Cooling BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 67
Plech čerpadla/ Pumpeblech / Pump Metal plate 30.6106-003 Síto / Sieb / Pump screen 30.6106-004 Čerpadlo chlazení / Kühlmittelpumpe / Coolant 91.020.016 pump 3 COA 4-14 94.202.005 Redukce / Reduktion / Reduction .3/4-6 BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 68
Version 2.02 / September 2007 Umístění bezpečnostních značek / Verteilung der Sicherheitszeichen / Position of safety symbols 26.1. Pila / Bandsäge / Band saw BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 69
Version 2.02 / September 2007 26.2. Napínací a hnací kolo / Umlenkrad und Antriebsrad / Tightening wheel and driving wheel BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
Seite 70
Tragen Sie Sicherheitsschuhe / 99.900.048 adhesive label Wear fixed protective shoes CZ-Přečíst návod k použití / Samolepka / Aufkleber / self- 99.900.049 Bedienungsanleitung lesen / read adhesive label the operating instructions BOMAR, spol. s r.o. Extend 800.620 Těžební 1236/1 62700 Brno CZECH REPUBLIC...
