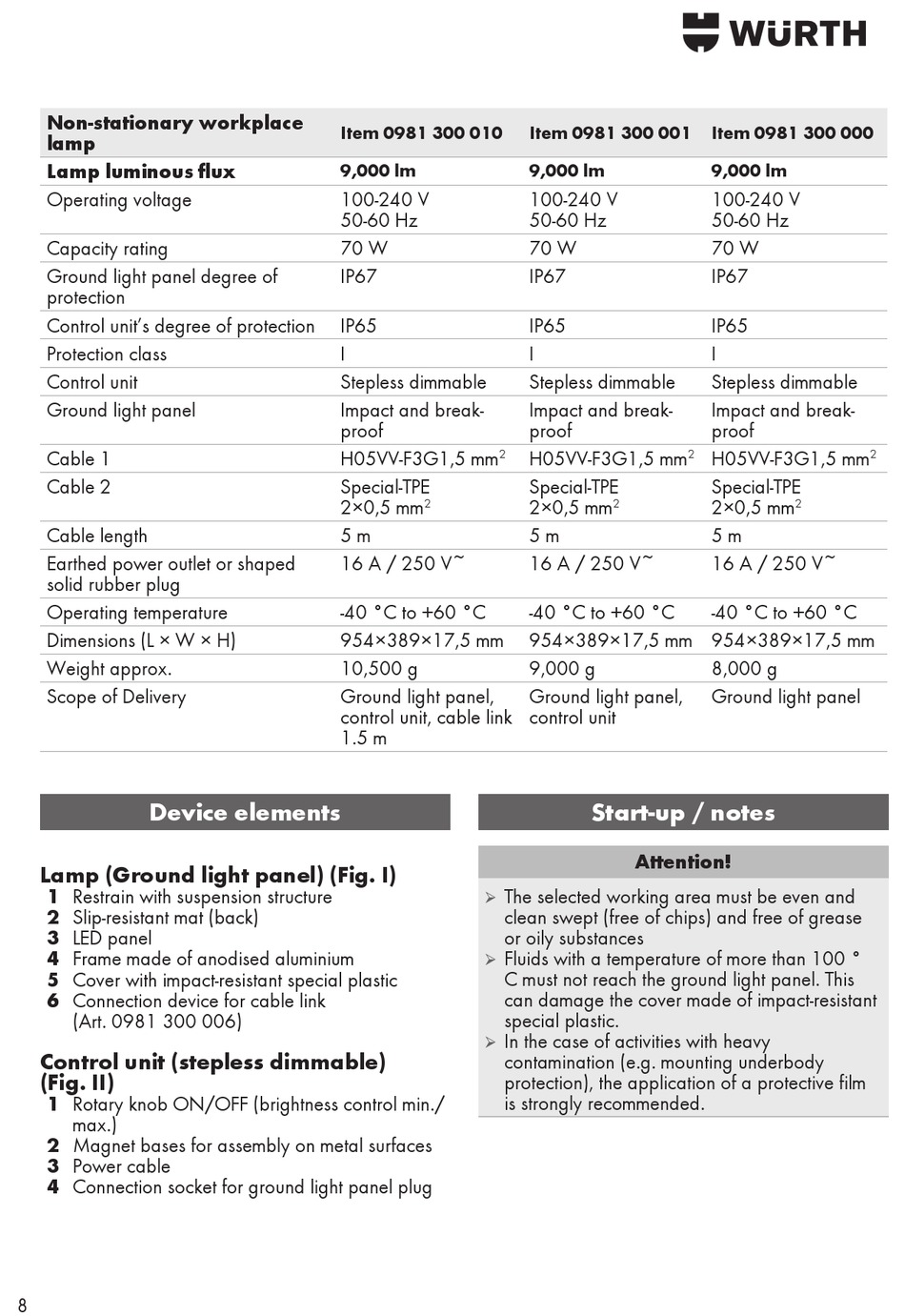

Device Elements - Würth FLASHPAD-STEP Originalbetriebsanleitung

Non-stationary workplace
lamp
Lamp luminous flux
Operating voltage
Capacity rating
Ground light panel degree of
protection
Control unit's degree of protection
Protection class
Control unit
Ground light panel
Cable 1
Cable 2
Cable length
Earthed power outlet or shaped
solid rubber plug
Operating temperature
Dimensions (L × W × H)
Weight approx.
Scope of Delivery

Device elements

Lamp (Ground light panel) (Fig. I)
1 Restrain with suspension structure
2 Slip-resistant mat (back)
3 LED panel
4 Frame made of anodised aluminium
5 Cover with impact-resistant special plastic
6 Connection device for cable link
(Art. 0981 300 006)
Control unit (stepless dimmable)
(Fig. II)
1 Rotary knob ON/OFF (brightness control min./
max.)
2 Magnet bases for assembly on metal surfaces
3 Power cable
4 Connection socket for ground light panel plug
8
Item 0981 300 010
9,000 lm
100-240 V
50-60 Hz
70 W
IP67
IP65
I
Stepless dimmable
Impact and break-
proof
H05VV-F3G1,5 mm
2
Special-TPE
2×0,5 mm
2
5 m
16 A / 250 V~
-40 °C to +60 °C
954×389×17,5 mm
10,500 g
Ground light panel,
control unit, cable link
1.5 m
The selected working area must be even and
¾
clean swept (free of chips) and free of grease
or oily substances
Fluids with a temperature of more than 100 °
¾
C must not reach the ground light panel. This
can damage the cover made of impact-resistant
special plastic.
In the case of activities with heavy
¾
contamination (e.g. mounting underbody
protection), the application of a protective film
is strongly recommended.
Item 0981 300 001
9,000 lm
100-240 V
50-60 Hz
70 W
IP67
IP65
I
Stepless dimmable
Impact and break-
proof
H05VV-F3G1,5 mm
2
Special-TPE
2×0,5 mm
2
5 m
16 A / 250 V~
-40 °C to +60 °C
954×389×17,5 mm 954×389×17,5 mm
9,000 g
Ground light panel,
control unit
Start-up / notes
Attention!
Item 0981 300 000
9,000 lm
100-240 V
50-60 Hz
70 W
IP67
IP65
I
Stepless dimmable
Impact and break-
proof
H05VV-F3G1,5 mm
2
Special-TPE
2×0,5 mm
2
5 m
16 A / 250 V~
-40 °C to +60 °C
8,000 g
Ground light panel
