14

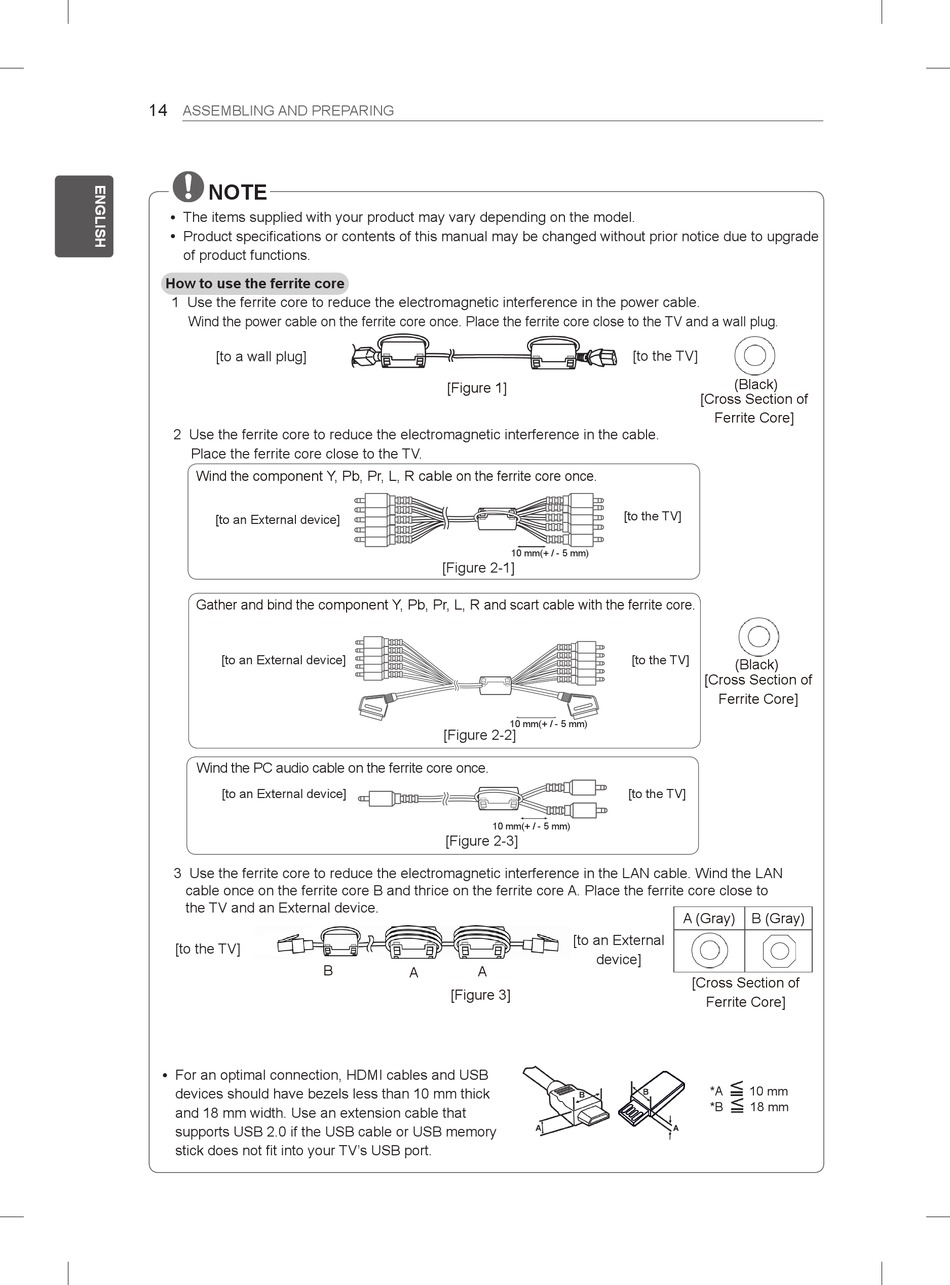

ASSEMBLING AND PREPARING
NOTE
y The items supplied with your product may vary depending on the model.
y Product specifications or contents of this manual may be changed without prior notice due to upgrade
of product functions.
How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
[to a wall plug]
2 Use the ferrite core to reduce the electromagnetic interference in the cable.
Place the ferrite core close to the TV.
Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.
[to an External device]
Gather and bind the component Y, Pb, Pr, L, R and scart cable with the ferrite core.
[to an External device]
Wind the PC audio cable on the ferrite core once.
[to an External device]
3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN
cable once on the ferrite core B and thrice on the ferrite core A. Place the ferrite core close to
the TV and an External device.
[to the TV]
B
y For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that
supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV's USB port.
[Figure 1]
10 mm(+ / - 5 mm)
[Figure 2-1]
10 mm(+ / - 5 mm)
[Figure 2-2]
10 mm(+ / - 5 mm)
[Figure 2-3]
[to an External
A
A
[Figure 3]
[to the TV]
(Black)
[Cross Section of
Ferrite Core]
[to the TV]
[to the TV]
(Black)
[Cross Section of
Ferrite Core]
[to the TV]
A (Gray) B (Gray)
device]
[Cross Section of
Ferrite Core]
*A 10 mm
*B 18 mm
