4.1.2 UNHOOKING THE SEED DRILL FROM THE TRACTOR
Unhooking the seed drill from the tractor is a very angerous
operation. Great caution must be used and the whole operation
must be carried out following the instructions.

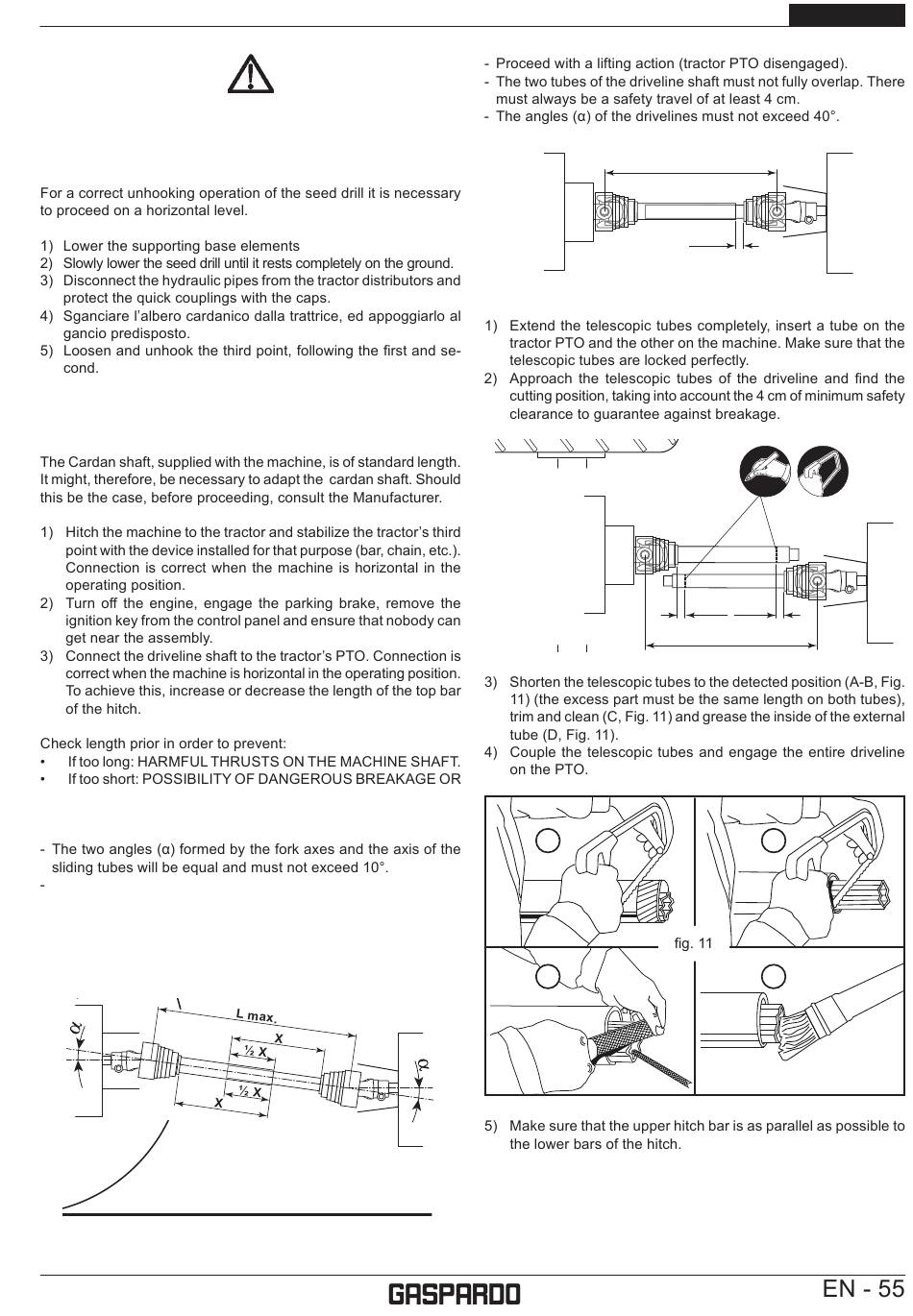

4.2 ADAPTING THE CARDAN SHAFT

SLIPPAGE OF THE PTO SHAFT.
Inspections at work:
Telescoping tubes must always overlap by at least 1/2 of their
length in normal operation and at least 1/3 of their length in
all working conditions. During maneuvers, when the driveline
is not rotating, the telescoping tubes must have a suitable
overlap to maintain the tubes aligned and allow then to slide
freely.
cod. G19504610
DANGER
USE AND MAINTENANCE
Inspections in the raised position:
If these two results are not obtained:
A
C
ENGLISH
L min.
4 cm
4 cm 4 cm
L min.
B
D
