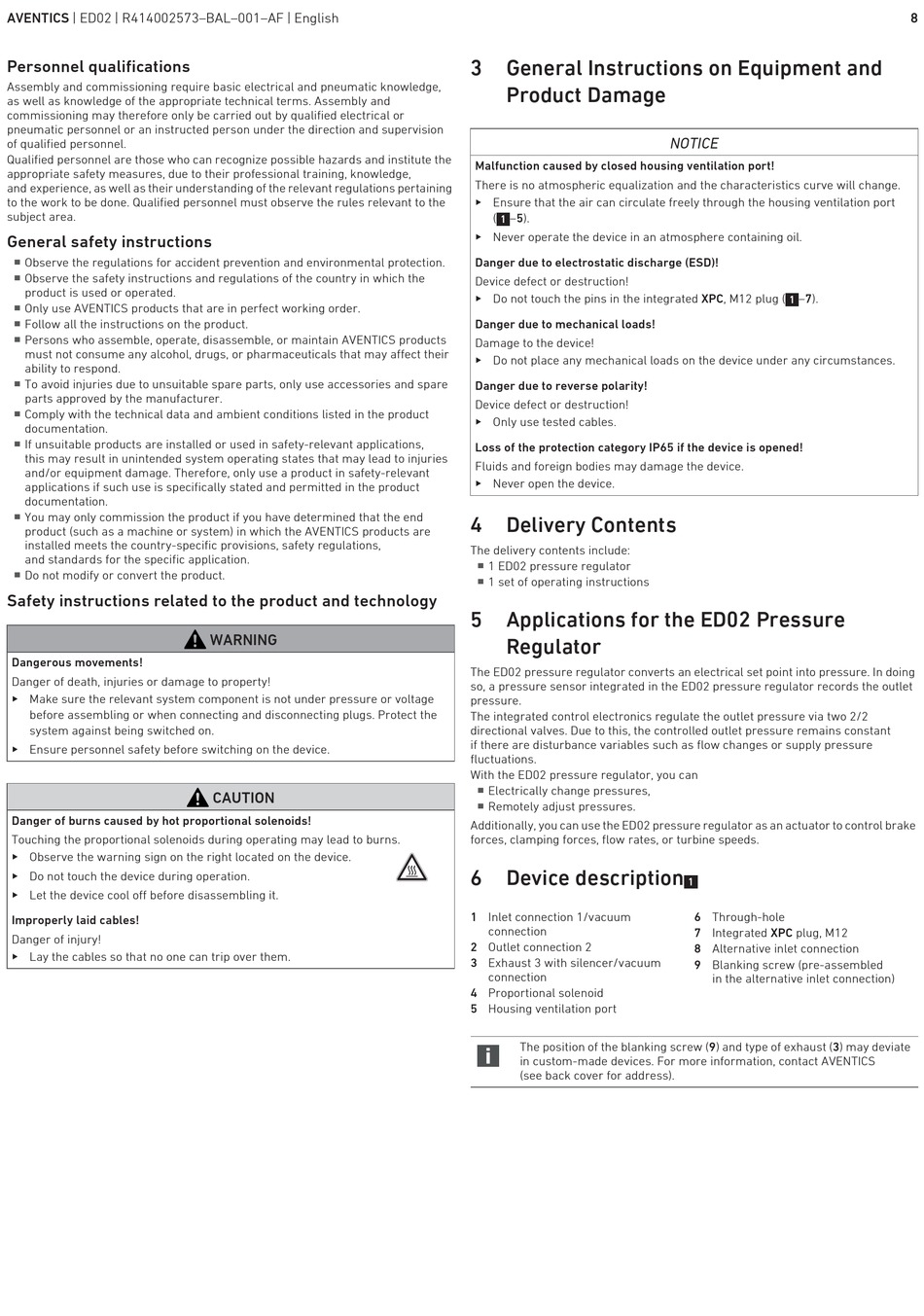

AVENTICS | ED02 | R414002573–BAL–001–AF | English
Personnel qualifications
Assembly and commissioning require basic electrical and pneumatic knowledge,
as well as knowledge of the appropriate technical terms. Assembly and
commissioning may therefore only be carried out by qualified electrical or
pneumatic personnel or an instructed person under the direction and supervision
of qualified personnel.
Qualified personnel are those who can recognize possible hazards and institute the
appropriate safety measures, due to their professional training, knowledge,
and experience, as well as their understanding of the relevant regulations pertaining
to the work to be done. Qualified personnel must observe the rules relevant to the
subject area.
General safety instructions
W
Observe the regulations for accident prevention and environmental protection.
W
Observe the safety instructions and regulations of the country in which the
product is used or operated.
W
Only use AVENTICS products that are in perfect working order.
W
Follow all the instructions on the product.
W
Persons who assemble, operate, disassemble, or maintain AVENTICS products
must not consume any alcohol, drugs, or pharmaceuticals that may affect their
ability to respond.
W
To avoid injuries due to unsuitable spare parts, only use accessories and spare
parts approved by the manufacturer.
W
Comply with the technical data and ambient conditions listed in the product
documentation.
W
If unsuitable products are installed or used in safety-relevant applications,
this may result in unintended system operating states that may lead to injuries
and/or equipment damage. Therefore, only use a product in safety-relevant
applications if such use is specifically stated and permitted in the product
documentation.
W
You may only commission the product if you have determined that the end
product (such as a machine or system) in which the AVENTICS products are
installed meets the country-specific provisions, safety regulations,
and standards for the specific application.
W
Do not modify or convert the product.
Safety instructions related to the product and technology
Dangerous movements!
Danger of death, injuries or damage to property!
O Make sure the relevant system component is not under pressure or voltage
before assembling or when connecting and disconnecting plugs. Protect the
system against being switched on.
O Ensure personnel safety before switching on the device.
Danger of burns caused by hot proportional solenoids!
Touching the proportional solenoids during operating may lead to burns.
O Observe the warning sign on the right located on the device.
O Do not touch the device during operation.
O Let the device cool off before disassembling it.
Improperly laid cables!
Danger of injury!
O Lay the cables so that no one can trip over them.
WARNING
CAUTION
3 General Instructions on Equipment and
Product Damage
Malfunction caused by closed housing ventilation port!
There is no atmospheric equalization and the characteristics curve will change.
O Ensure that the air can circulate freely through the housing ventilation port
( –5).
1
O Never operate the device in an atmosphere containing oil.
Danger due to electrostatic discharge (ESD)!
Device defect or destruction!
O Do not touch the pins in the integrated XPC, M12 plug (
Danger due to mechanical loads!
Damage to the device!
O Do not place any mechanical loads on the device under any circumstances.
Danger due to reverse polarity!
Device defect or destruction!
O Only use tested cables.
Loss of the protection category IP65 if the device is opened!
Fluids and foreign bodies may damage the device.
O Never open the device.
4

Delivery Contents

The delivery contents include:
W
1 ED02 pressure regulator
W
1 set of operating instructions
5 Applications for the ED02 Pressure
Regulator
The ED02 pressure regulator converts an electrical set point into pressure. In doing
so, a pressure sensor integrated in the ED02 pressure regulator records the outlet
pressure.
The integrated control electronics regulate the outlet pressure via two 2/2
directional valves. Due to this, the controlled outlet pressure remains constant
if there are disturbance variables such as flow changes or supply pressure
fluctuations.
With the ED02 pressure regulator, you can
W
Electrically change pressures,
W
Remotely adjust pressures.
Additionally, you can use the ED02 pressure regulator as an actuator to control brake
forces, clamping forces, flow rates, or turbine speeds.
6

Device description

1 Inlet connection 1/vacuum
connection
2 Outlet connection 2
3 Exhaust 3 with silencer/vacuum
connection
4 Proportional solenoid
5 Housing ventilation port
The position of the blanking screw (9) and type of exhaust (3) may deviate
in custom-made devices. For more information, contact AVENTICS
(see back cover for address).
NOTICE
–7).
1
1
6 Through-hole
7 Integrated XPC plug, M12
8 Alternative inlet connection
9 Blanking screw (pre-assembled
in the alternative inlet connection)
8
