40 AVENTICS | RAK | R402005099–BDL–001–AB

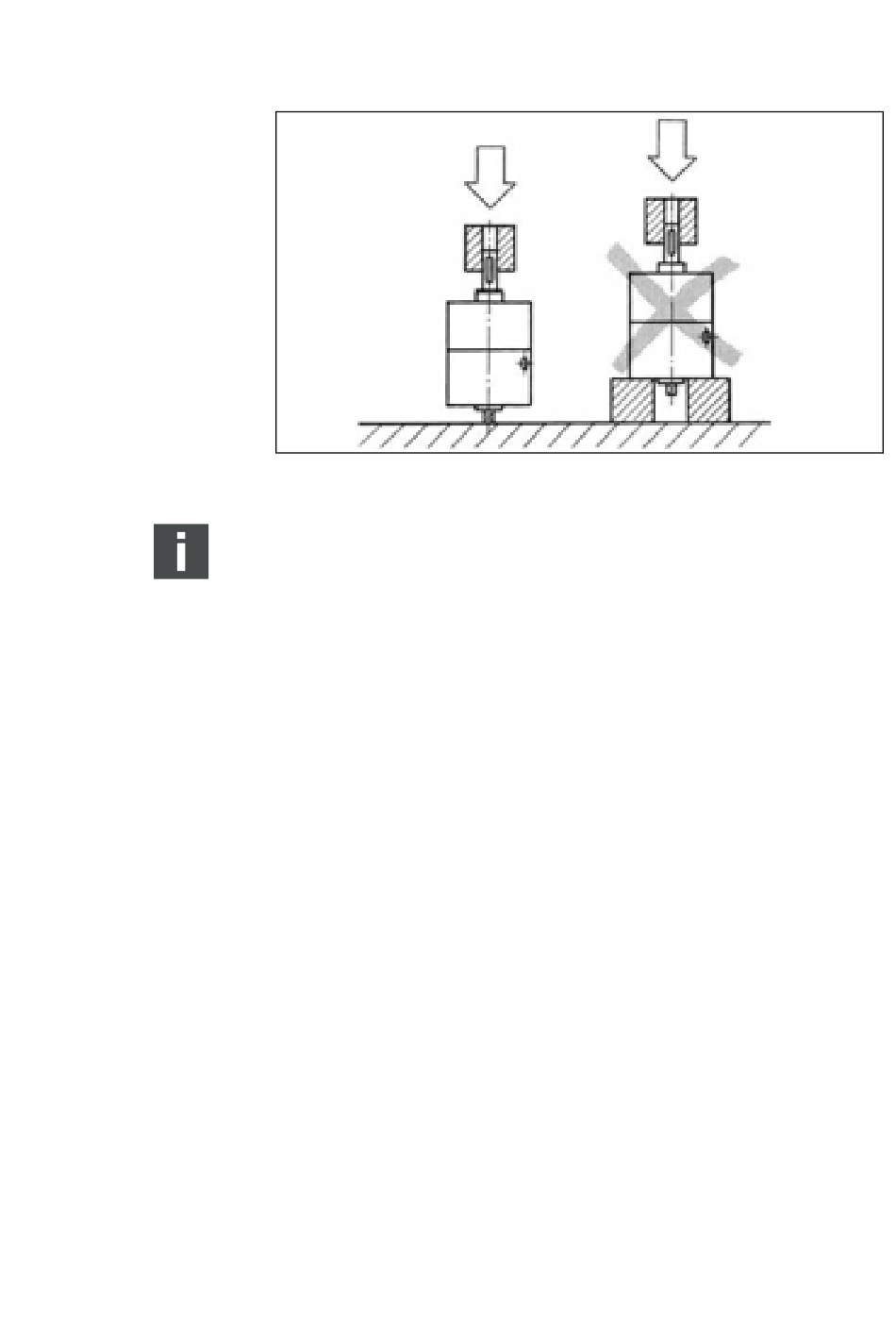

Fig. 4: Load directly on the shaft
Make sure that the load is properly attached for the specific
application, and that the attachment can handle the load for
which the Drehantrieb is dimensioned.
6.1

Fitting the adjustable stop

The Drehantrieb size 2 to 5 has an adjustable stop that consists of
a swivel arm, fitted on the shaft at the back end of the Drehantrieb,
and two stoppers that are adjusted with screws. The swivel arm (1)
and the reference point stopper (2) are fitted at delivery. The angle
setting stopper (3) is fitted at installation, as shown in Fig. 5.
Fit the angle setting stopper (3) in the desired position, in
1.
°
intervals of 15
Fit the fine-adjust screw (5) and lock nut (6) in the angle setting
2.
stopper.
, using the screws supplied (4).
