oventrop Multidis SH Montageanleitung Seite 2

G
Please read instructions carefully before starting installa-
tion.

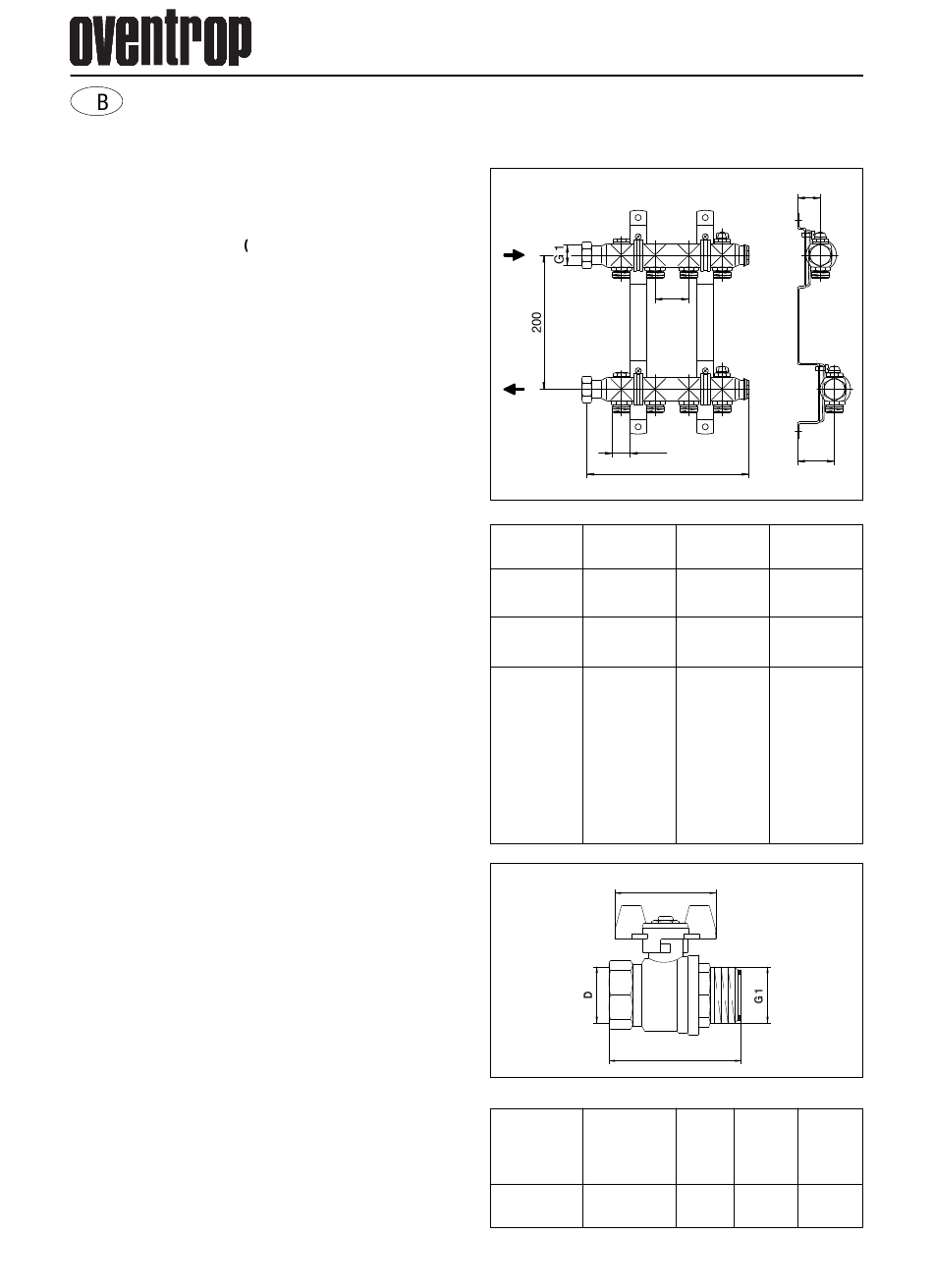

Stainless steel distributor/collector "Multidis SH" for radia-
tor connection, type 140 70 illustration 1)
2 to 12 circuits
Max. working pressure: 6 bar
Max. working temperature: 100°C
k vs value: 2.8 m 3 /h
Installation:
The distributors/collectors are pre-assembled and leak
tested at works.
The stainless steel distributors/collectors "Multidis SH" are
suitable for left and right hand side connection.
Fix distributor (at the top) and collector (at the bottom) to the
brackets as illustrated.
Fix stainless steel distributor/collector "Multidis SH" in the
Oventrop cabinet or, by using the enclosed screws and
dowels, onto the wall.
The stainless steel distributor/collector "Multidis SH" can be
equipped with Oventrop ball valves, item no. 140 63 83 or
140 63 84 (illustra-
tion 3). Suitable flat seals are enclosed.
Standard heat meters G 1 and G
the depth and the length of the stainless steel distributor/
collector "Multidis SH" will change. This has to be taken into
consideration when choosing the cabinet.
The riser is connected to the female threaded connection of
the ball valves with the help of the Oventrop "Combi-System"
for example:
– composition pipe "Copipe"
– press connection fittings "Cofit P"
– screwed connection fittings "Cofit S"
The pipework towards the radiators is connected to the G
compression connection of the stainless steel distributor and
collector.
Oventrop compression fittings for composition pipe "Copipe"
and for copper-, precision steel-, stainless steel- and plastic
pipes are available.
The compression fittings can be easily tightened by using the
spanner, item no. 140 10 91.
Printed tags to mark the individual circuits are enclosed.
The pipework must be insulated to prevent heat loss and to
absorb sound in accordance to guidelines and in compliance
with current rules and building regulations.
1
The G ⁄ blind plug above the first heating circuit connection
2
can be replaced by a standard immersion pocket to receive a
temperature sensor or a thermometer.
The installation may be bled at the stainless steel distribu-
tor/collector "Multidis SH" during filling or, if required, during
operation.
Carry out leak test.
The heating system is now regulated and can be put into
operation.
For an overview of our global presence visit
www.oventrop.com.
"Multidis SH" Stainless steel distributor/collector
3
⁄ may be connected but
4
3
⁄
4
Valves, controls + systems
for radiator connection
50
G 3/4
L
1
Item no. Outlets
Référence Départs
Artikel nr. Uitgangen
140 70 52 12
140 70 53 13
140 70 54 14
140 70 55 15
140 70 56 16
140 70 57 17
140 70 58 18
140 70 59 19
140 70 60 10
140 70 61 11
140 70 62 12
2
L2 L2
3
Item no. Dimension
Référence Dimension
Artikel nr. Diameter
140 63 83 DN 20
140 63 84 DN 25
4
Subject to technical modification without notice.
Instructions de montage
35
55
Length with
ball valves
Length (L)
140 63 84
Longueur avec
Longueur (L)
robinets à tournant
sphérique 140 63 84
Lengte met
Lengte (L) bolkranen
140 63 84
140 mm 220 mm
190 mm 270 mm
240 mm 320 mm
290 mm 370 mm
340 mm 420 mm
390 mm 470 mm
440 mm 520 mm
490 mm 570 mm
540 mm 620 mm
590 mm 670 mm
640 mm 720 mm
L1 L1
D D1 L2
D L1 L2
D L1 L2
3
G ⁄ 55 mm 55 mm
4
G 1 80 mm 60 mm
