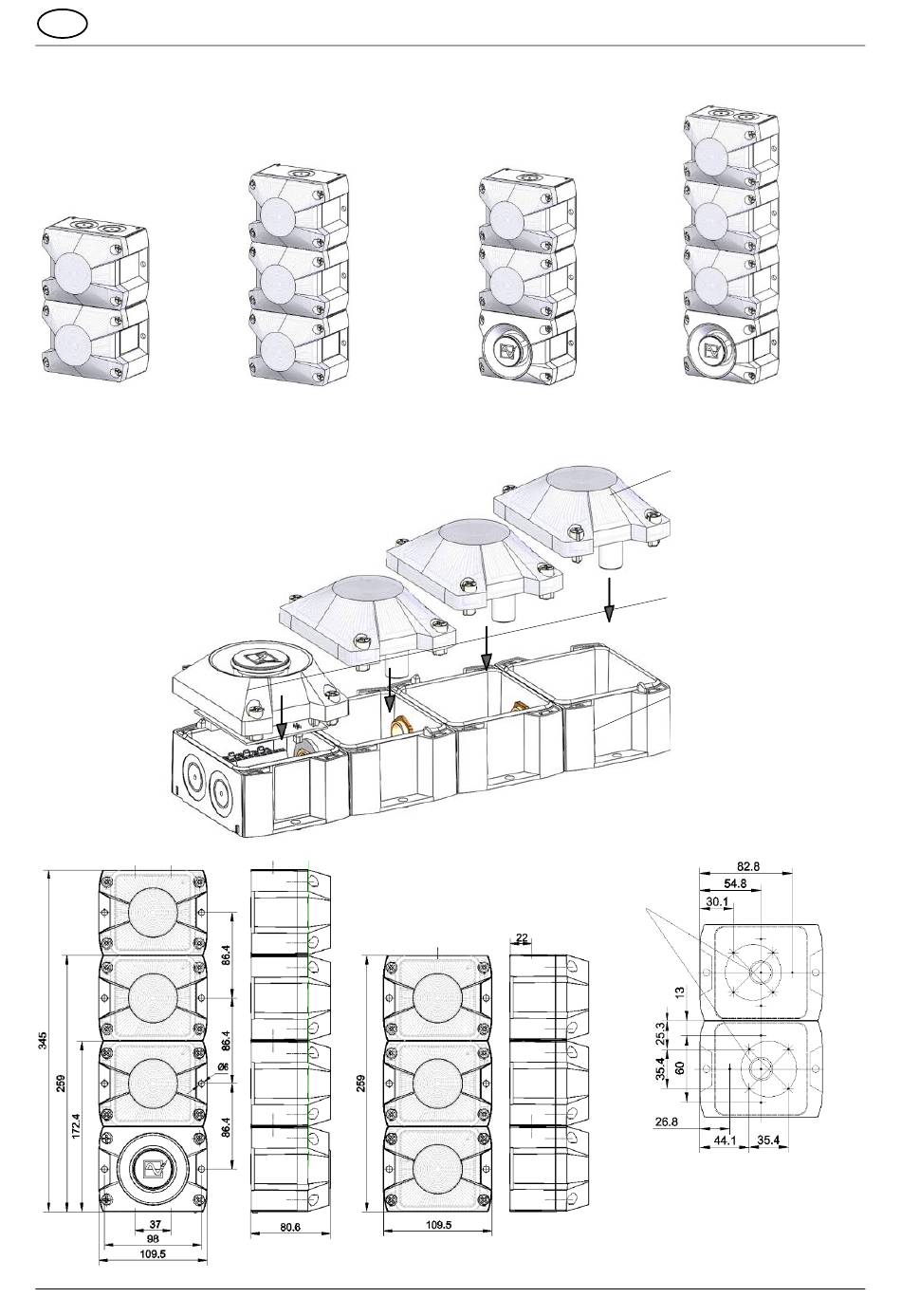

3.1 Versions

Pre-assembled:
With standard color
sequence
red
2 nd
stage
green
st
1
stage
PY L-S-TL-2
Free choice of color:
Example
PY L-S-TLA-4

3.2 Dimensions

06/2020
Operating instructions PY L-S-TL/ PY L-S-TLA
red
rd
3
Stage
yellow
nd
2
stage
green
st
1 stage
PY L-S-TL-3
Page 2 /7
red
2 nd
Stage
green
1 st
stage
PY L-S-TLA-3
cutout prepared
M20
Drilling pattern inside the housing
red
rd
3
Stage
yellow
nd
2
stage
green
1 st
stage
PY L-S-TLA-4
Lenses complete
(clear, white, yellow,
amber, red, green, blue)
part no.: 21516...
Sounder upper part
part no.: 21517...
Lower part:
2, 3, 4 stages
part no.: 2151400...
