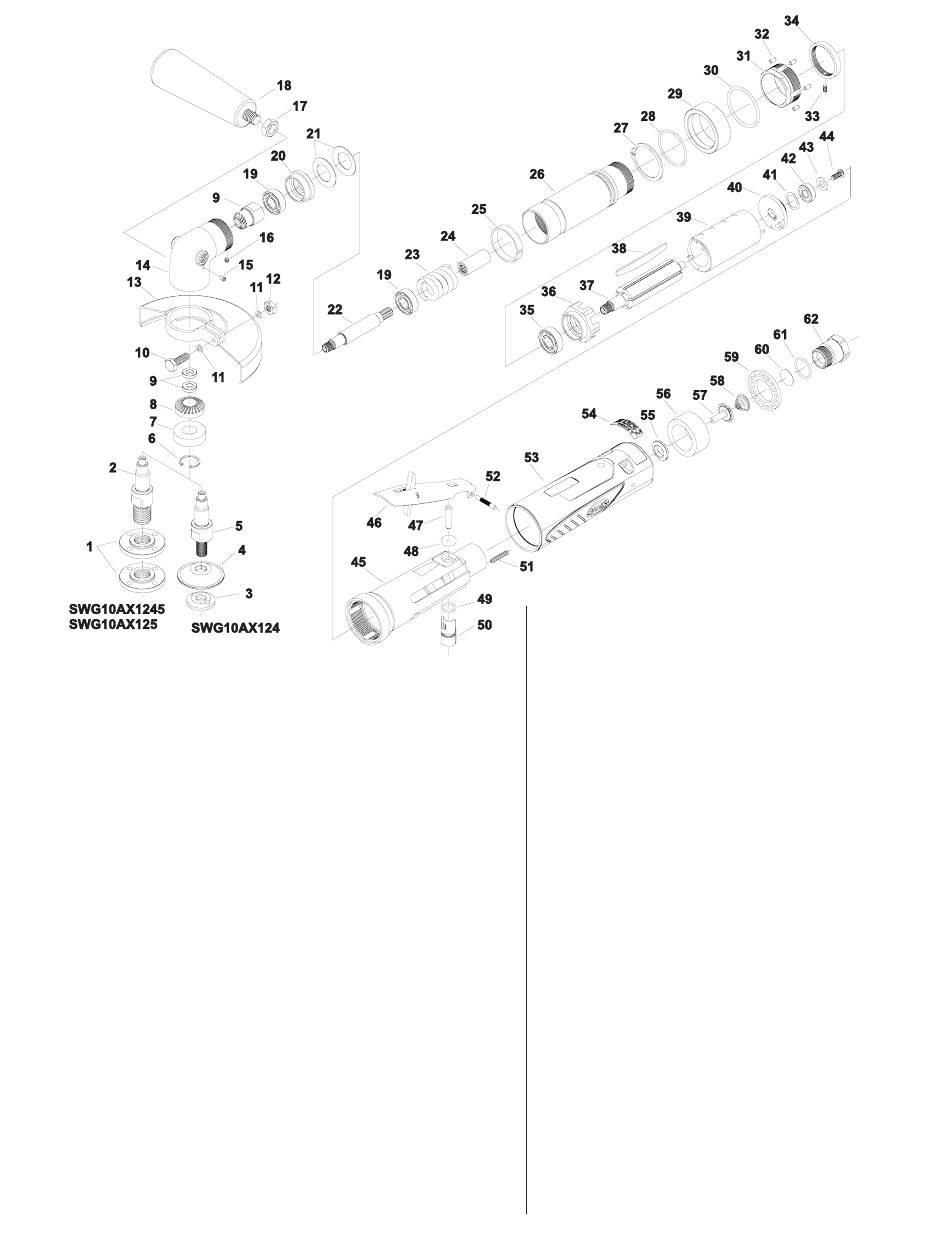

SWG10AX SERIES RIGHT ANGLE WHEEL GRINDERS
Fig No Part No
Description
1.
77026 Wheel Flange (2)*
(SWG10AX1245 & SWG10AX125)
2.
PT450-32 Output Spindle 5/8-11 Thread
(SWG10AX1245 & SWG10AX125)
3.
54959 Wheel Retainer (SWG10AX124)
4.
74096 Wheel Flange (SWG10AX124)
5.
77095 Spindle, 3/8"-24 Thread (SWG10AX124)
6.
77081 Retaining Ring
7 .
10930 Ball Bearing
8.
PT450-3334 Gear Set
9.
SDR-26 Ball Bearing .500x.25x.125 (2)*
10.
07635 Hex Bolt
11.
07634 Washer (2)*
12.
68444 Hex Nut, 1/4-20
13.
PT450-19 4-1/2" Type 27 Guard (SWG10AX1245)
77605 5" Type 27 Guard (SWG10AX125)
74098 4" Type 27 Guard (SWG10AX124)
14.
PT450-31 Angle Head
15.
30375 Grease Fitting 1/8"
16.
77104 Set Screw
17 .
09593 Jam Nut
18.
40107 Support Handle
19.
10257 Ball Bearing (2)*
20.
77087 Bearing Holder
21.
ME1G17 Disc Spring (2)*
22.
77088 Shaft
23.
77091 Spring
24.
77086 Coupler
25.
77089 Retainer
26.
77090 Extension Housing
27 .
77098 Retaining Ring
28.
14371 O-Ring
29.
77085 Cover
30.
14333B O-Ring
Form ZCE732B
PARTS LIST FOR
SERIAL "C"
Fig No Part No
31.
32.
33.
34.
35.
36.
37 .
38.
39.
40.
41.
42.
43.
44.
45.
46.
47 .
48.
49.
50.
51.
52.
53.
54.
55.
56.
57 .
58.
59.
60.
61.
62.
NOT SHOWN:
27
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Description
77084 Locking Clamp Nut
24072 1/8 x1/4 Pin (4)*
77105 Set Screw 6-32 x 1/4"
77106 Lock Ring
10257 Ball Bearing
SDG-3 Front End Plate
74028 Rotor (5 slot)
SP74048 Vane Set
74030 Cylinder, Non-Rev
74023 Rear End Plate
41338 Wave Washer
10253 Ball Bearing
74054 Washer
74055 But Head Cap Screw #8-32f x 3/8
SDG-1 Housing
SP74019 Lever Assembly
74018 Pin Torr 3/16 X 7/8"
67793 O-Ring
14290 O-Ring 1/16 X 3/8 X 1/2"
74013 Regulator
06402 Set Screw, 6-32 x 3/4
74020 Knurl Pin
74004 Housing Cover
74051 Warning Label
74008 Throttle Valve Seat
74016 Muffler
74009 Throttle Valve
74010 Taper Spring
74017 Exaust Deflector
74011 Screen
14281B O-Ring 1/16 X 5/8 X 3/4"
77602 Inlet Bushing
SDG-TUS Motor Tune-up Kit
SP74028A Drop-in Motor Assembly
