Assembly Of The Vacuum Clamping Unit - FRIATEC VACUSET XL Bedienungsanleitung

5.2

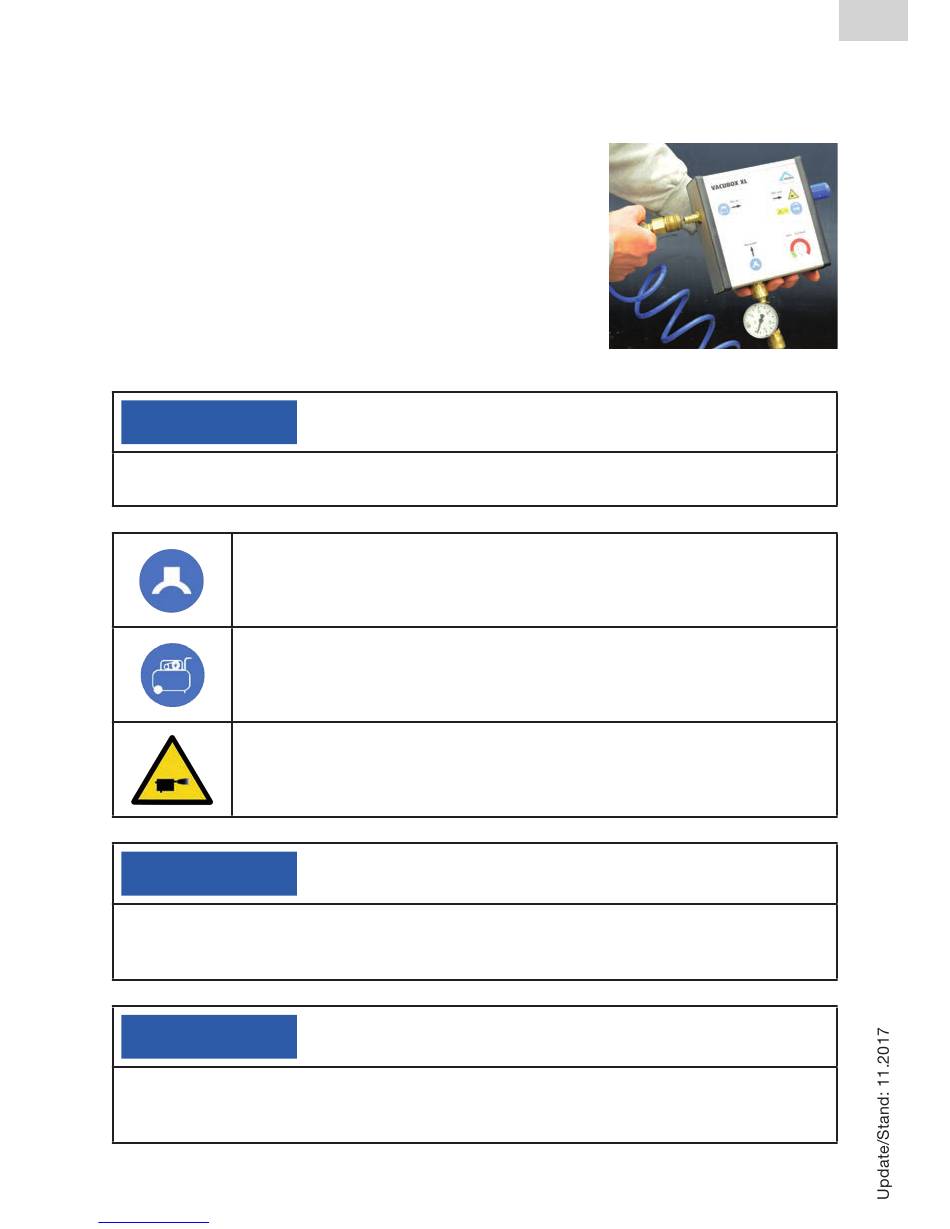

• Mount the manometer
• when processing a spigot saddle either to
the VACUBOX XL (Fig. 2) or alternatively at
the plunger (depending on the processing
situation), or
• when processing a repair saddle to the
VACUBOX XL.
NOTICE
When connecting the hoses, please observe the markings/pictographs at the
VACUBOX XL!
NOTICE
Blow out the compressor!
Before connecting the VACUBOX XL and all the feed lines, blow out the compressor
briefly to clean it so that no dirt can make its way into the venturi nozzle!
NOTICE
Avoid contamination of venturi nozzle!
Dirt in the venturi nozzle can cause a loss of pressure! It may then be necessary to
clean or replace the silencer on the VACUBOX XL.
Downloaded from www.Manualslib.com

Assembly of the vacuum clamping unit

Vacuum:
To connect the FRIALEN XL spigot saddle SA-XL or the FRIALEN XL
repair saddle RS-XL.
Air in:
To connect the construction site compressor.
Air out:
Air outlet.
manuals search engine
Fig. 2
