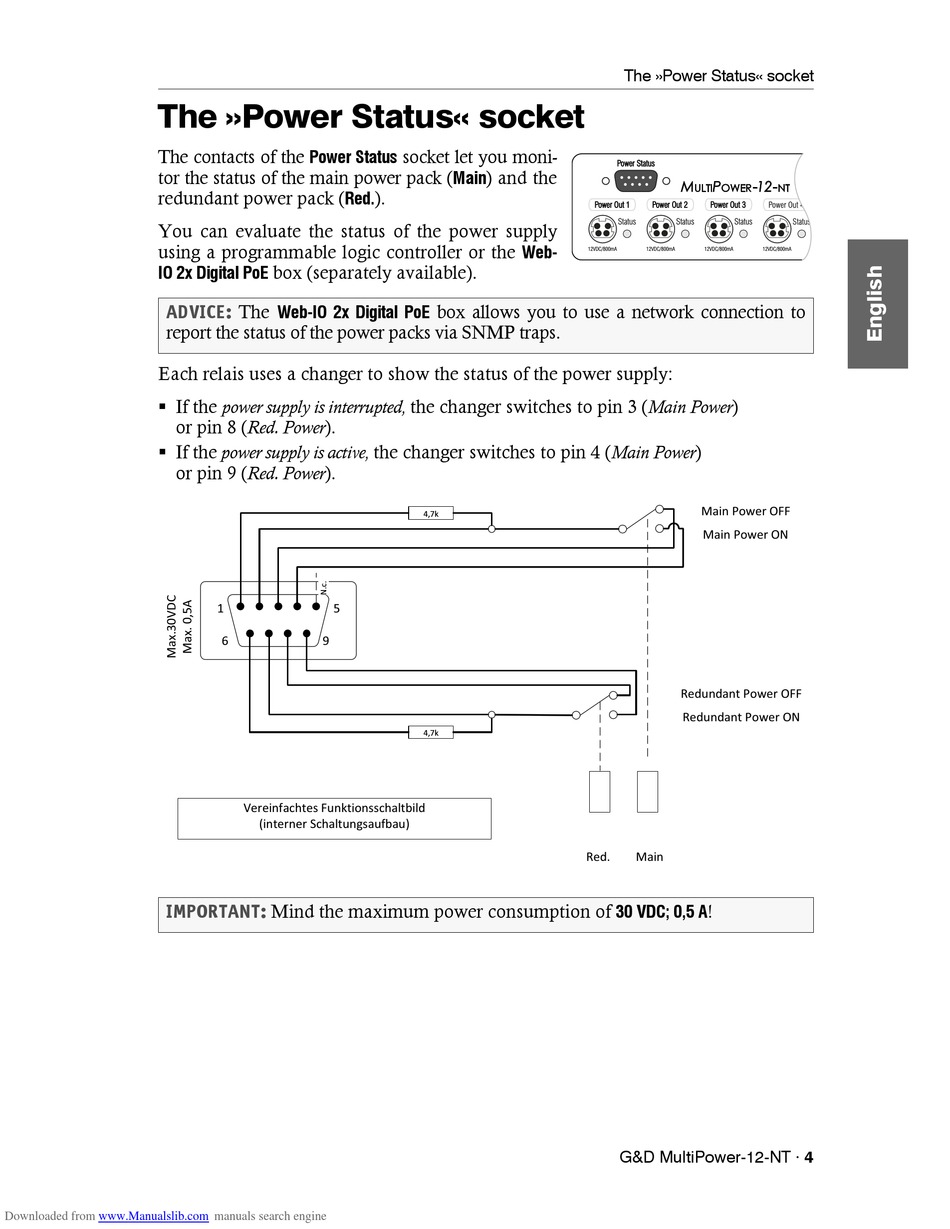

The »Power Status« socket
The contacts of the
tor the status of the main power pack (
redundant power pack (
You can evaluate the status of the power supply
using a programmable logic controller or the
IO 2x Digital PoE
ADVICE:
report the status of the power packs via SNMP traps.
Each relais uses a changer to show the status of the power supply:
 If the power supply is interrupted, the changer switches to pin 3 (Main Power)
or pin 8 (Red. Power).
 If the power supply is active, the changer switches to pin 4 (Main Power)
or pin 9 (Red. Power).
IMPORTANT:
