2. Design and function

2. Design and function

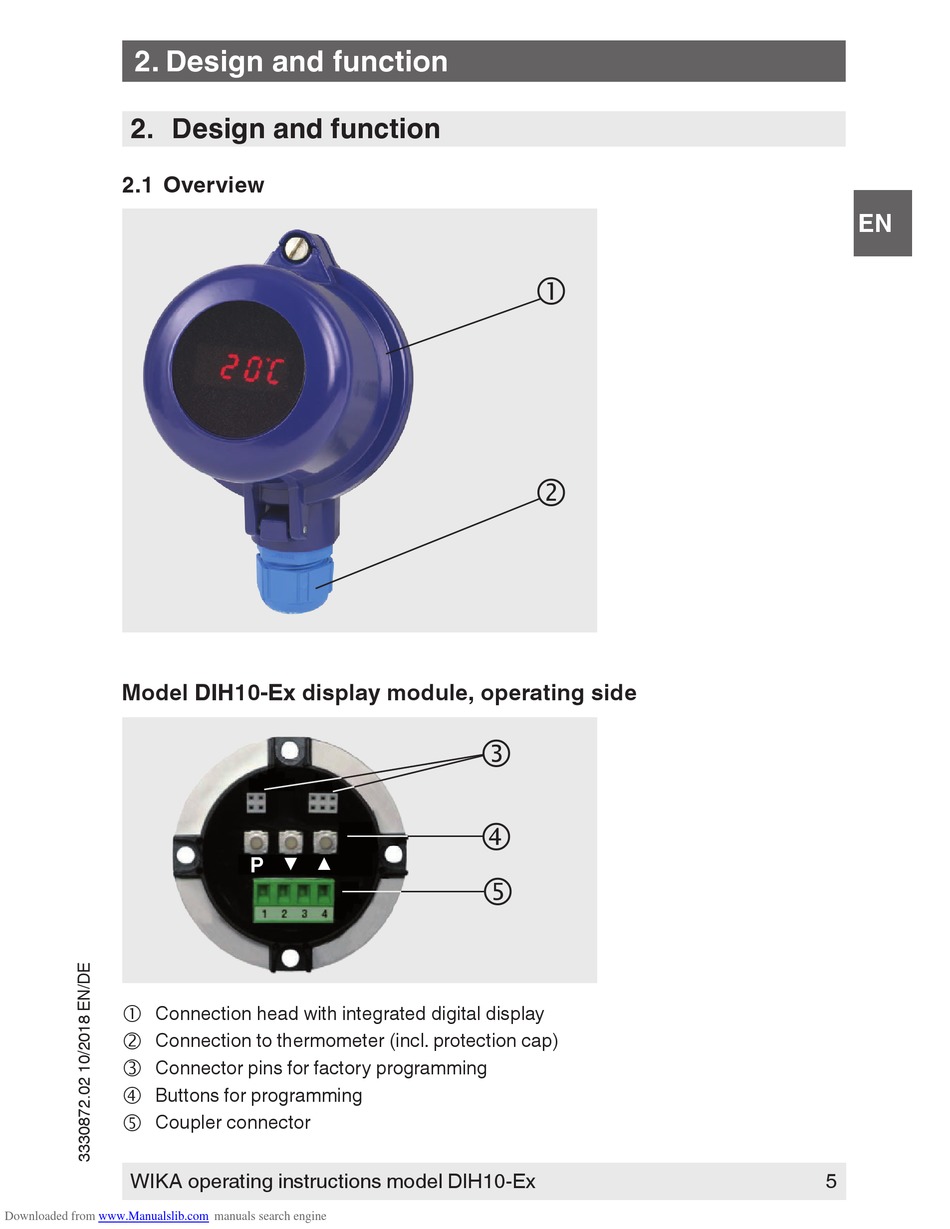

2.1 Overview
Model DIH10-Ex display module, operating side
Connection head with integrated digital display

Connection to thermometer (incl. protection cap)

Connector pins for factory programming

Buttons for programming

Coupler connector

WIKA operating instructions model DIH10-Ex
