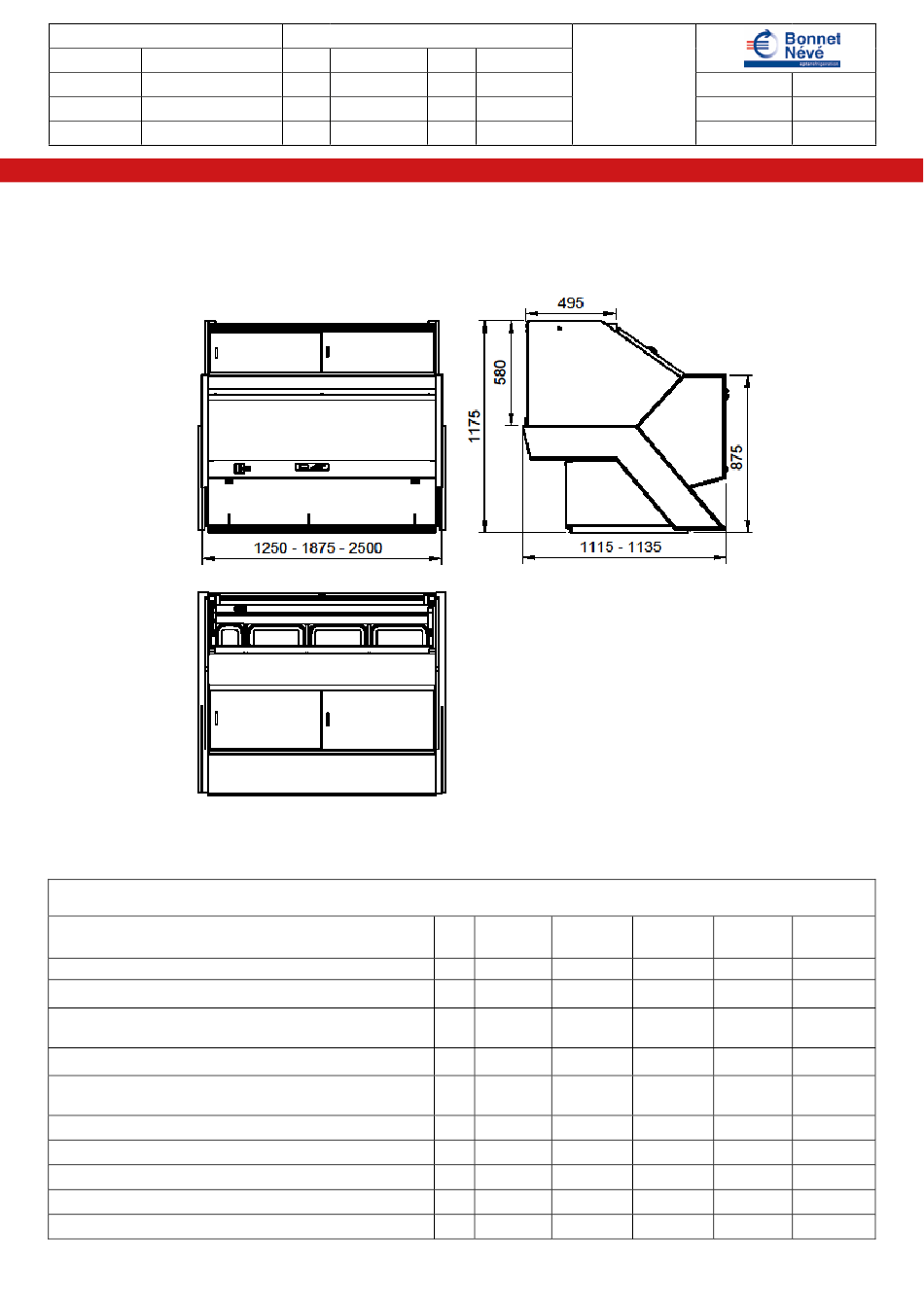

ABMESSUNGEN UND INSTALLATIONSSCHEMA
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES / CARACTÉRISTIQUES
Ingresso acqua/Water inlet/Entrée eau/Wassereintritt/Entrada de agua
Scarico acqua/Water drainage/Vidange de l'eau /
Wasserablauf/Desagüe
Tensione alimentazione 50 Hz-3N/Power supply voltage 50 Hz-3N
Tension d'alimentation 50 Hz-3N/Versorgungsspannung 50 Hz-3N
Voltaje de alimentación 50 Hz - 3 N
Consumo elettrico / Electrical consumption / absorption électrique
elektrische Absor
tion /
absorción eléctrica
Potenza elettrica assorbita/Power consumption
Puissance électrique absorbée/Leistungsaufnahme
Potencia eléctrica absorbida
Illuminazione cappello / Top canopy light / Eclairage superieure / Zahlplatte licht /
Iluminación superior
Ventilatori vasca / base deck fans / ventilateurs cuve/ Ventilatoren Becken/ ventilador cuba
Lampade infrarossi/ infrared lamp / Lampe infrarouge / Infrarotlampen/ Lámpara infrarrjo
Resistenza adesiva / Adhesive heating element / Resistance adhesive / Klebeheizung /
Resistencia adhesiva
Resistenza alettata / Finned heating element / Resistance à ailettes /
Rippenheizung/Resistencia aleteada
STATE REVISION OF THE CHAPTER
ORD.
DATE
A
18.03.2019
B
C
TECHNIQUES / TECHNISCHE MERKMALE CARACTERÍSTICAS TÉCNICAS
IN CONFORMITY
WITH THE
APPROVED
ORD.
DATE
ORIGINAL
D
E
F
Shape
Shape
Velvet
Velvet
1250
1875
3/4"
3/4"
3/4"
3/4"
V~
230
400+N
kWh
1.83
3.65
W
2747
5476
W
27
36
W
20
40
W
400
800
W
700
1400
W
1600
3200
PAGE
4/23
FIRST ISSUE
29.08.18
MKTG
ISSUE
Shape
Velvet
2500
3/4"
3/4"
400+N
3.66
5494
54
40
800
1400
3200
