Basic Wall Mount

Attaching control unit to wall mount

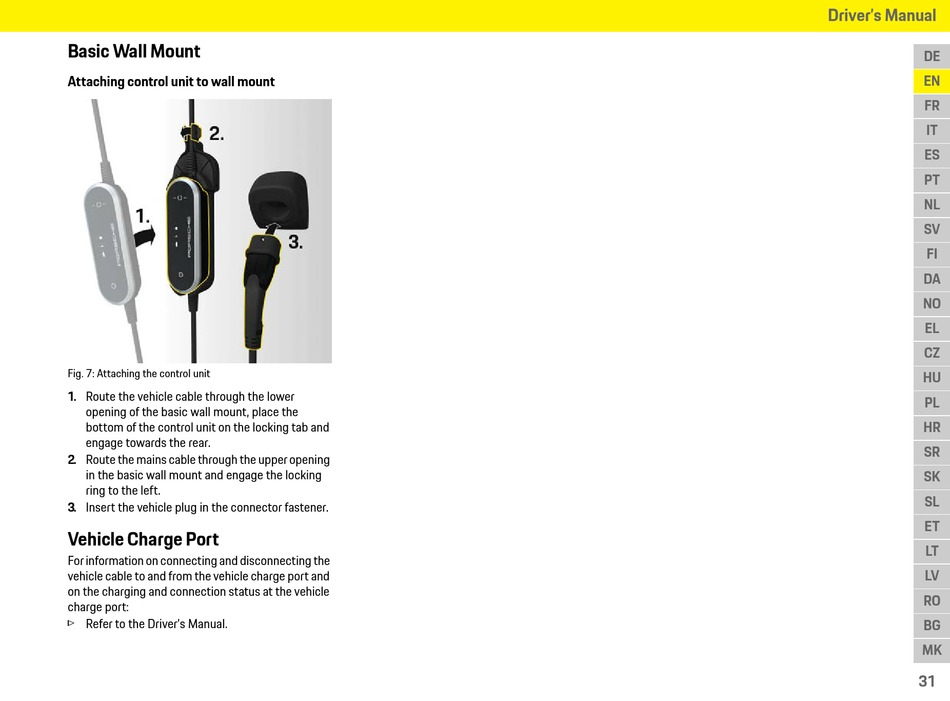

Fig. 7: Attaching the control unit
1. Route the vehicle cable through the lower
opening of the basic wall mount, place the
bottom of the control unit on the locking tab and
engage towards the rear.
2. Route the mains cable through the upper opening
in the basic wall mount and engage the locking
ring to the left.
3. Insert the vehicle plug in the connector fastener.

Vehicle Charge Port

For information on connecting and disconnecting the
vehicle cable to and from the vehicle charge port and
on the charging and connection status at the vehicle
charge port:
f Refer to the Driver's Manual.
