General

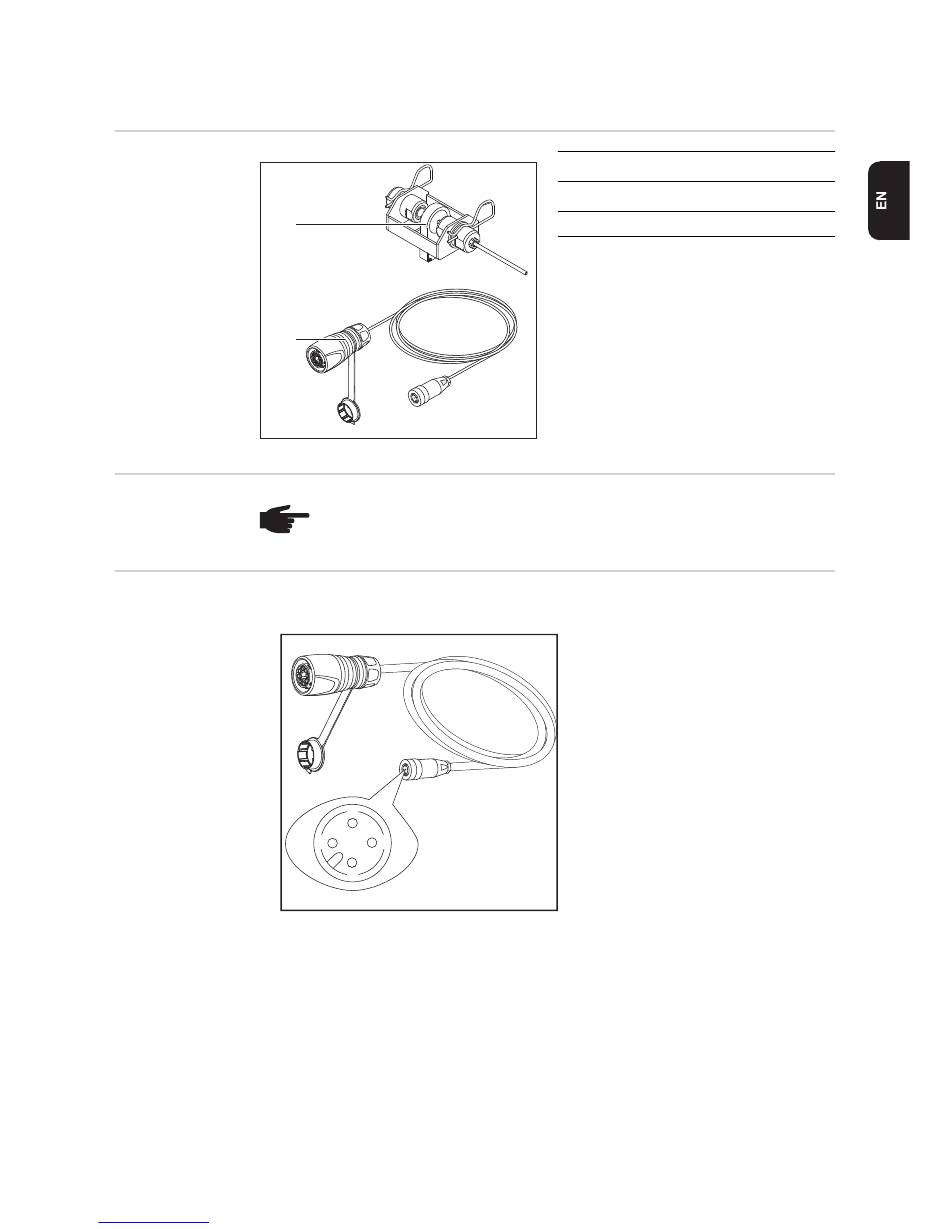

Scope of supply

Prerequisites

Pin assignments

Downloaded from www.Manualslib.com
(1)
(1)
NOTE! The OPT/i WF R wire end ring sensor can only be used if an OPT/i ext.
sensor plug has been installed in the respective wirefeeder or SplitBox.
Pin assignment of connecting cable plug:
3.
2. 4.
1.
manuals search engine
(1) Sensor with holder
(2) Connecting cable
(3) This document (not shown)
1. BN = brown
2. Not used
3. BU = blue
4. BK = black
15
