Seite 1

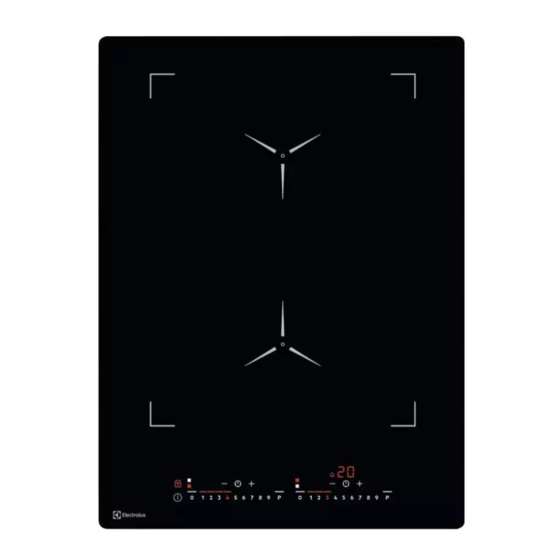

GK 38TSi O, (GK 38TS O), WOK 38TSi O Profiline-Modular-System: 2x 38er Système modulaire Profiline: 2x 38 Sistema modulare Profiline: 2x 38 Einbau: aufliegend Encastrement: posé Incasso: appoggiato 1,4 m 230 V (16 A) 3 8 0 3 8 0...
Seite 2
GK 38TSi O, (GK 38TS O), WOK 38TSi O Profiline-Modular-System: 2x 38er Système modulaire Profiline: 2x 38 Sistema modulare Profiline: 2x 38 Einbau: flächenbündig Encastrement: à surfaces jointives Incasso: con superfici livellate 1,4 m 230 V (16 A) Stecker Typ/...
Seite 3
WOK 38TSi O, GK 58-3TSi O Profiline-Modular-System: 1x 38er, 1x 58er Système modulaire Profiline: 1x 38, 1x 58 Sistema modulare Profiline: 1x 38, 1x 58 Einbau: aufliegend Encastrement: posé Incasso: appoggiato 5 8 0 3 8 0 1,4 m 400 V 2NE (7,4 kW) 5 - 6 5 1 0...
Seite 4
WOK 38TSi O, GK 58-3TSi O Profiline-Modular-System: 1x 38er, 1x 58er Système modulaire Profiline: 1x 38, 1x 58 Sistema modulare Profiline: 1x 38, 1x 58 Einbau: flächenbündig Encastrement: à surfaces jointives Incasso: con superfici livellate 1,4 m 5 8 0 400 V 2NE 3 8 0 (7,4 kW)
Seite 5
GK 38TSi O, (GK 38TS O), TY 38TSi CN, WOK 38TSi O Profiline-Modular-System: 3x 38er Système modulaire Profiline: 3x 38 Sistema modulare Profiline: 3x 38 Einbau: aufliegend Encastrement: posé Incasso: appoggiato 1,4 m 230 V (16 A) 1,4 m 3 8 0...
Seite 6
GK 38TSi O, (GK 38TS O), TY 38TSi CN, WOK 38TSi O Profiline-Modular-System: 3x 38er Système modulaire Profiline: 3x 38 Sistema modulare Profiline: 3x 38 Einbau: flächenbündig Encastrement: à surfaces jointives Incasso: con superfici livellate 1,4 m 1,4 m 230 V (16 A)
Seite 7
GK 38TSi O, (GK 38TS O), TY 58TSi CN, WOK 38TSi O Profiline-Modular-System: 1x 38er, 1x 58er, 1x 38er Système modulaire Profiline: 1x 38, 1x 58, 1x 38 Sistema modulare Profiline: 1x 38, 1x 58, 1x 38 Einbau: aufliegend Encastrement: posé...
Seite 8
GK 38TSi O, (GK 38TS O), TY 58TSi CN, WOK 38TSi O Profiline-Modular-System: 1x 38er, 1x 58er, 1x 38er Système modulaire Profiline: 1x 38, 1x 58, 1x 38 Sistema modulare Profiline: 1x 38, 1x 58, 1x 38 Einbau: flächenbündig Encastrement: à surfaces jointives...
Seite 9
WOK 38TSi O Induktions-Wok – Plan de cuisson à induction Wok – Wok ad induzione Einbau: WOK aufliegend Encastrement: WOK posé Incasso: WOK appoggiato 3 8 0 1,4 m min. 5 (mit/avec/con TSB... min. 3) 230 V (16 A) Stecker Typ/ 3 6 0 Type de prise/ Spina tipo 23...
Seite 10
WOK 38TSi O Induktions-Wok – Plan de cuisson à induction Wok – Wok ad induzione Einbau: WOK flächenbündig Encastrement: WOK à surfaces jointives Incasso: WOK con superfici livellate 3 8 0 R 1 0 3 6 0 1,4 m 230 V (16 A) min.
Seite 11
Detail GK...O in Glas-Arbeitsplatten GK...O dans des plans de travail en verre GK...O in piani di lavoro in vetro Einbau: flächenbündig in Glas-Arbeitsplatten Encastrement: à surfaces jointives dans des plans de travail en verre Incasso: con superfici livellate in piani di lavoro in vetro Glas-Arbeitsplatte * Höhen-Ausgleichsleiste (z.B.
Seite 12
Montage mehrerer Geräte mit Verbindungs-Traverse Produkte modular flächenbündig einbauen: Mit der Verbindungs-Traverse (Einbauzubehör) lassen sich die Geräte mit einer 3 mm Silikon-Zwischenfuge direkt nebeneinander einbauen Montage mehrerer Geräte: • Ausschnitt und Falz der Arbeitsplatte gemäss Masszeichnungen erstellen • Verbindungs-Traverse vorne/hinten gemäss Skizze in den Falz auflegen (wird nicht verschraubt) Distanz zwischen Arbeitsplatten-Ausschnitt und Verbindungs-Traverse ..
• Bei Kochinseln (hinten ohne Öffnung) kann anstelle der ProBox ein TSB angewendet werden (erfordert einen Luftspalt von 3 mm) Bei Kochfeldern mit Breitrahmen, WOK 38TSi O, TY 38TSi cn, TY 58TSi cn, GK 38TSi O, GK 38TS O und GK 29TS O kann keine ProBox angewen- det werden.
Seite 14
6/6 o sopra un forno Profi Steam. I piani di cottura a induzione della Electrolux sono ventilati e necessitano di uno spazio minimo per lo scarico dell’aria. Tra il piano di lavoro e il bordo superiore del pannello frontale (o apparecchio da incasso), installato sotto di esso, deve rimanere una fessura di ventilazione di almeno 3 mm per tutta la larghezza della nicchia.
Seite 15
TSB 100/150-GK Temperatur- und Berührungsschutzblech für Induktions-Kochfelder Protection contre la chaleur et les contacts pour plans de cuisson à induction Protezione contro la temperatura e le scariche per piani di cottura a induzione TSB 100/150-GK (verstellbar/ réglable/regolabile) für/pour/per B 96,0, 106,0, 116,0, 126,0, 136,0 und/et/e 146,0 cm min.
