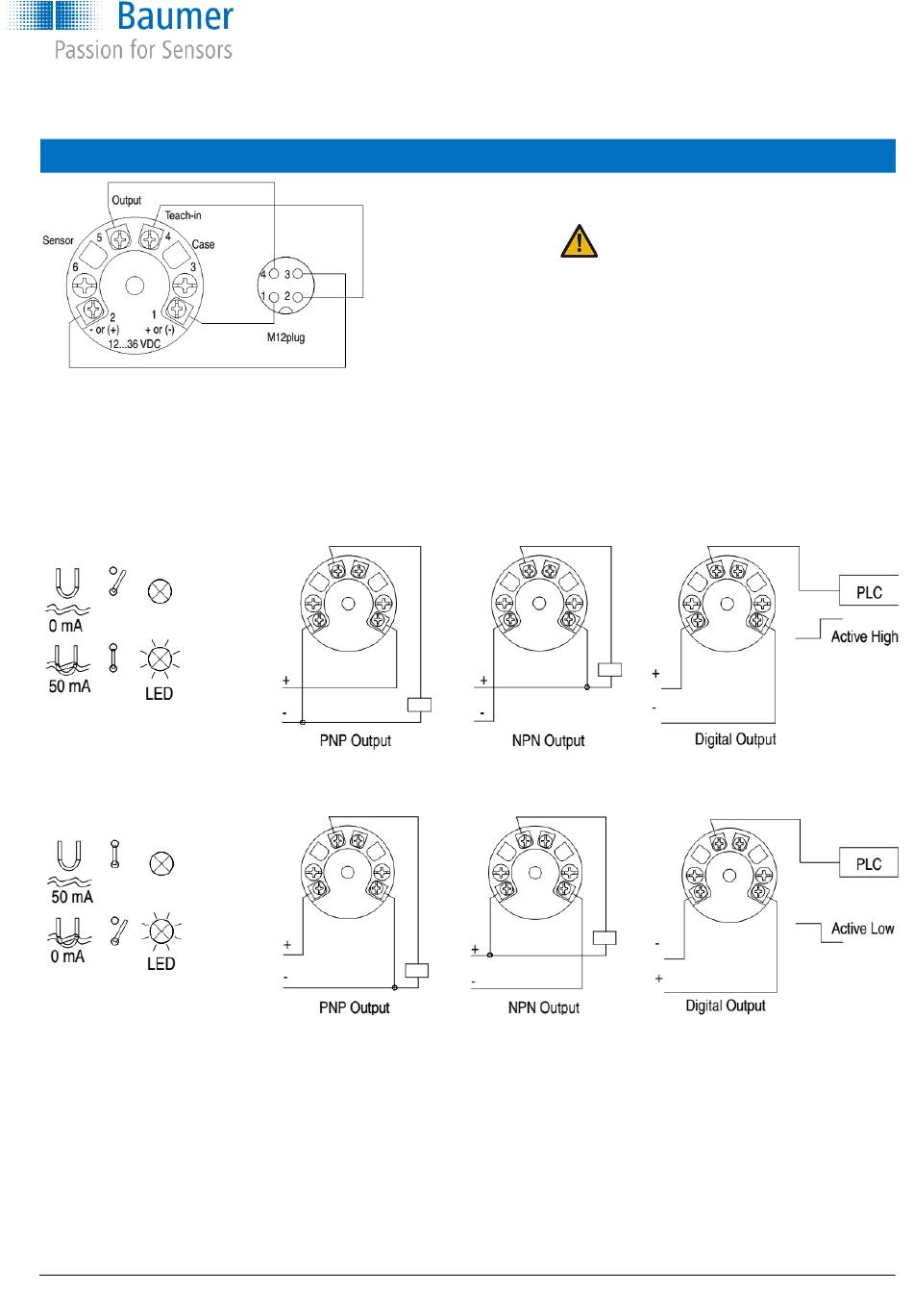

Electrical connection

Electrical specifications:
Power supply 12,5...36 VDC, 35 mA max.
Output PNP, NPN or Digital
Max. 50 mA, short-circuit and high
temperature protected
Normally open - NO
Normally closed - NC
www.baumer.com
Operating instructions
CleverLevel switch, LFFS
M12 plug: 1 Brown
2 White*
3 Blue
4 Black
Active "Low"
Active "High"
5
1
2
5
2 1
Operating instructions: 11109132 13 EN
WARNING
* To avoid unintended Teach-In, be aware
not to connect the Teach-In pin or expose it
to any electrical noise during normal opera-
tion.
NPN and Digital output
(-VDC +2,5V) ±0,5V, R
PNP and Digital output
(+VDC -2,5V) ±0,5V, R
5
2 1
5
1
2
= 1 kΩ
load
= 1 kΩ
load
5
1
2
5
2 1
Page 7 / 20
