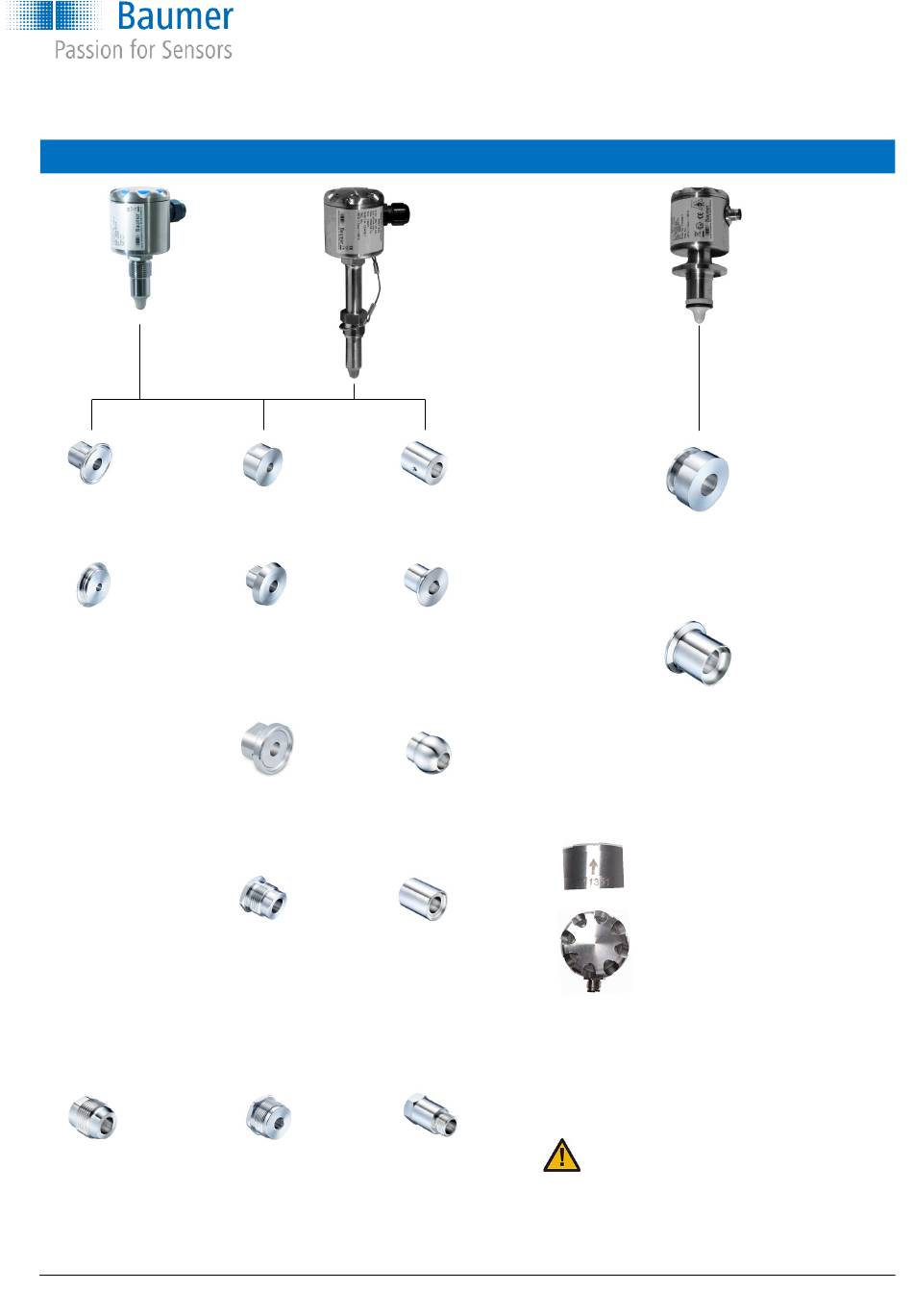

Mounting connections
ISO2852
DN38: ZPH3-3213
DN51: ZPH1-3236
DN51: ZPH3-3216
®
Varivent
, type N
ZPH3-324E
DN25: ZPH3-3221
®
Varivent
, type F
DN40: ZPH3-3224
ZPH3-344F
DN50: ZPH3-3225
DIN 11864-1-A
DN 40: ZPH3-3254
DN 50: ZPH3-3255
G¾A: ZPH1-32BA
G1A: ZPH1-32CB
G¾A: ZPH1-32BC
G1A: ZPH1-32CD
Adapter
Adapter, industrial
G½ → G1
G½ → G1: ZPI1-32B
ZPH1-32C0
G½ → G1½: ZPI1-32D
G½ → G2: ZPI1-32E
www.baumer.com
SMS 1145
ZPW3-321
DIN 11851
ZPW3-322
Welding Ø35
for tank/tube
ZPW2-324
Adapter
EH FTL
to pipe extrusion
DN 25...DN 50: ZPW2-326
DN 65...DN150: ZPW2-327
VS
3-A approved
DN 25...DN 50: ZPW3-326
DN 65...DN 150: ZPW3-327
Adapter, industrial
Sliding connection
G½ → G½ DIN 3852-E
ZPI1-32A
Operating instructions: 11109132 13 EN
Operating instructions
CleverLevel switch, LFFS
Welding
for tank
Welding
for tank
Welding
Refer to adaptor instruction manual for further infor-
mation
The LFFS must be mounted in a Baumer mounting
connection.
If not, Baumer do not guarantee correct function or
tightness.
Welding
for tank
ZPW2-621
Welding
for pipe end
ZPW2-626
On a welding adapter there is an
arrow or a leakage hole.
This must be placed downwards
when welding the adapter into a tank
(horizontal position).
This assures that the electrical con-
nection will be pointing downwards
NOTE:
