INSTALLATION

6.1

INSTALLATION DIMENSIONS

The the built-in rotary flange may be mounted in both horizontal and vertical pipes.
Installation dimensions
A: Fitting length with screw connection
A: Fitting length without screw connection
B: Unit width
C: Height above pipe centre
D: Height below pipe centre
E: Depth to pipe centre
F: Waste water connection centre to pipe centre
G: Connection dimension waste water
G1: Connection dimension waste water (alternative) 13
All dimensions in [mm]

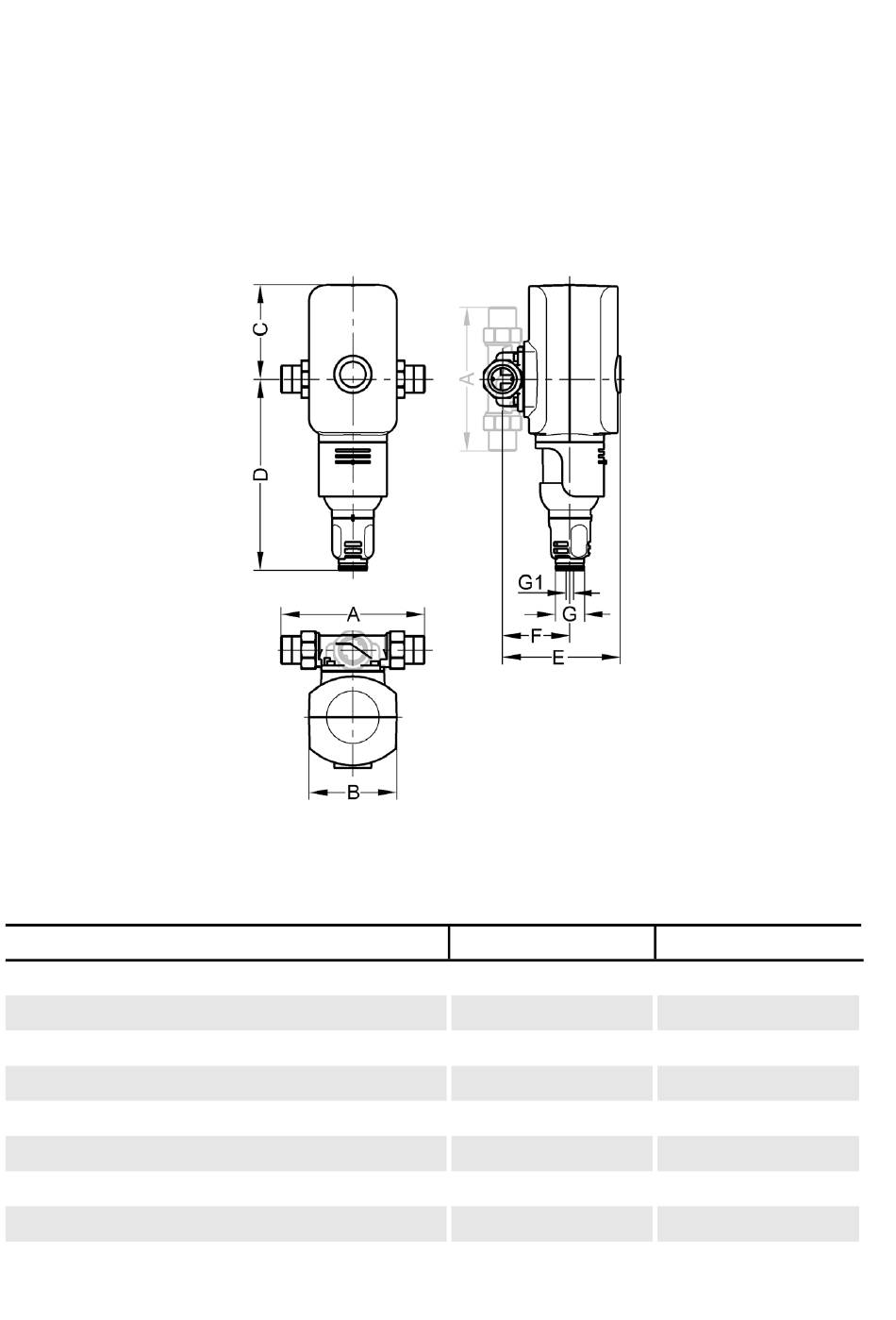

Fig. 4: Installation dimensions
CLEAR 2.0 R 1½"
252
160
154
166
335
207
118
50
CLEAR 2.0 R 2"
280
164
154
166
335
215
126
50
13
