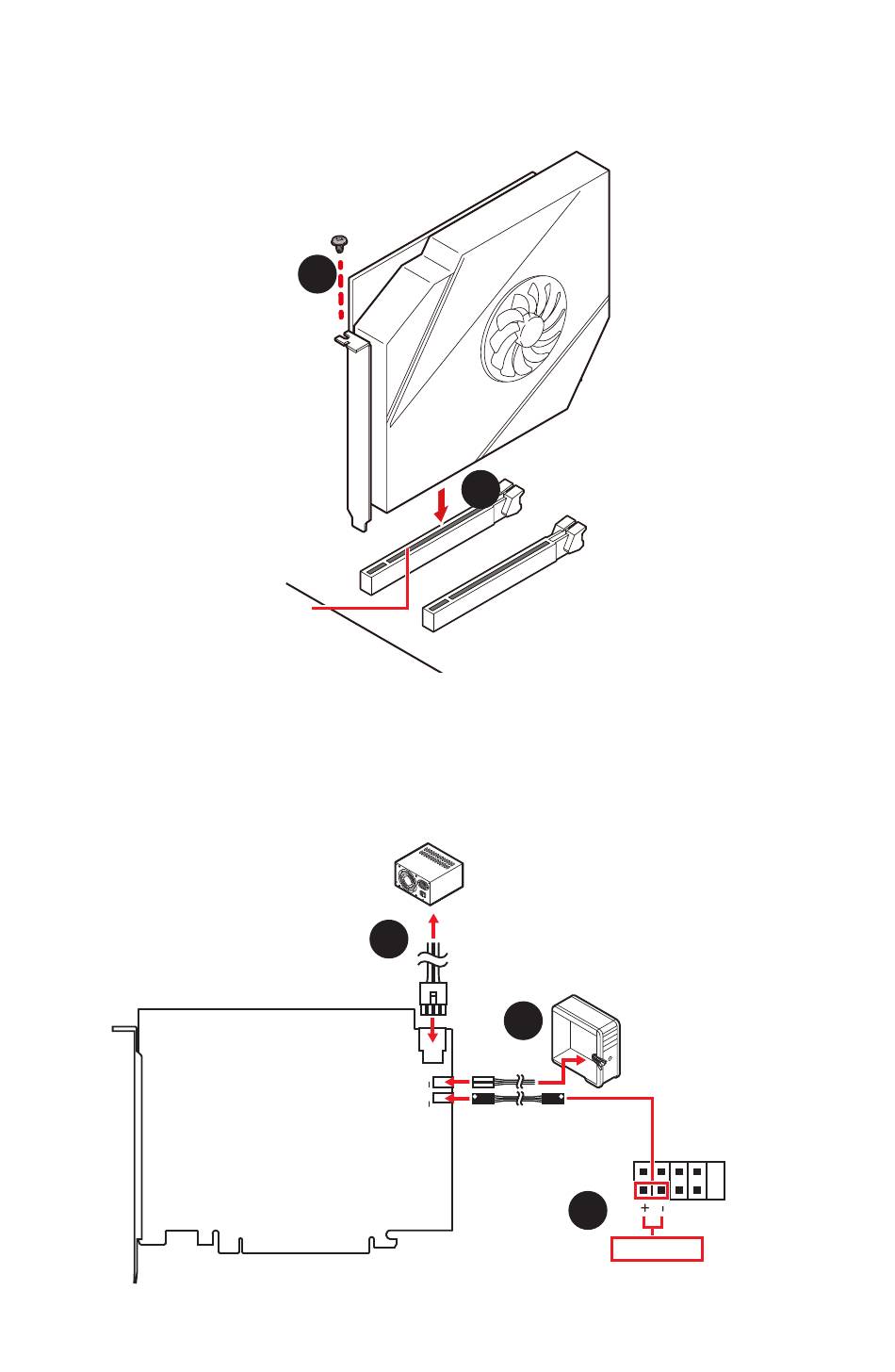

9. Insert the M.2 XPANDER-Z card into the PCI_E3 slot.
10. Use a screw to secure the M.2 XPANDER-Z card.
11. Connect the PCIE_PWR1 to the power supply.
12. Connect the case's HDD LED cable to the JCASE connector.
13. Using the supplied HDD LED cable to connect the JMB connector and JFP1's HDD
pins (pin 1 & pin3).
