Mitel OpenCom 100 serie Kurzanleitung Installation Seite 2

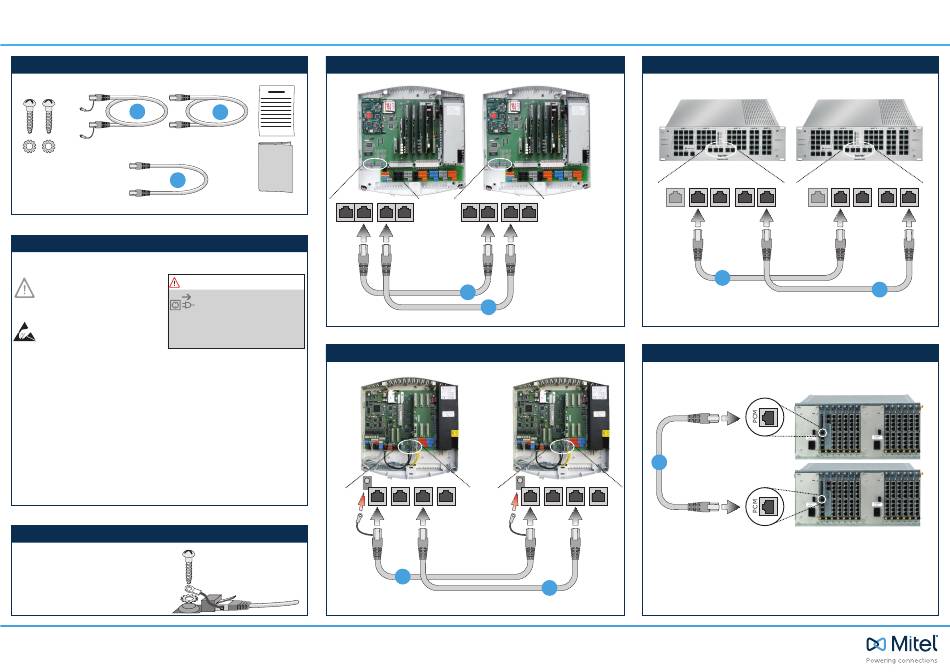

OpenCom 100 Cascading
Cascading Set: Scope of Delivery
4 CAT5 Ethernet STP patch cables:
Fastening set
for cable A:
A
length: 2 m, with
earth connection
2 screws,
2 lock washers
C
length: 0.5 m
Installation Notes
Safety instructions
PBX cascading may only be carried out by
Danger! Dangerous voltage in device!
qualified experts. Please also follow the
safety instructions in the OpenCom's
"Mounting and Commissioning" guide.
Caution! Static charge can damage electronic
devices. Observe the regulations regarding
electrostatically sensitive components!
Other valid documentation
This short installation guide is only valid with the "Mounting and Commissioning" guide which
is included, in the form of a PDF file, on the OpenCom 100 product CD. The latest version of the
"Mounting and Commissioning" guide is also available on the Aastra website. You can download
it from the password-protected partner area: https://portal.aastra-detewe.de.
For detailed information on PBX Cascading, please refer to the "PBX Cascading" chapter
in the "Mounting and Commissioning" guide.
Licence information
For the PBX Cascading you will need a licence.
The licence agreement (included in the cascading set's scope of delivery) provides you with
the necessary steps to activate this function.
Open Com 130 – OpenCom 130: Earth Connection
Connect earth to both PCM ports:
1. Connect cable A to PCM ports.
2. Connect earth (to each PCM port).
Item No.: 41-001294-00
As of March 2015
© Mitel Networks Corporation • http://www.mitel.com
Short Installation Guide
OpenCom 150 – OpenCom 150
Licence
B
2x
length: 2 m
Short installation
LAN0 LAN1
guide
Disconnect master and slave system
from the mains supply!
With an OpenCom 510:
If a 1-12 frame is being powered by
two power supply units, pull both
mains plugs out of the power socket!
OpenCom 130 – OpenCom 130
PCM
PCM1: voice data lead
LAN2: administration data lead
Master system Slave system
PCM1 PCM2 LAN0 LAN1 PCM1 PCM2
Note: For the OpenCom 150
(wall version), the availablity
of the required ports depends
on the hardware version.
B
B
PCM1: voice data lead
LAN1: administration data lead
Master system Slave system
LAN1 LAN2 LAN0 PCM LAN1
earth connection
required!
(see figure left)
A
B
OpenCom 150 Rack – OpenCom 150 Rack
Master system
S2M/PRI PCM1 PCM2 LAN0
B
OpenCom 510 – OpenCom 510
C
LAN2 LAN0
Slave system
LAN1 S2M/PRI PCM1 PCM2 LAN0 LAN1
B
PCM1: voice data lead
LAN1: administration data lead
1-12 frame: master system
1-12 frame: slave system
PCM port of the central control module MC+1-3:
voice and administration data lead
