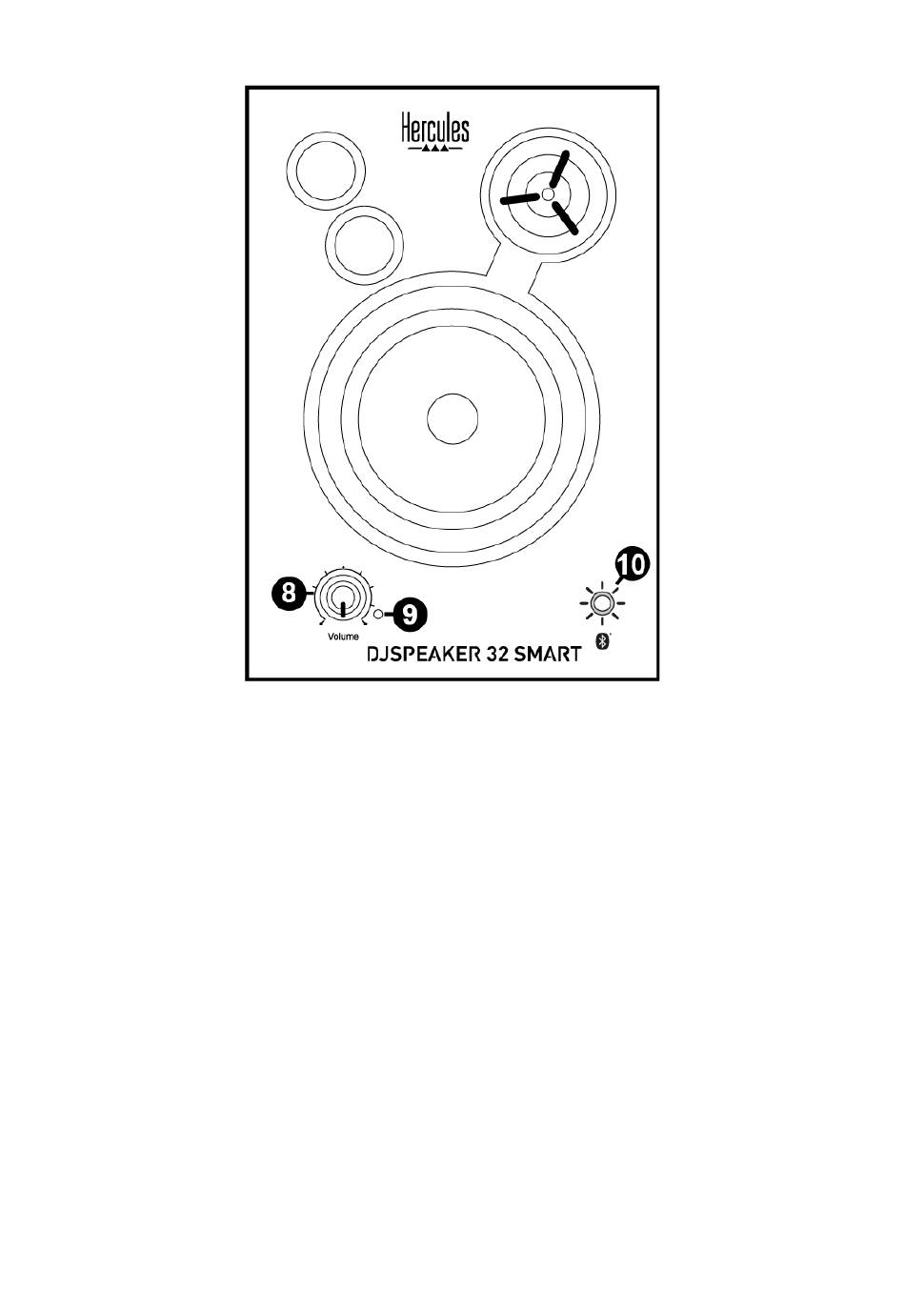

- Right speaker with controls:
8: Master volume control knob
9: Power LED
10: Bluetooth® pairing button and LED
2.2.1. Connection to a PC/Mac®
Connect your speaker kit's main audio input (RCA connectors on the back of the right satellite speaker) (5) to
-
the green FRONT SPEAKERS or FRONT OUT connector on your sound card or on the sound card integrated
into your computer's motherboard, using the included male jack / 2 male RCA cable.

2.2.2. Connection to a television set equipped with a headphone jack

Connect your speaker kit's main audio input (RCA connectors on the back of the right satellite speaker) (5) to
-
the headphone jack on your television set.
2.2.3. Connection to a DVD player/television set equipped with Left and Right
audio outputs
Requires a female jack / 2 male RCA cable (not included – please see diagram A, below).
1. Connect your male jack / 2 male RCA cable to the female jack / 2 male RCA cable.
2.
Connect the white RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
3.
Connect the red RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
