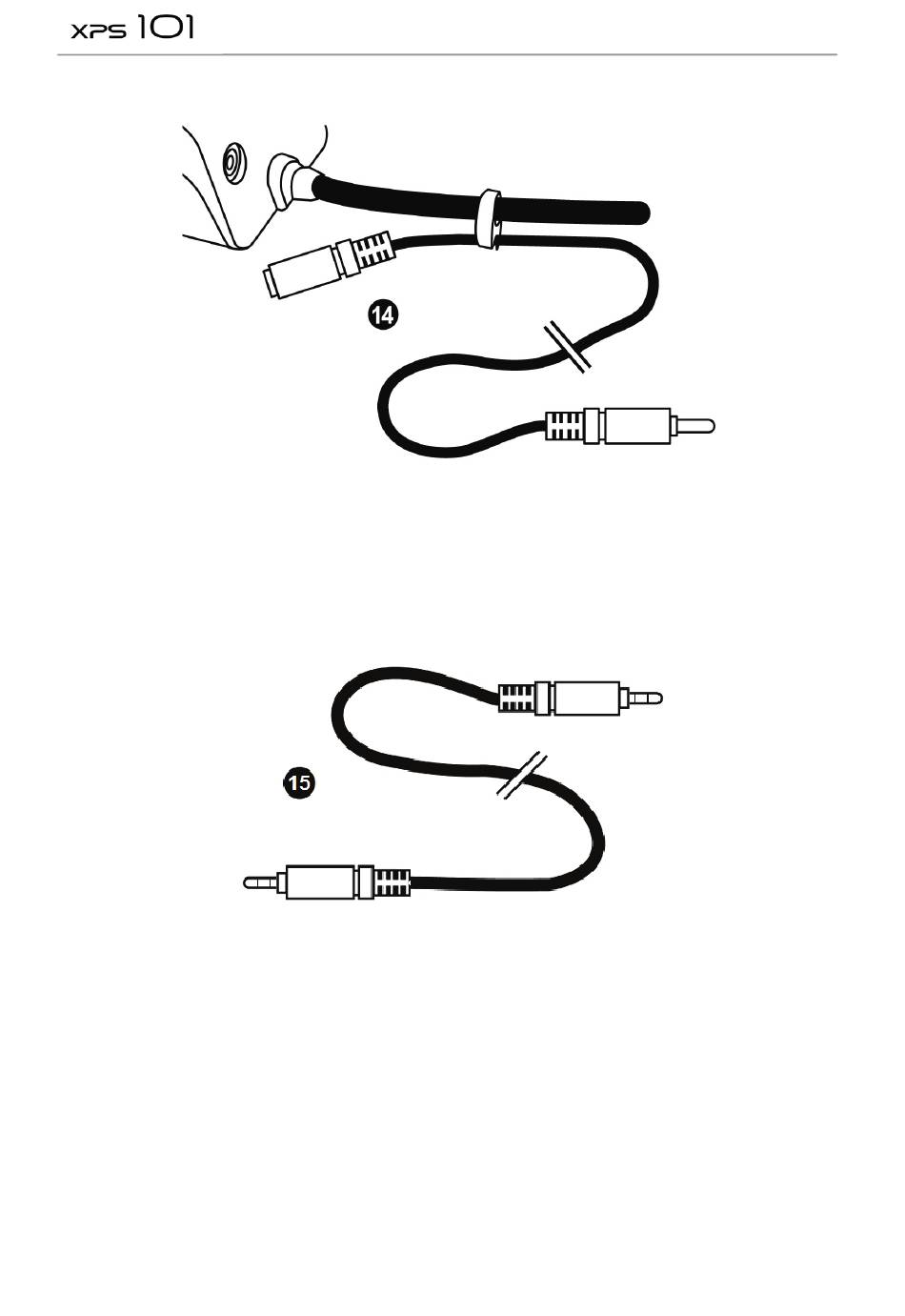

14: Microphone cable: pink mini-jack (M) / pink mini-jack (F) and Cable clamp
If you have a headset which includes a microphone, you can connect your headset's microphone
connector to this extension. For easier management of the cables, you can clip this cable to the
remote control's cable, using the included cable clamp (14) (as shown above).
15: Cable for main audio input: mini-jack (M) / mini-jack (M).

2.2.1. Connection to a PC

- Connect the 3.5mm mini-jack connector on your speaker system's main audio input cable to the
green FRONT SPEAKERS or FRONT OUT connector on your sound card or on the sound card
integrated into your computer's motherboard.

2.2.2. Connection to a television set equipped with a headphone jack

- Connect the 3.5mm mini-jack connector on your speaker system's main audio input cable to the
headphone jack on your television set.
6/10 – User Manual
