Technical data

Processor
Video input
Input impedance
Auto gain
Video output
Video format
Frame rate
Sampling rate
Resolution
Software encoder
Audio (mono/pseudo stereo)
line-in
Audio (mono/pseudo stereo)
line-out
Image memory
Motion detection
Alarm I/O
Serial interface
LAN interface
Temperature range
Voltage range
Power loss

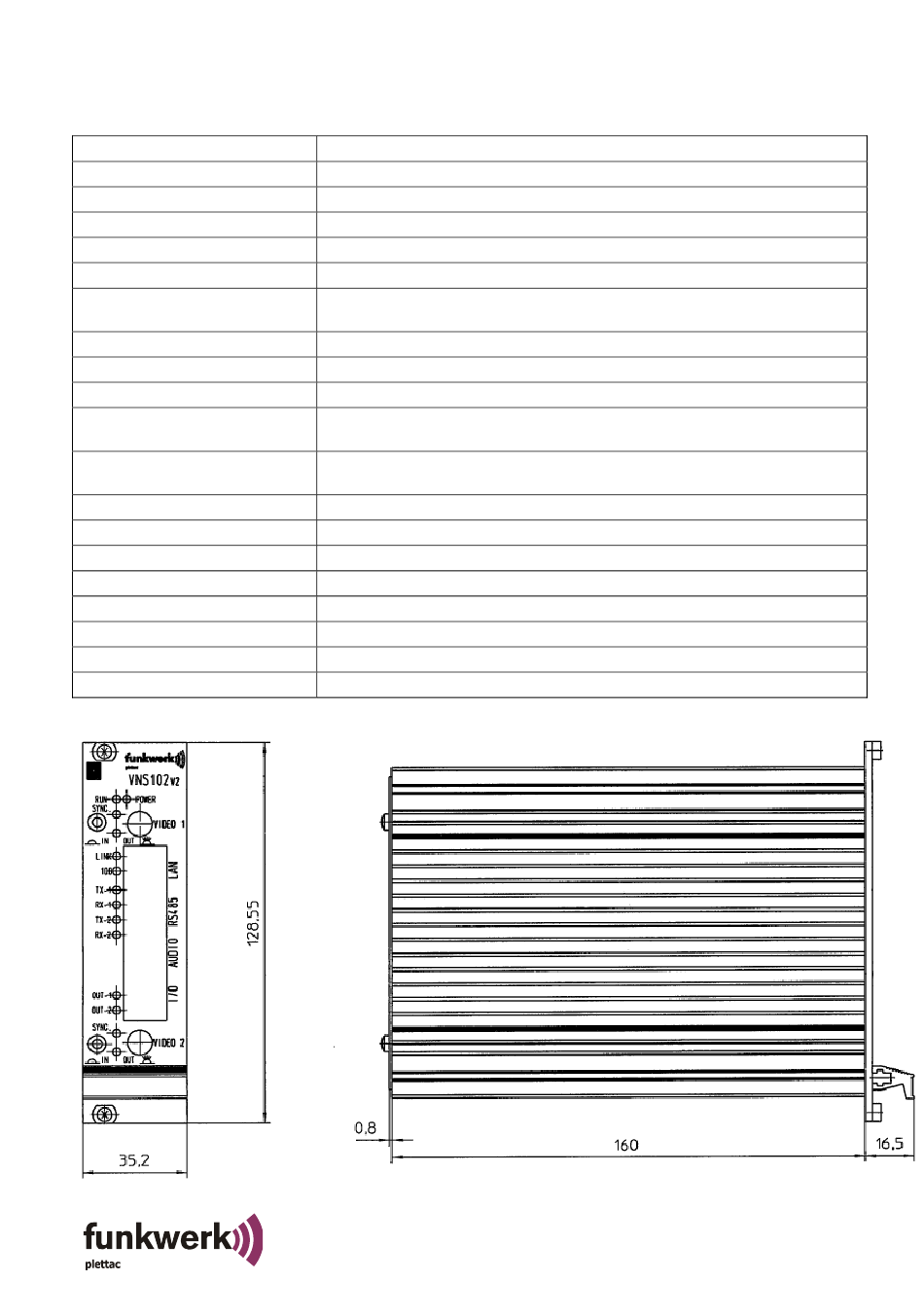

Dimension diagram VNS 102V2

TI DSP TMS320 DM642-720MHz
2 FBAS inputs
75 Ω
-3 dB to +6 dB
2 FBAS outputs, 75 Ω
PAL, NTSC
Full frame interlaced 50-/60 fields/s, full frame or half frame from 0.1fps to 30
fps/channel
ITU-R BT.601
Full D1, 2CIF, CIF, QCIF
MPEG-4 (simple profile & advanced simple profile) ISO/IEC 14496-2
Line in, (600 Ohm; symmetric; 8/16/32kHz sample rate), 1V
Line out, (differential mono/pseudo stereo) 600 Ohm; symmetric; 1V
128 MB SDRAM on board (ca. 83 MB video/audio alarm memory)
16 fields
2 alarm inputs and 2 open collector outputs (potential-free)
2 RS485 full or half duplex
Ethernet 10/100BaseT full duplex
max. +80° board temperature (-15°C to +60 °C ambient temperature)
9.5V – 32V DC
ca. 6W
