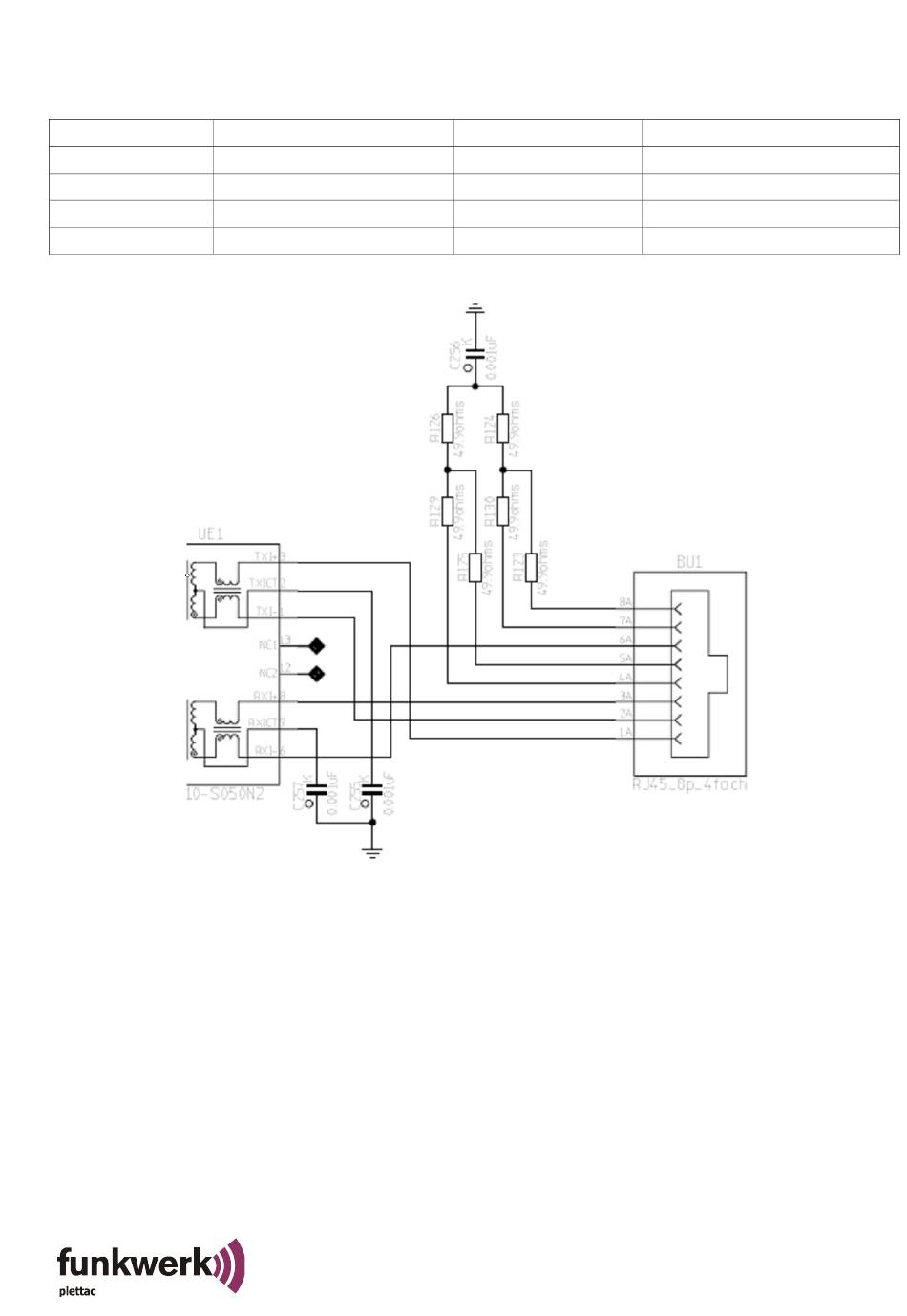

LAN interface

The LAN interface corresponds to the standard IEEE802.1 with 10/100Mbit (autosense) via cat-5 cable
(10/100BaseT). An RJ45 connector is located on the front of the VNS 102V2 for LAN connection (labelled
"LAN").
Signal RJ45 "LAN"
TX+
RX+
Pin Signal
1
3
5
7
25
RJ45 "LAN"
TX-
RX-
Pin
2
4
6
8
