6
53
Catalogue Section 6

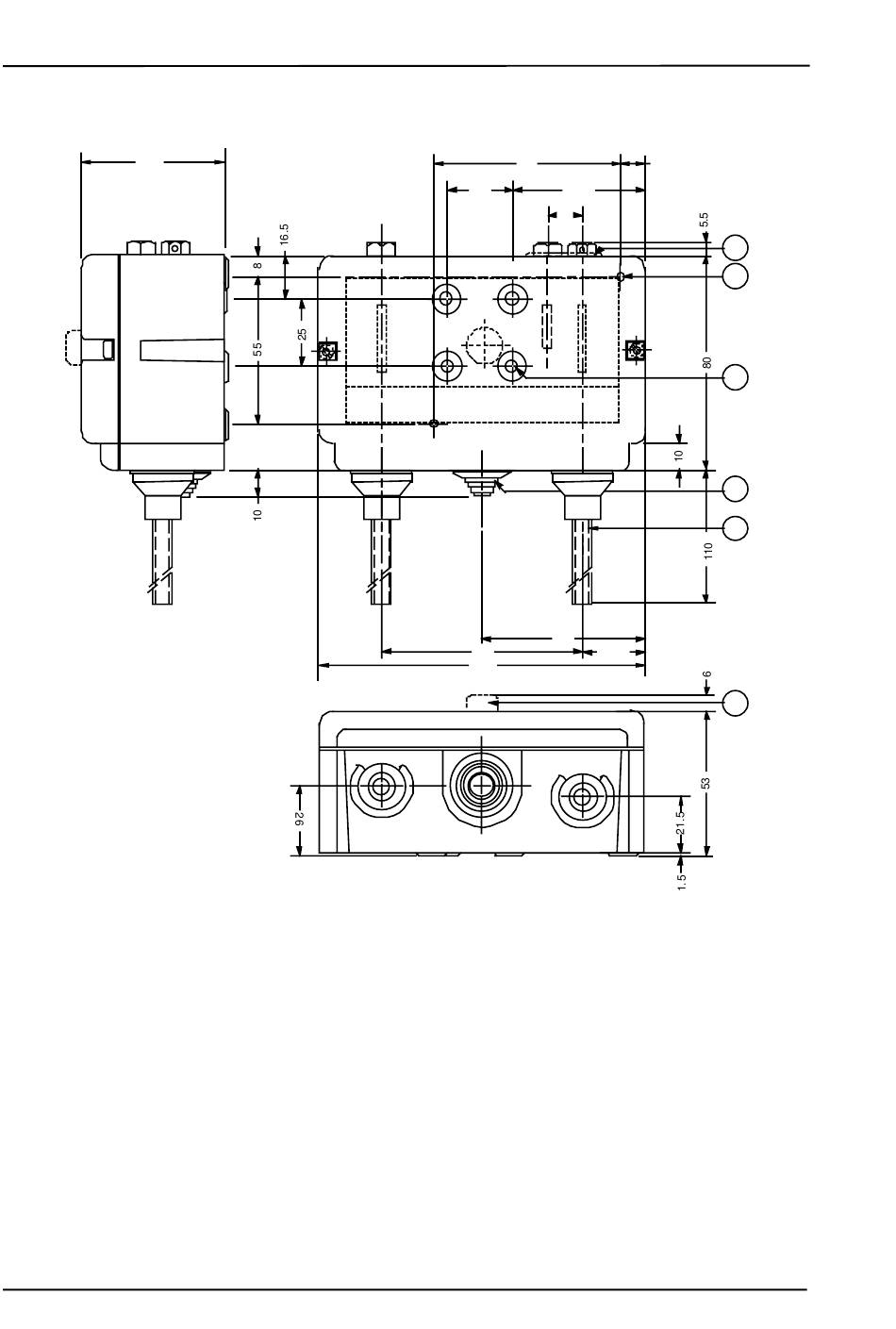

Dimensions (mm)
1. lock plate (if applied)
2. two mounting holes Ø 4.5 mm (knock out)
3. four mounting holes Ø M4 (back side)
4. cable inlet grommet (cable range Ø 5 to Ø 13 mm)
5. power element:
Style 28: Braze connection 6 mm ODM (shown)
Style 30: Braze connection 1/4" ODF
6. reset button
Fig. 13
70
25
48.5
13
61
23.5
75
122
© 2002 Johnson Controls Inc.
P78
Issue 03/04/2002
9
1
2
3
4
5
6
Order No. PD-P78-E
