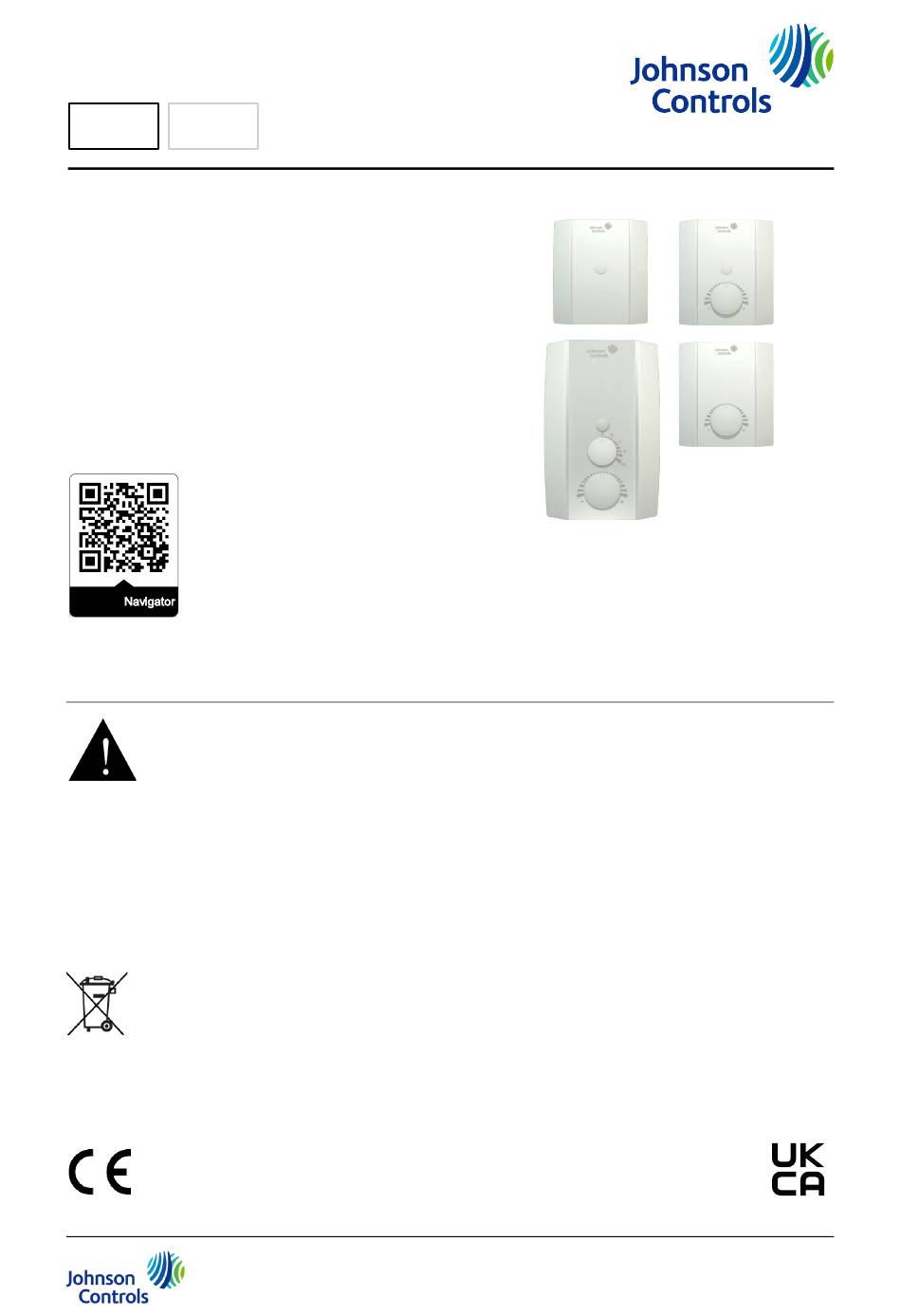

Johnson Controls STM-11 Serie Installationsanleitung

STM-11xx/ STM-21xx Series Room Module
Installation Instructions
EN DE
Application
The STM-11xx/ -21xx Series of Room Command Modules
are designed for use with field controllers. The setpoint dial
enables the room occupant to adjust the working setpoint
of the controller. On scaled models, the marked adjustment
range is -35 to +70 °C; the controller determines the actual
setpoint temperature.
adjustment range is marked +/- from midpoint of the dial;
the controller determines
temperature. With the occupancy button, the occupant can
switch the controller's operating mode between occupied
and standby. In addition, depending on the series the
devices offers the option of a temporary occupied mode
during unoccupied mode.
Solution
Security Advice
The installation and assembly of electrical equipment should only be performed by authorized
personnel.
The product should only be used for the intended application. Unauthorised modifications are
prohibited! The product must not be used in relation with any equipment that in case of a failure may
threaten, directly or indirectly, human health or life or result in danger to human beings, animals or
assets. Ensure all power is disconnected before installing. Do not connect to live/operating equipment.
Please comply with
Local laws, health & safety regulations, technical standards and regulations
•
• Condition of the device at the time of installation, to ensure safe installation
This data sheet and installation manual
•
Notes on Disposal
As a component of a large-scale fixed installation, JCI products are intended to be used permanently
as part of a building or a structure at a pre-defined and dedicated location, hence the Waste Electrical
and Electronic Act (WEEE) is not applicable. However, most of the products may contain valuable
materials that should be recycled and not disposed of as domestic waste. Please note the relevant
regulations for local disposal.
EU conformity
Johnson Controls, Inc., declares that these products are in compliance with the essential
requirements and other relevant provisions of the EMC Directive and Rohs Directive.
On heat/cooler models,
the equivalent setpoint
